BB20-MRY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8302)3B

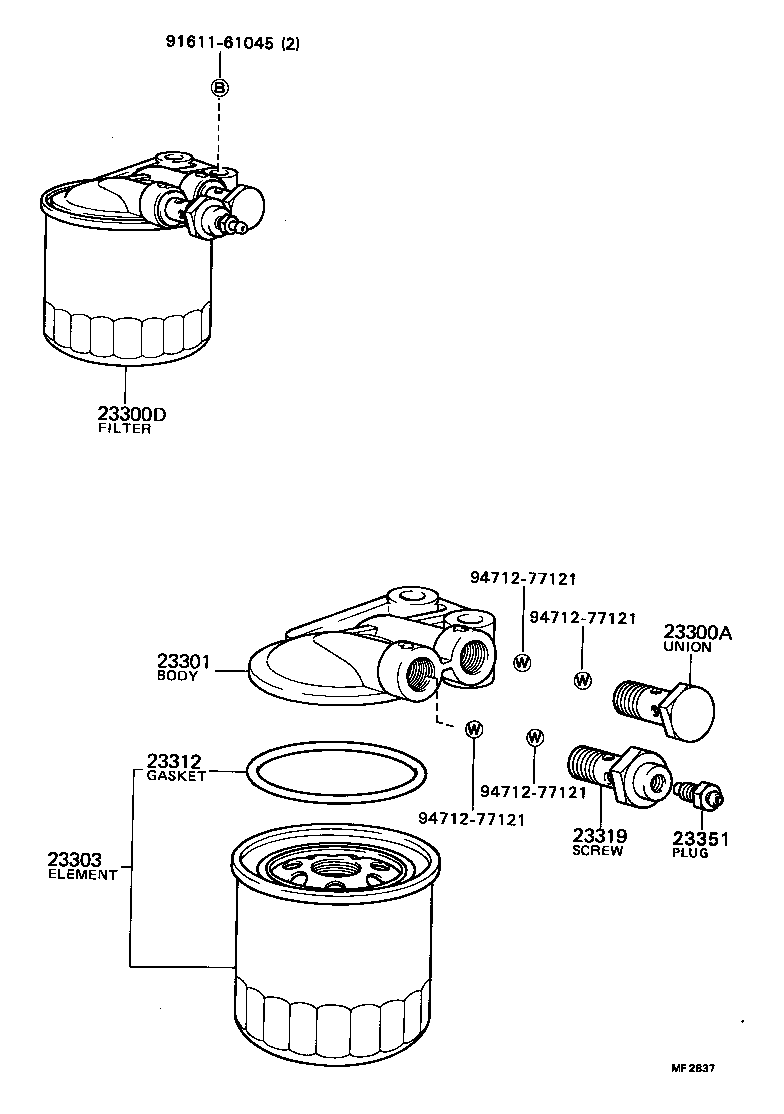

Click highlighted areas on diagram

diagram 23300A 23300D 23301 23303 23312 23319 23351 9161161045 9471277121 9471277121 9471277121 9471277121
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90401-14060

3B..BB20,30

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-56040

3B..BB20,30

 1
23301 - BODY SUB-ASSY, FUEL FILTER
23311-56040

3B..BB20,30

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-56031

3B..BB20,30

 1
23312 - GASKET, FILTER BOWL
23312-56021

3B..BB20,30

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-48010

3B..BB20,30

 1
23351 - PLUG, AIR VENT
47547-12030

3B..BB20,30

FILTER

 1
Common parts
91611-61045
94712-77121
