BB20-MRKY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

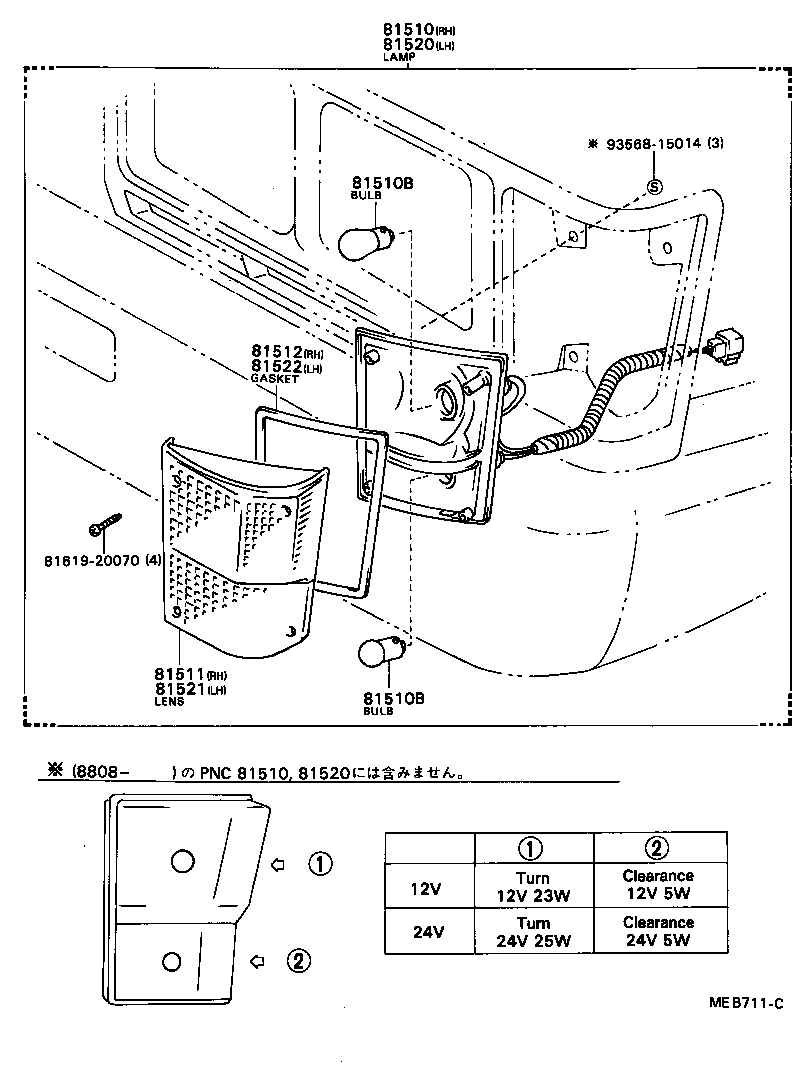

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81512 81520 81521 81522 8161920070 9356815014
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39475

BB2#,3#,HB3#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-16016

BB2#,31,HB3#,HDB20,3#,HZB3#

24V 5W,24V 5W

 2
99134-11250

BB2#,31,HB3#,HDB20,3#,HZB3#

24V 25W,24V 25W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-16016

BB2#,31,HB3#,HDB20,3#,HZB3#

24V 5W,24V 5W

 2
99134-11250

BB2#,31,HB3#,HDB20,3#,HZB3#

24V 25W,24V 25W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39475

BB2#,3#,HB3#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
Common parts
81619-20070
93568-15014
