BB20-MRKY (1982)
Toyota Coaster

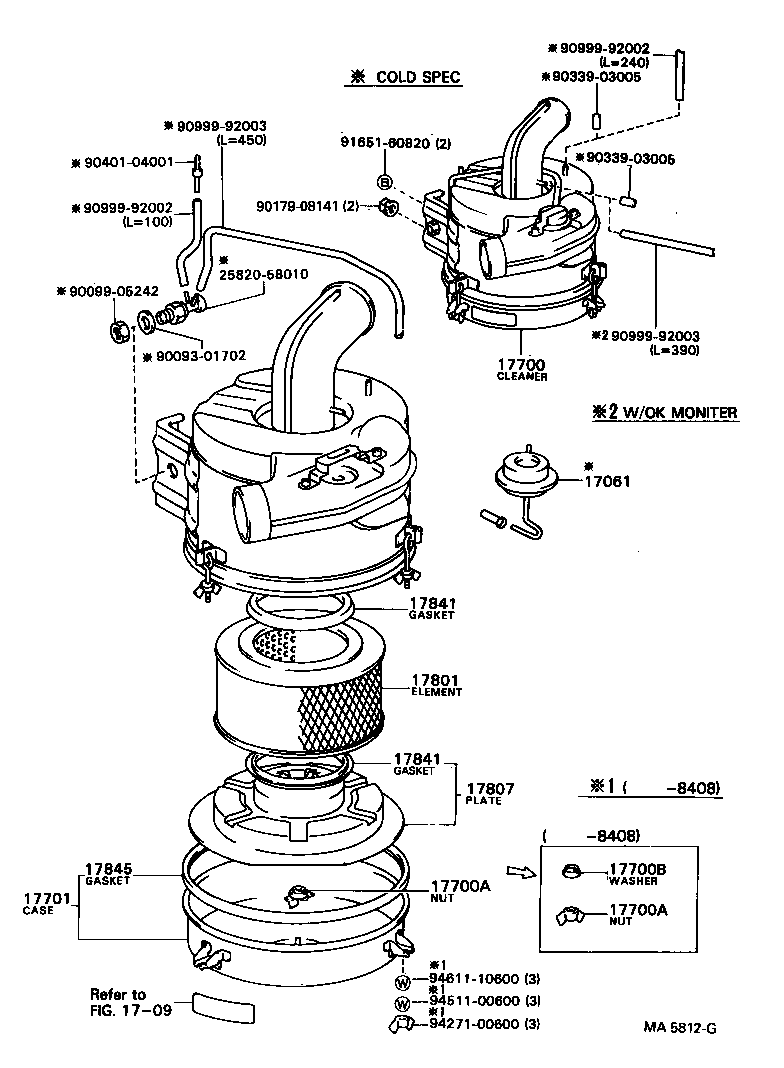

ILLUST NO. 1 OF 2(8205- )14B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58070 |
3B..BB2#,3# COLD SPEC |
1 | ||
| 17700-58050 |
3B..BB2#,3# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
3B..BB2#,3# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
3B..BB2#,3# |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08004 |
3B..BB2#,3# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-44263 |
14B,3B..BB2#,3# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56020 |
14B,3B..BB2#,3# |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56011 |
14B,3B..BB2#,3# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B,3B..BB2#,3# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B,3B..BB2#,3# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
14B,3B..BB2#,3# |
1 | ||
| Common parts | ||||
| 25820-58010 | ||||
| 90093-01702 | ||||
| 90099-05242 | ||||
| 90179-08141 | ||||
| 90339-03005 | ||||
| 90401-04001 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-60820 | ||||
| 94271-00600 | ||||
| 94511-00600 | ||||
| 94611-10600 | ||||
| Linked diagrams | ||||
| 1709 | ||||

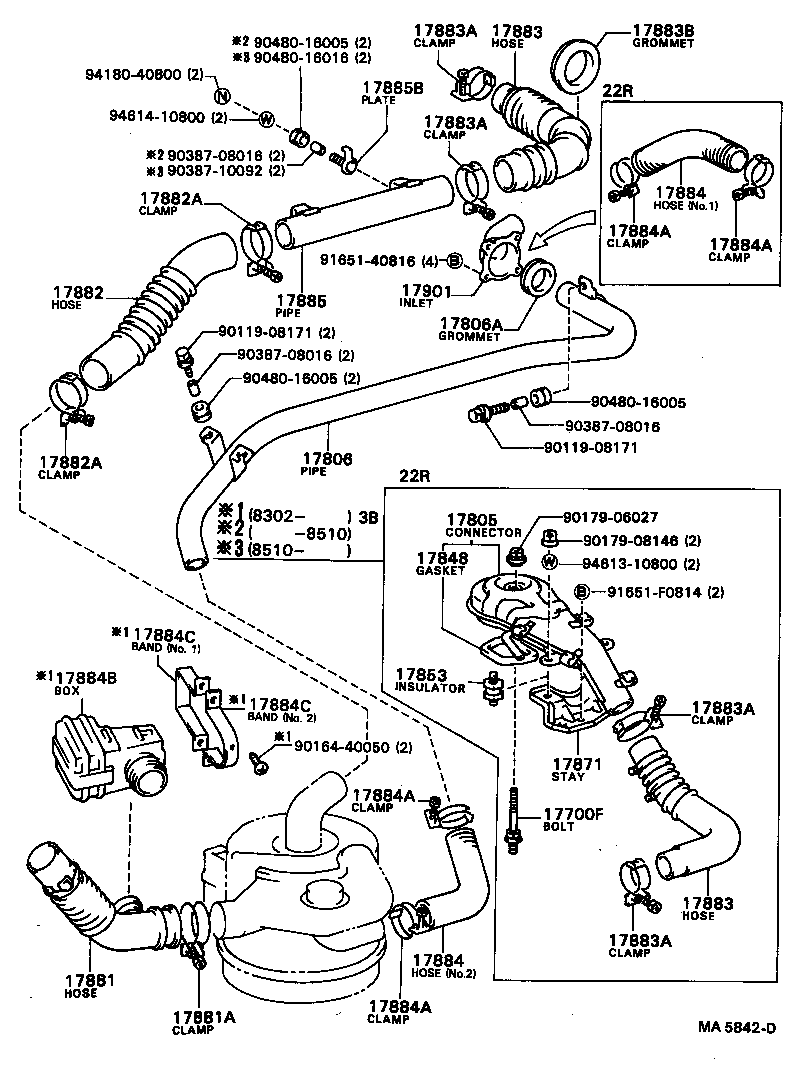

ILLUST NO. 2 OF 2(8205- )14B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 59105-90B00 |
3B..BB20,30..CBU COLD SPEC |
1 | ||
| 59105-90B00 |
3B..BB20,30..CBU COLD SPEC |
1 | ||
| 17806A - GROMMET, AIR CLEANER PIPE | ||||
| 90480-60386 |
3B..BB2#,3#..CBU COLD SPEC |
1 | ||
| 90480-60386 |
3B..BB2#,3#..CBU COLD SPEC |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 59131-90B00 |
3B..BB20,30..CBU |
1 | ||
| 59131-90B00 |
3B..BB20,30..CBU |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
14B,3B..BB2#,3#..CBU |
1 | ||
| 96111-10750 |
14B,3B..BB2#,3#..CBU |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 59132-90B02 |
14B,3B..BB2#,3#..CBU |
1 | ||
| 59132-90B02 |
14B,3B..BB2#,3#..CBU |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
14B,3B..BB2#,3#..CBU |
2 | ||
| 96111-10780 |
14B,3B..BB2#,3#..CBU |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
14B,3B..BB2#,3#..CBU |
2 | ||
| 96111-10780 |
14B,3B..BB2#,3#..CBU |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 59133-90B00 |
3B..BB20,21,26,3#..CBU |
1 | ||
| 59133-90B00 |
3B..BB20,21,26,3#..CBU |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 59133-90B00 |
3B..BB20,21,26,3#..CBU |
1 | ||
| 59133-90B00 |
3B..BB20,21,26,3#..CBU |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10710 |
3B..BB20,21,26,3#..CBU VENTURI SIDE |
1 | ||
| 96111-10710 |
3B..BB20,21,26,3#..CBU VENTURI SIDE |
1 | ||
| 96111-10780 |
3B..BB20,21,26,3#..CBU PIPE SIDE |
1 | ||
| 96111-10780 |
3B..BB20,21,26,3#..CBU PIPE SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10710 |
3B..BB20,21,26,3#..CBU VENTURI SIDE |
1 | ||
| 96111-10710 |
3B..BB20,21,26,3#..CBU VENTURI SIDE |
1 | ||
| 96111-10780 |
3B..BB20,21,26,3#..CBU PIPE SIDE |
1 | ||
| 96111-10780 |
3B..BB20,21,26,3#..CBU PIPE SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10710 |
3B..BB20,21,26,3#..CBU VENTURI SIDE |
1 | ||
| 96111-10710 |
3B..BB20,21,26,3#..CBU VENTURI SIDE |
1 | ||
| 96111-10780 |
3B..BB20,21,26,3#..CBU PIPE SIDE |
1 | ||
| 96111-10780 |
3B..BB20,21,26,3#..CBU PIPE SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10710 |
3B..BB20,21,26,3#..CBU VENTURI SIDE |
1 | ||
| 96111-10710 |
3B..BB20,21,26,3#..CBU VENTURI SIDE |
1 | ||
| 96111-10780 |
3B..BB20,21,26,3#..CBU PIPE SIDE |
1 | ||
| 96111-10780 |
3B..BB20,21,26,3#..CBU PIPE SIDE |
1 | ||
| 17883B - GROMMET, AIR CLEANER HOSE | ||||
| 90950-01349 |
3B..BB2#,3#..CBU |
1 | ||
| 90950-01349 |
3B..BB2#,3#..CBU |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10600 |
14B,3B..BB2#,3#..CBU COLD SPEC |
2 | ||
| 96111-10600 |
14B,3B..BB2#,3#..CBU COLD SPEC |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10600 |
14B,3B..BB2#,3#..CBU COLD SPEC |
2 | ||
| 96111-10600 |
14B,3B..BB2#,3#..CBU COLD SPEC |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10600 |
14B,3B..BB2#,3#..CBU COLD SPEC |
2 | ||
| 96111-10600 |
14B,3B..BB2#,3#..CBU COLD SPEC |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10600 |
14B,3B..BB2#,3#..CBU COLD SPEC |
2 | ||
| 96111-10600 |
14B,3B..BB2#,3#..CBU COLD SPEC |
2 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 59101-90B00 |
14B,3B..BB2#,3#..CBU |
1 | ||
| 59101-90B00 |
14B,3B..BB2#,3#..CBU |
1 | ||
| 17885B - PLATE, PIPE SUPPORT | ||||
| 59117-90B00 |
3B..BB2#,3#..CBU |
2 | ||
| 59117-90B00 |
3B..BB2#,3#..CBU |
2 | ||
| 17901 - INLET SUB-ASSY, HOT AIR | ||||
| 58257-90B00 |
14B,3B..BB2#,3#..CBU COLD SPEC |
1 | ||
| 58257-90B00 |
14B,3B..BB2#,3#..CBU COLD SPEC |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90164-40050 | ||||
| 90179-06027 | ||||
| 90179-08146 | ||||
| 90387-08016 | ||||
| 90387-10092 | ||||
| 90480-16005 | ||||
| 90480-16016 | ||||
| 91651-40816 | ||||
| 91651-F0814 | ||||
| 94180-40800 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
