BB20-MDZY (1982)
Toyota Coaster

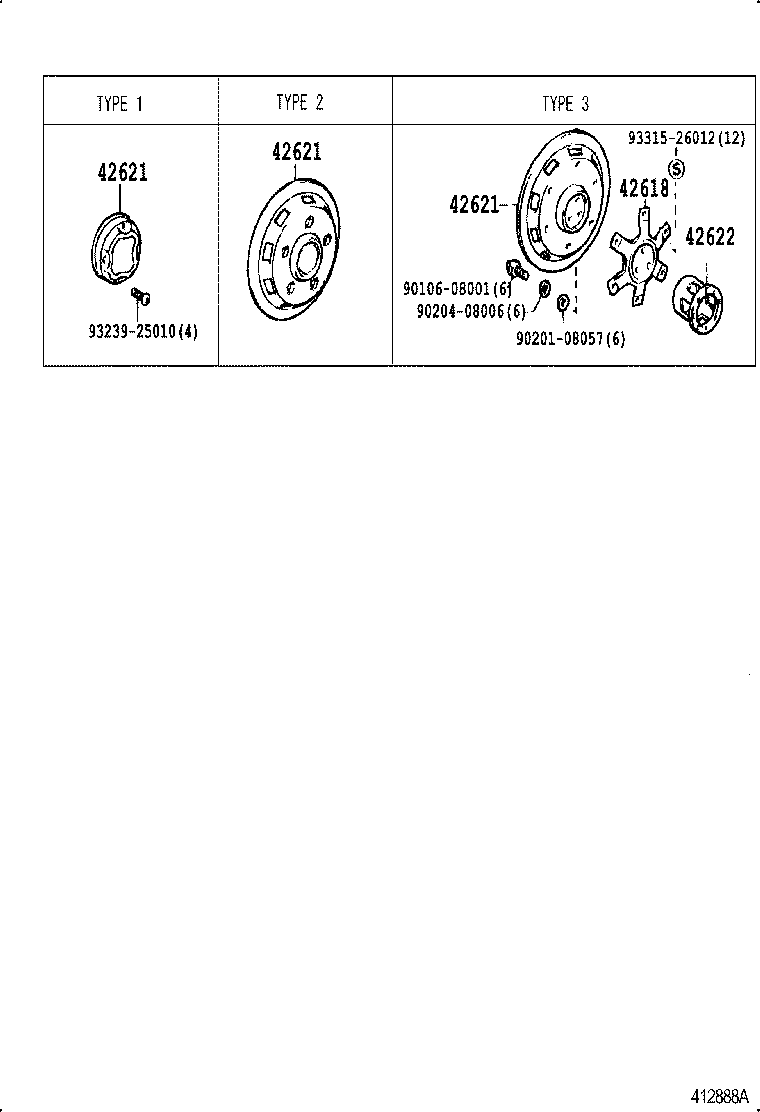

ILLUST NO. 2 OF 2(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42621 - CAP, WHEEL | ||||
| 42621-36100 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# TYPE 1 |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-36100 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# TYPE 1 |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-36100 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# TYPE 1 |
4 | ||
| Common parts | ||||
| 90106-08001 | ||||
| 90201-08057 | ||||
| 90204-08006 | ||||
| 93239-25010 | ||||
| 93315-26012 | ||||

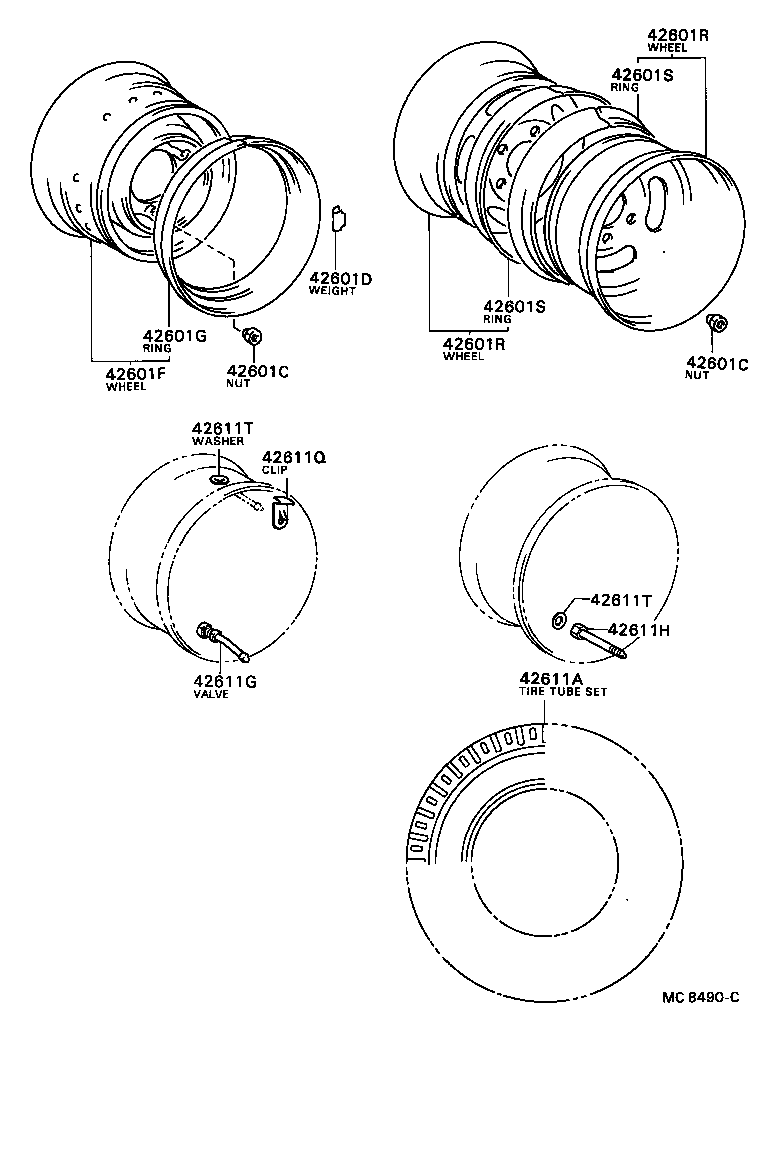

ILLUST NO. 1 OF 2(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 42633-55030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# RR,RH |
5 | ||
| 90942-01024 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# FR,LH |
5 | ||
| 42634-55030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# RR,LH |
5 | ||
| 90942-01023 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# FR,RH |
5 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 42633-55030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# RR,RH |
5 | ||
| 90942-01024 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# FR,LH |
5 | ||
| 42634-55030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# RR,LH |
5 | ||
| 90942-01023 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# FR,RH |
5 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03045 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# 20G,20G |
1 | ||
| 90942-03051 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# 80G,80G |
1 | ||
| 90942-03050 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# 30G,30G |
1 | ||
| 90942-03053 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# 100G,100G |
1 | ||
| 90942-03047 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# 40G,40G |
1 | ||
| 90942-03052 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# 50G,50G |
1 | ||
| 90942-03064 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# 70G,70G |
1 | ||
| 90942-03049 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# 60G,60G |
1 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42610-36240 |
BB2#,3#,HB30,36,HZB30,36,RB2# 5.50−16,5.50-16 |
3 | ||
| 42601G - RING, DISC WHEEL SIDE (FOR FRONT) | ||||
| 42613-36080 |
BB2#,3#,HB3#,RB2#..5F |
3 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42610-36240 |
BB2#,3#,HB30,36,HZB30,36,RB2# 5.50−16,5.50-16 |
4 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42610-36240 |
BB2#,3#,HB30,36,HZB30,36,RB2# 5.50−16,5.50-16 |
4 | ||
| 42601S - RING, DISC WHEEL SIDE (FOR REAR) | ||||
| 42613-36080 |
BB20,21,26,3#,HB30,31,36,RB2#..5F |
4 | ||
| 42601S - RING, DISC WHEEL SIDE (FOR REAR) | ||||
| 42613-36080 |
BB20,21,26,3#,HB30,31,36,RB2#..5F |
4 | ||
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42605-36200 |
BB2#,RB20 FR,6.50-16-18,RIB |
3 | ||
| 42605-36180 |
BB20,21,26,3# *(B),FR,6.50R16-10 |
3 | ||
| 42605-36170 |
BB2#,RB20 FR & RR,6.50R16-8 |
7 | ||
| 98961-65165 |
BB2#,3# FR,6.50-16-10,RIB |
3 | ||
| 98961-65163 |
BB2#,3#,RB20 RR,6.50-16-6,RIB |
4 | ||
| 42605-36240 |
BB2#,3# *(T),FR,6.50R16-10 |
3 | ||
| 42611Q - CLIP (FOR TUBE) | ||||
| 90468-10014 |
BB2#,3#,HB3#,RB2# FR |
3 | ||
| 42611T - WASHER (FOR TUBE) | ||||
| 90201-11009 |
BB2#,3#,HB3#,RB2# FR |
3 | ||
| 42611T - WASHER (FOR TUBE) | ||||
| 90201-11009 |
BB2#,3#,HB3#,RB2# FR |
3 | ||
