BB20-MDY (1982)
Toyota Coaster

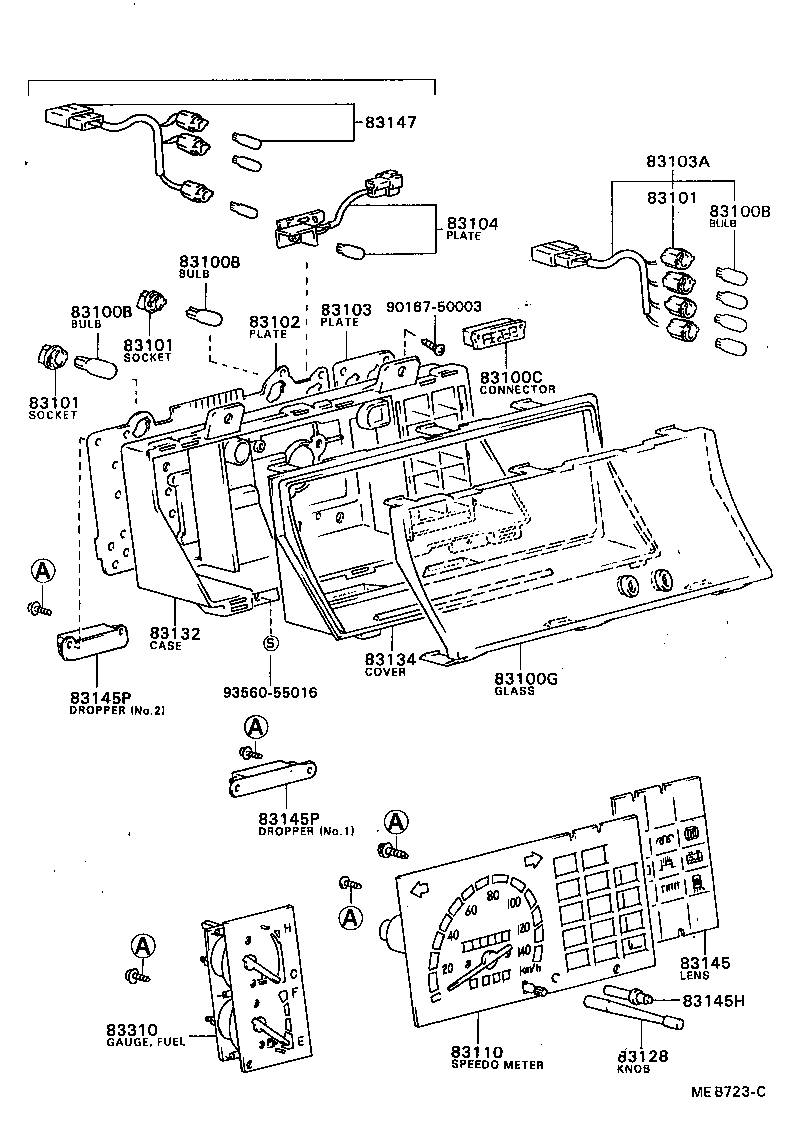

ILLUST NO. 1 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99134-12030 |
BB2#,3#,HB3# 24V 3W,24V 3W |
1 | ||
| 90981-11022 |
BB2#,3#,HB3#,HDB20,3#,HZB3# 24V 1.4W,24V 1.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99134-12030 |
BB2#,3#,HB3# 24V 3W,24V 3W |
1 | ||
| 90981-11022 |
BB2#,3#,HB3#,HDB20,3#,HZB3# 24V 1.4W,24V 1.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99134-12030 |
BB2#,3#,HB3# 24V 3W,24V 3W |
1 | ||
| 90981-11022 |
BB2#,3#,HB3#,HDB20,3#,HZB3# 24V 1.4W,24V 1.4W |
1 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB2#,3#,HB3#,HDB20,3#,HZB3# 24V 1.4W |
1 | ||
| 83101-89101 |
BB2#,3#,HB3#,HDB20,3#,HZB3# 24V 3W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB2#,3#,HB3#,HDB20,3#,HZB3# 24V 1.4W |
1 | ||
| 83101-89101 |
BB2#,3#,HB3#,HDB20,3#,HZB3# 24V 3W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB2#,3#,HB3#,HDB20,3#,HZB3# 24V 1.4W |
1 | ||
| 83101-89101 |
BB2#,3#,HB3#,HDB20,3#,HZB3# 24V 3W |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-90B00 |
BB2#,3#,HB3# |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-90B04 |
BB2#,3#,HB3# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-90B01 |
BB20,21,30,31,HB30 W/*AUD OR *EB |
1 | ||
| 83110-90B00 |
BB2#,3#,RB2# |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-90B00 |
BB2#,3#,HB30,36,RB2# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-90B00 |
BB2#,3#,HB30,RB20 |
1 | ||
| 83145P - DROPPER, METER | ||||
| 83340-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3# NO.1 |
1 | ||
| 83340-90B01 |
BB2#,3#,HB30 NO.2 |
1 | ||
| 83145P - DROPPER, METER | ||||
| 83340-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3# NO.1 |
1 | ||
| 83340-90B01 |
BB2#,3#,HB30 NO.2 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-90B00 |
BB2#,3#,HB30 |
1 | ||
| Common parts | ||||
| 90167-50003 | ||||
| 93560-55016 | ||||
ILLUST NO. 3 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-90B00 |
BB2#,3#,RB2# |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-12230 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3# |
1 | ||
| 83917 - SPACER, CLOCK | ||||
| 83917-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| Common parts | ||||
| 90183-04006 | ||||
| 93560-54012 | ||||

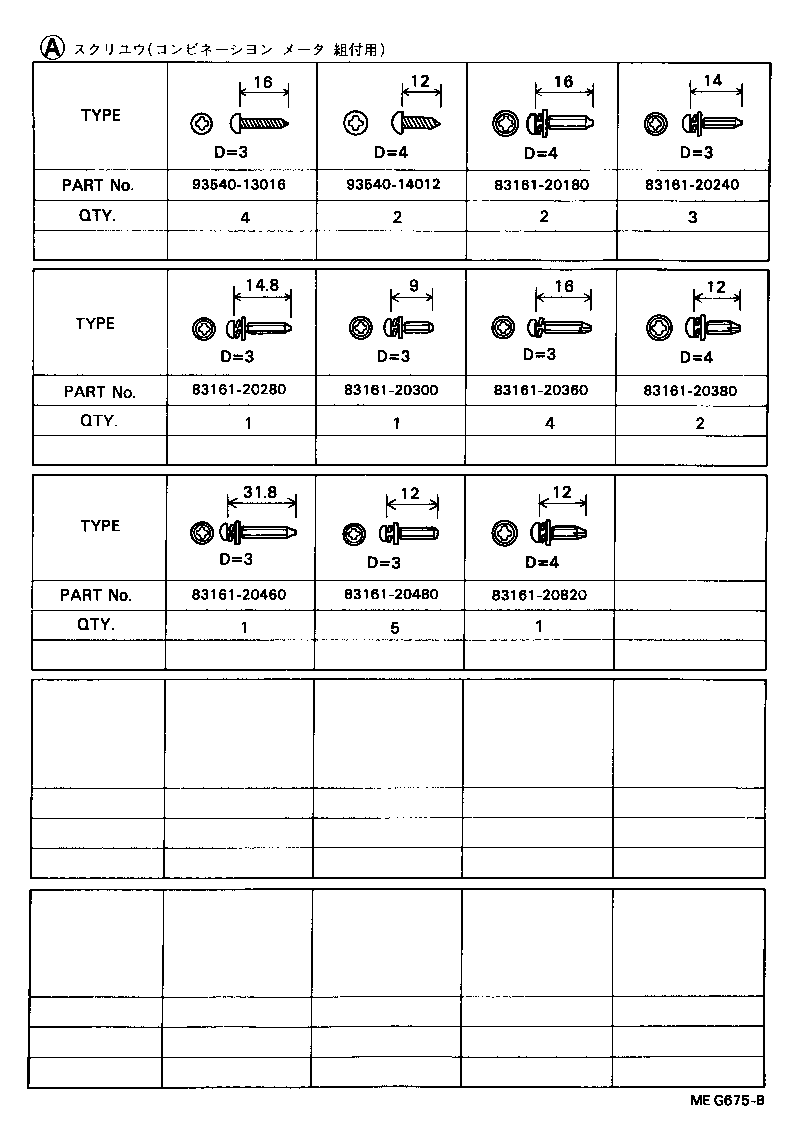

ILLUST NO. 2 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83161-20180 | ||||
| 83161-20240 | ||||
| 83161-20280 | ||||
| 83161-20300 | ||||
| 83161-20360 | ||||
| 83161-20380 | ||||
| 83161-20460 | ||||
| 83161-20480 | ||||
| 83161-20820 | ||||
| 93540-13016 | ||||
| 93540-14012 | ||||
ILLUST NO. 4 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
| 83791-90B01 | ||||
| 83791-90B02 | ||||
| 83791-90B04 | ||||
| 83791-90B05 | ||||
| 83791-90B06 | ||||
| 90119-08667 | ||||
| 90170-08204 | ||||
| 90461-08008 | ||||
| 90461-08385 | ||||
| 90461-08498 | ||||
| 90461-08581 | ||||
| 90461-10101 | ||||
| 90461-10292 | ||||
| 90461-10857 | ||||
| 90461-10875 | ||||
| 90463-08207 | ||||
| 90463-08375 | ||||
| 90464-00209 | ||||
| 91651-40616 | ||||
| 91651-60820 | ||||
| 94110-50800 | ||||
