BB20-MDY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8510)DLX,EX,EXS

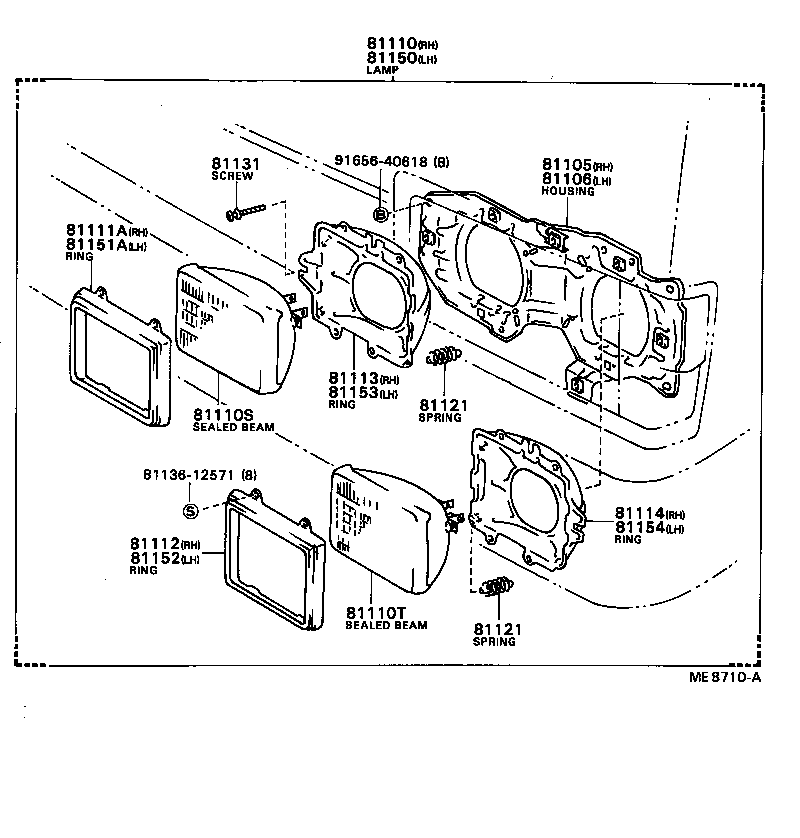

Click highlighted areas on diagram

diagram 81105 81106 81110 81110S 81110T 81111A 81112 81113 81114 81121 81121 81131 8113612571 81150 81151A 81152 81153 81154 9165640618
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-90B04

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-90B04

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG

 1
81110 - HEADLAMP ASSY, RH
81110-80229

BB2#,3#,HB3#..DLX,EX,EXS

 1
81110S - SEALED BEAM UNIT, NO.1
90981-10001

BB2#,3#,HB3#..DLX,EX,EXS

24V 55W,*WB,24V 55W

 2
81110T - SEALED BEAM UNIT, NO.2
90981-10002

BB2#,3#,HB3#..DLX,EX,EXS

24V 50/65W,*WB,24V 50/65W

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20360

BB2#,3#,HB3#,RB2#..DLX,EX,EXS

 1
81112 - RING, SEALED BEAM RETAINING, NO.2 RH
81111-20360

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-20360

BB20,30,HB30,RB20..DLX,EX,EXS

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-30430

BB20,30,HB30,RB20..DLX,EX,EXS

 1
81121 - SPRING, HEADLAMP TENSION
81121-14320

BB2#,3#,HB3#,RB2#..DLX,EX,EXS

 4
81121 - SPRING, HEADLAMP TENSION
81121-14320

BB2#,3#,HB3#,RB2#..DLX,EX,EXS

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-20360

BB2#,3#,HB3#,RB2#..DLX,EX,EXS

 8
81150 - HEADLAMP ASSY, LH
81150-80226

BB2#,3#,HB3#..DLX,EX,EXS

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20360

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG

 1
81152 - RING, SEALED BEAM RETAINING, NO.2 LH
81111-20360

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-20320

BB20,30,HB30,RB20..DLX,EX,EXS

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-30540

BB20,30,HB30,RB20..DLX,EX,EXS

 1
Common parts
81136-12571
91656-40618
