BB20-MDY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8205- )

Click highlighted areas on diagram

diagram 4561914010 78111 78117 78117 78120 78120B 78120B 78120E 78127 78189 78410 9165140614 9165140620 9411040800 9616000600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78010-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06008

BB2#,3#,HB3#,HDB20,3#,HZB3#

W/*EB

 1
90541-11001

BB20,21,26,3#,RB2#

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06008

BB2#,3#,HB3#,HDB20,3#,HZB3#

W/*EB

 1
90541-11001

BB20,21,26,3#,RB2#

 1
78120 - ROD, ACCELERATOR LINK
78120-90B04

BB2#,3#,HB3#..DLX,EX,EXS

W/*EB,ACCELERATOR INTER LOCK

 1
78120-90B00

BB20,21,26,36,RB2#..10S,26S

 1
78120-90B01

BB20,21,23,26,3#,HB30,31,36,HDB30,HZB30,36..(DLX,STD)..(10S,26S,29S)

W/*EB

 1
78120B - BUSH (FOR ACCELERATOR LINK ROD)
90386-08155

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
78120B - BUSH (FOR ACCELERATOR LINK ROD)
90386-08155

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD)
90508-26042

BB2#,3#,HB3#,RB2#

 1
78127 - BUSH, ACCELERATOR PEDAL, NO.2
78127-20010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
91131-40865

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
Common parts
45619-14010
91651-40614
91651-40620
94110-40800
96160-00600

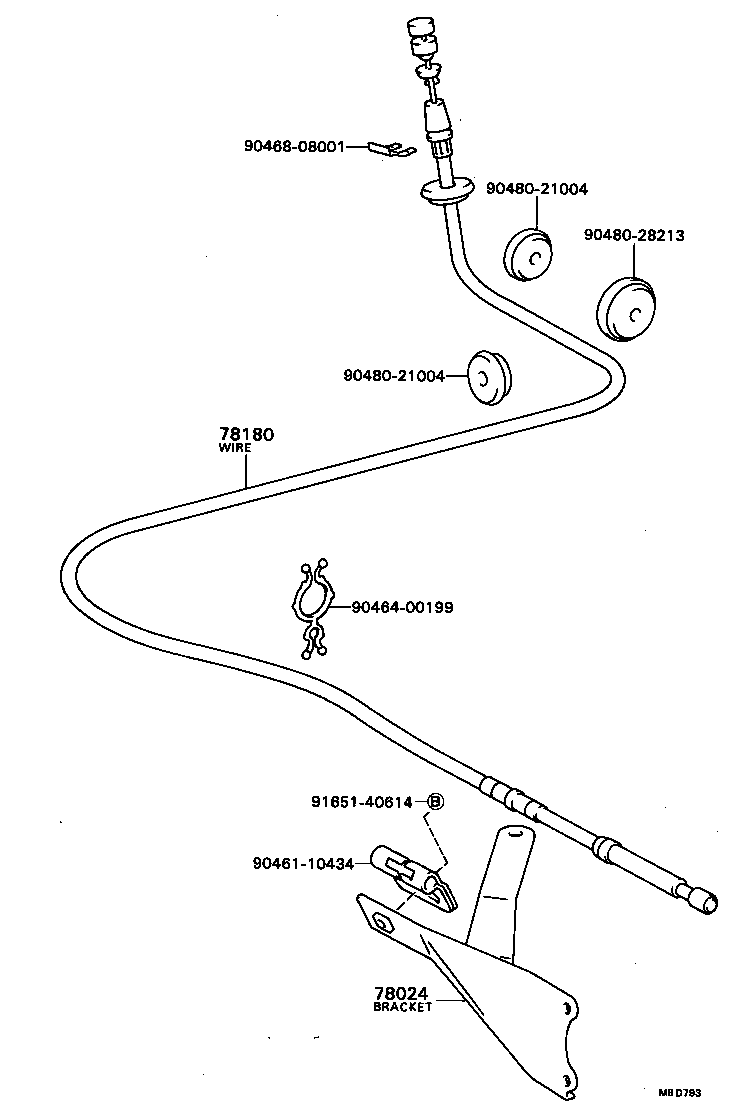

ILLUST NO. 2 OF 2(8205-8302)BB20,30

Click highlighted areas on diagram

diagram 78024 78180 9046110434 9046400199 9046808001 9048021004 9048021004 9048028213 9165140614
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-90B00

BB20,30

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90B00

BB20,30

 1
Common parts
90461-10434
90464-00199
90468-08001
90480-21004
90480-28213
91651-40614
