BB20-MDY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8205-8302)

Click highlighted areas on diagram

diagram 6765 77018 77018 77022A 77022A 77022A 77022A 77022A 77022A 77100 77100A 77100B 77121 77201A 77206 77206G 77308 77308A 77308B 77611 77611 77611A 77611A 77612 77651 9046110231 9046110231 9097702001 9161140816 9161140816 9161140820 9165140612 9165140616 9165161025 9331914010 9411041000 9411051000 9412041000 9461211001 9613230600 9613230800
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36110

BB2#,3#,HB3#

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36110

BB2#,3#,HB3#

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BB20,30,HB30,RB20

*H,L=340

 1
95332-08060

BB2#,3#,HB3#,RB2#

*H,L=460,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BB20,30,HB30,RB20

*H,L=340

 1
95332-08060

BB2#,3#,HB3#,RB2#

*H,L=460,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BB20,30,HB30,RB20

*H,L=340

 1
95332-08060

BB2#,3#,HB3#,RB2#

*H,L=460,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BB20,30,HB30,RB20

*H,L=340

 1
95332-08060

BB2#,3#,HB3#,RB2#

*H,L=460,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BB20,30,HB30,RB20

*H,L=340

 1
95332-08060

BB2#,3#,HB3#,RB2#

*H,L=460,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BB20,30,HB30,RB20

*H,L=340

 1
95332-08060

BB2#,3#,HB3#,RB2#

*H,L=460,内径=7.6

 2
77100 - TANK ASSY, FUEL
77001-36390

BB20,30,HB30

 1
77100A - PLUG(FOR FUEL TANK)
90341-20003

BB2#,3#,HB3#,RB2#

 1
77100B - GASKET(FOR FUEL TANK)
90430-20006

BB2#,3#,HB3#,RB2#

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

BB20,21,26,3#,HB30,31,36

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
95332-08040

BB2#,3#,HB3#,RB2#

*H,L=320,内径=7.6

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77203-36090

BB20,30,HB30

 1
77206G - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-14020

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77305-90B00

BB2#,3#,HB3#,HDB20,30,HZB3#,RB2#

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05080

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 3
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
90508-23058

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
77611 - BAND, FUEL TANK
77601-36110

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

LWR

 2
77603-36070

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

UPR

 2
77611 - BAND, FUEL TANK
77601-36110

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

LWR

 2
77603-36070

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

UPR

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 4
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-36040

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36090

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
Common parts
90461-10231
90977-02001
91611-40816
91611-40820
91651-40612
91651-40616
91651-61025
93319-14010
94110-41000
94110-51000
94120-41000
94612-11001
96132-30600
96132-30800
Linked diagrams
6765

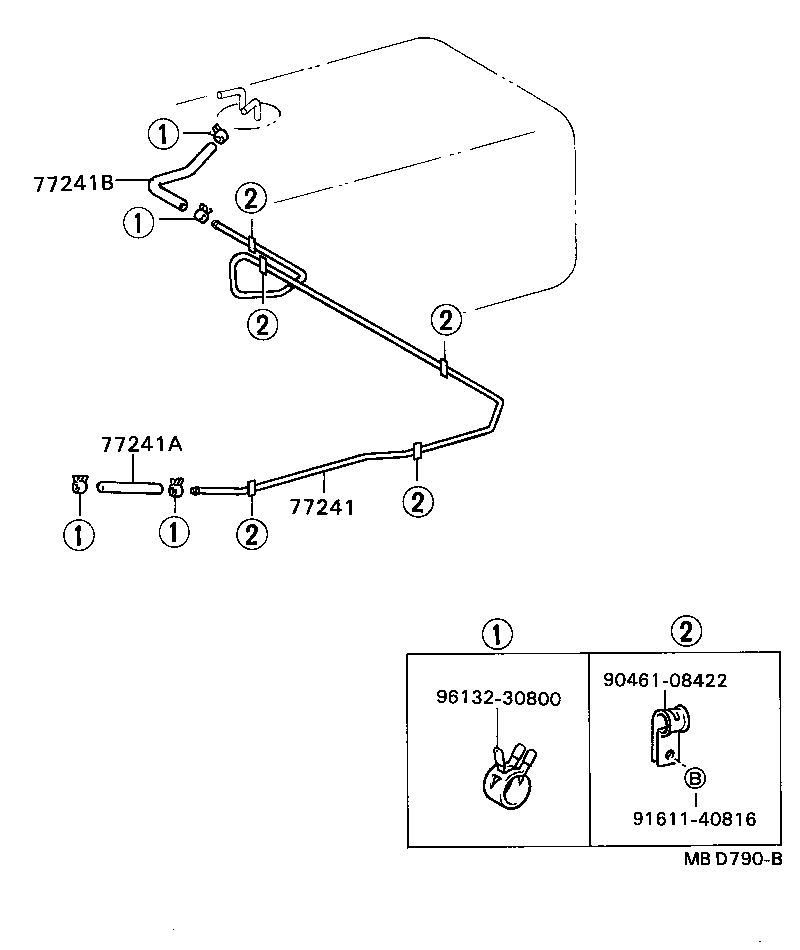

ILLUST NO. 2 OF 2(8205-8302)BB20,30

Click highlighted areas on diagram

diagram 77241 77241A 77241B 9046108422 9161140816 9613230800
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77252-36181

BB20,30

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08030

BB2#,3#

*H,L=300,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08040

BB20,30,HB30,RB20

*H,L=360,内径=7.6

 1
Common parts
90461-08422
91611-40816
96132-30800
