BB20-MDY (1982)

Toyota Coaster

Production May 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

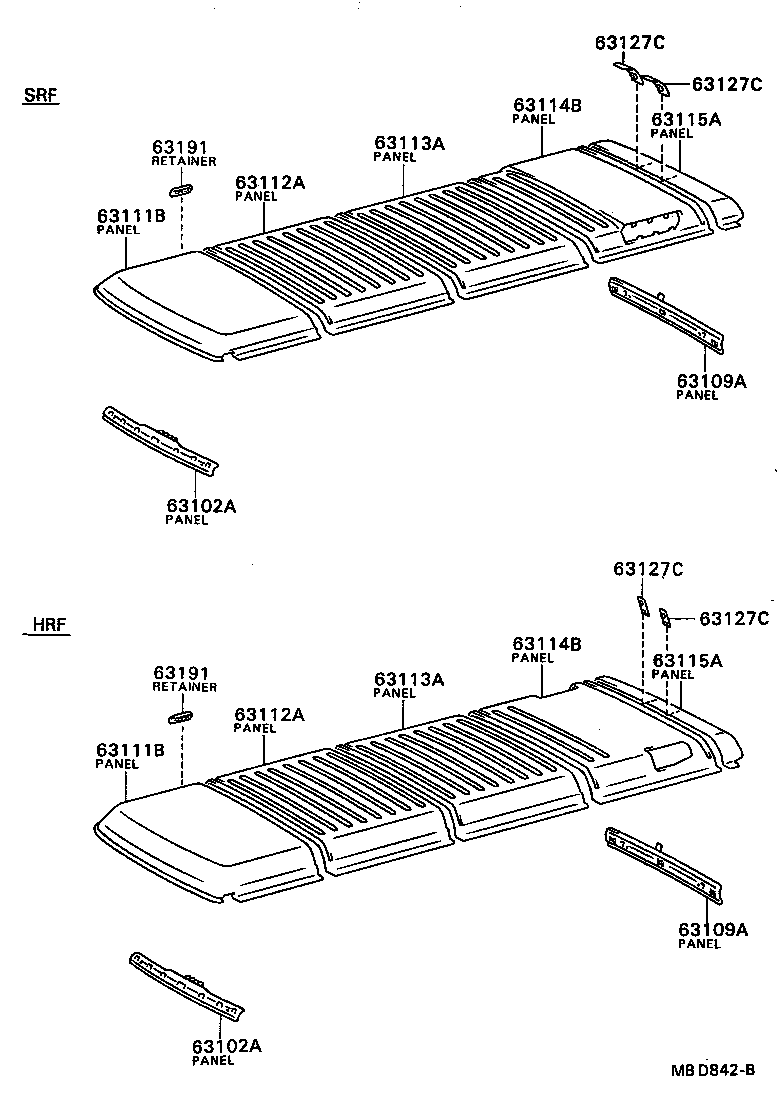

ILLUST NO. 1 OF 3(8205- )BB2#,RB2#

Click highlighted areas on diagram

diagram 63102A 63102A 63109A 63109A 63111B 63111B 63112A 63112A 63113A 63113A 63114B 63114B 63115A 63115A 63127C 63127C 63127C 63127C 63191 63191
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-90B01

BB20,21,30,31,HB30,RB20..SRF

W/CLOCK

 1
63102-90B00

BB20,21,23,26,3#,HB30,31,36,RB2#..DLX,STD

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-90B01

BB20,21,30,31,HB30,RB20..SRF

W/CLOCK

 1
63102-90B00

BB20,21,23,26,3#,HB30,31,36,RB2#..DLX,STD

 1
63111B - PANEL, ROOF, NO.1
63014-90B00

BB20,30,HB30,RB20..SRF

W/ANTENNA

 1
63111B - PANEL, ROOF, NO.1
63014-90B00

BB20,30,HB30,RB20..SRF

W/ANTENNA

 1
63112A - PANEL, ROOF, NO.2
63112-90B00

BB20,21,30,31,HB30,RB20..SRF

 1
63112A - PANEL, ROOF, NO.2
63112-90B00

BB20,21,30,31,HB30,RB20..SRF

 1
63113A - PANEL, ROOF, NO.3
63112-90B00

BB20,21,30,31,HB30,RB20..SRF

 1
63113A - PANEL, ROOF, NO.3
63112-90B00

BB20,21,30,31,HB30,RB20..SRF

 1
63114B - PANEL, ROOF, NO.4
63018-90B00

BB20,21,RB20..SRF..WOC

 1
63114B - PANEL, ROOF, NO.4
63018-90B00

BB20,21,RB20..SRF..WOC

 1
63115A - PANEL, ROOF, NO.5
63117-90B03

BB20,21,RB20..DLX..SRF

 1
63115A - PANEL, ROOF, NO.5
63117-90B03

BB20,21,RB20..DLX..SRF

 1

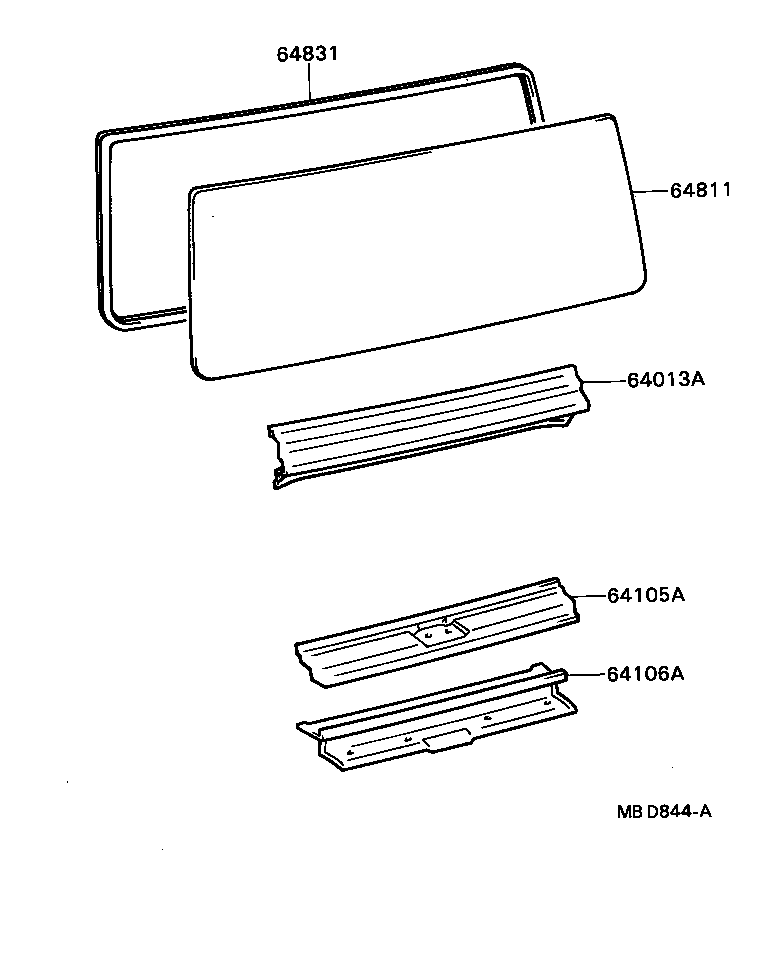

ILLUST NO. 2 OF 3(8205- )20S,26S,29S

Click highlighted areas on diagram

diagram 64013A 64105A 64106A 64811 64831
Part # Description Qty Price
64013A - RAIL SUB-ASSY, BACK
64013-90B01

BB2#,3#,HB30,RB20..DLX,EX,EXS

W/FOLDING SEAT OR W/O RR SEAT

 1
64013-90B03

BB20,21,23,30,31,HB30,31,RB20..DLX

 1
64105A - RAIL SUB-ASSY, LOWER BACK, OUTER
64105-90B00

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 1
64106A - RAIL SUB-ASSY, LOWER BACK, INNER
64106-90B00

BB20,21,30,31,HB30,31,RB20..20S,26S,29S

 1
64811 - GLASS, BACK WINDOW
64811-90B01

BB20,21,23,30,31,HB30,31,RB20..DLX

*TT,厚さ=4.0,*TT,T=4.0

 1
64811-90B02

BB20,21,23,24,30,31,HB30,31,32..DLX,EX,EXS

*EHTT,厚さ=4.0,*EHTT,T=4.0

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-90B00

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 1
