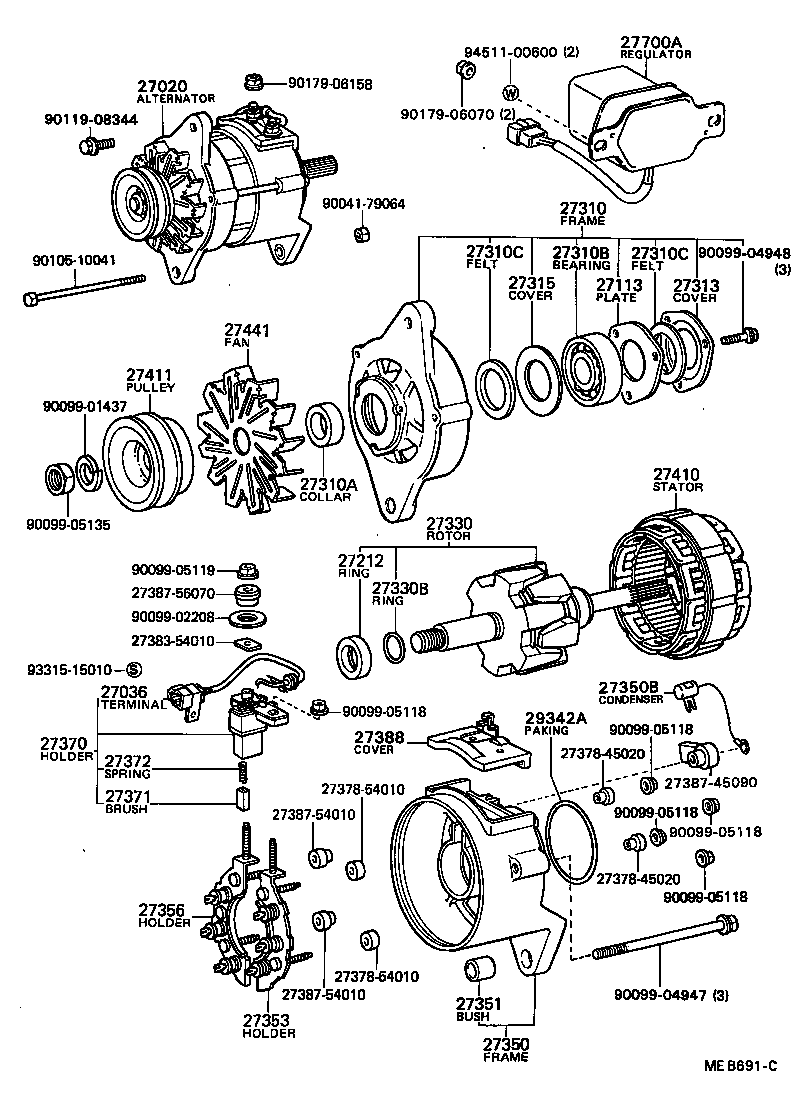

BB20-MDY (1982)
Toyota Coaster
(8205-8808)3B..WOC
24V 20A, 25A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56120 |
3B..BB2#,3#..WOC 24V 40A |
1 | ||
| 27020-56230 |
3B..BB2#,3#..DLX..WOC 24V 25A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-57080 |
3B..BB2#,3#..DLX..WOC 24V 25A |
1 | ||
| 27036-57110 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27312-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27412-54040 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56120 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310-56110 |
3B..BB20,21,26,3#..DLX..WOC 24V 25A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 90099-19251 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 90099-10137 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
2 | ||
| 90099-02209 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
2 | ||
| 90099-02209 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
2 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27315-57060 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-68050 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27330-56110 |
3B,2H..BB2#,3#,HB30,36..DLX..WOC 24V 25A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 90099-07108 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56120 |
3B..BB2#,3# 24V 40A,55A |
1 | ||
| 27350-56110 |
3B..BB2#,3#..DLX..WOC 24V 25A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52074 |
3B..BB2#,3#..WOC 24V 20A,25A |
1 | ||
| 90099-52082 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27351-56013 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-54020 |
3B,2H..BB2#,3#,HB30..WOC 24V 20A,25A |
1 | ||
| 27353-56080 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54020 |
3B,2H..BB2#,3#,HB30..WOC 24V 20A,25A |
1 | ||
| 27356-56080 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-57110 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27370-57080 |
3B..BB2#,3#..DLX..WOC 24V 25A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 20A,25A,40A,55A,85A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 20A,25A,40A,55A,85A |
2 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-57060 |
3B..BB2#,3#..WOC 24V 20A,25A |
1 | ||
| 27388-57110 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-57020 |
3B,2H..BB2#,3#,HB30..DLX..WOC 24V 25A,55A |
1 | ||
| 27410-56080 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-56121 |
3B..BB2#,3# 24V 40A,55A |
1 | ||
| 27411-56210 |
3B..BB2#,3#..WOC 24V 20A,25A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27441-57030 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57070 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A,40A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
12HT,3B,2H..BB20,21,26,3#,HB3# 24V 20A,25A,40A,55A,85A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90041-79064 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90105-10041 | ||||
| 90119-08344 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 93315-15010 | ||||
| 94511-00600 | ||||

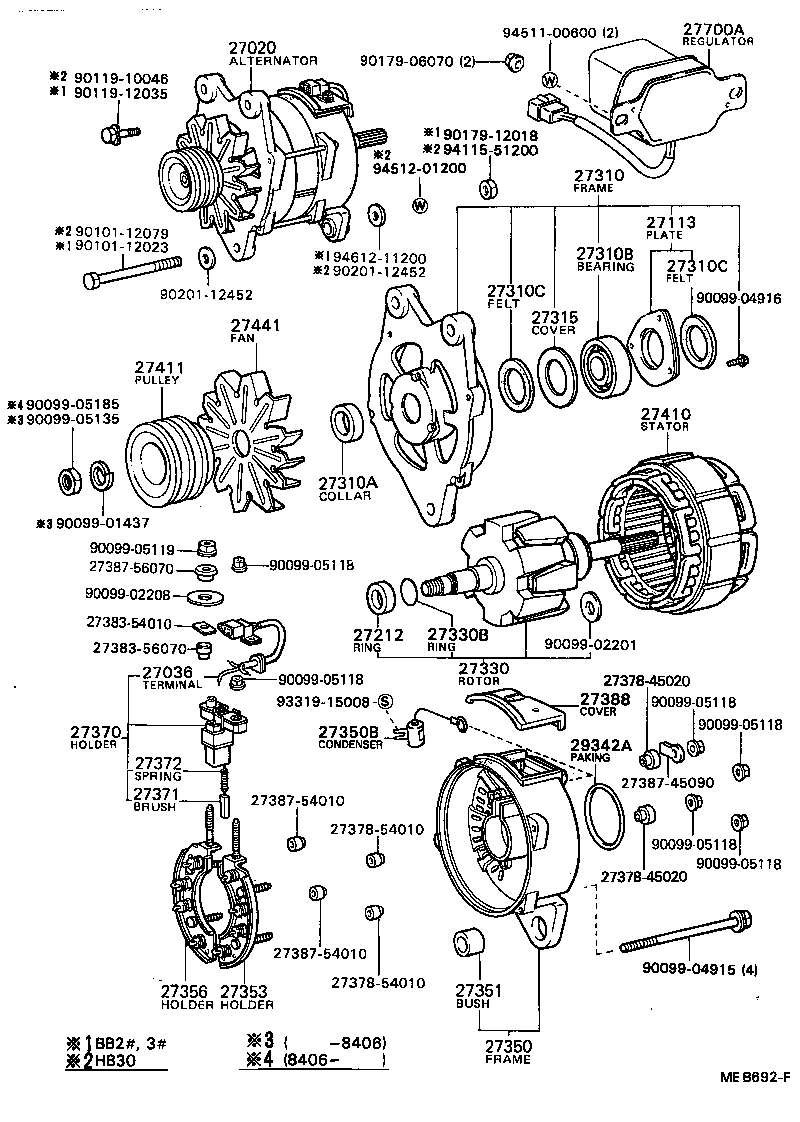

(8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC
24V 40A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56120 |
3B..BB2#,3#..WOC 24V 40A |
1 | ||
| 27020-56230 |
3B..BB2#,3#..DLX..WOC 24V 25A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-57080 |
3B..BB2#,3#..DLX..WOC 24V 25A |
1 | ||
| 27036-57110 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27312-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27412-54040 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56120 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310-56110 |
3B..BB20,21,26,3#..DLX..WOC 24V 25A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 90099-19251 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 90099-10137 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
2 | ||
| 90099-02209 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
2 | ||
| 90099-02209 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
2 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27315-57060 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-68050 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27330-56110 |
3B,2H..BB2#,3#,HB30,36..DLX..WOC 24V 25A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 90099-07108 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56120 |
3B..BB2#,3# 24V 40A,55A |
1 | ||
| 27350-56110 |
3B..BB2#,3#..DLX..WOC 24V 25A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52074 |
3B..BB2#,3#..WOC 24V 20A,25A |
1 | ||
| 90099-52082 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A |
1 | ||
| 27351-56013 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-54020 |
3B,2H..BB2#,3#,HB30..WOC 24V 20A,25A |
1 | ||
| 27353-56080 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54020 |
3B,2H..BB2#,3#,HB30..WOC 24V 20A,25A |
1 | ||
| 27356-56080 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-57110 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27370-57080 |
3B..BB2#,3#..DLX..WOC 24V 25A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 20A,25A,40A,55A,85A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
12HT,3B,2H..BB2#,3#,HB3# 24V 20A,25A,40A,55A,85A |
2 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-57060 |
3B..BB2#,3#..WOC 24V 20A,25A |
1 | ||
| 27388-57110 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-57020 |
3B,2H..BB2#,3#,HB30..DLX..WOC 24V 25A,55A |
1 | ||
| 27410-56080 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-56121 |
3B..BB2#,3# 24V 40A,55A |
1 | ||
| 27411-56210 |
3B..BB2#,3#..WOC 24V 20A,25A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A |
1 | ||
| 27441-57030 |
12HT,3B,2H..BB2#,3#,HB3# 24V 40A,55A,85A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57070 |
3B,2H..BB2#,3#,HB30,36..WOC 24V 20A,25A,40A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
12HT,3B,2H..BB20,21,26,3#,HB3# 24V 20A,25A,40A,55A,85A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27383-56070 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02201 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-05185 | ||||
| 90101-12023 | ||||
| 90101-12079 | ||||
| 90119-10046 | ||||
| 90119-12035 | ||||
| 90179-06070 | ||||
| 90179-12018 | ||||
| 90201-12452 | ||||
| 93319-15008 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94512-01200 | ||||
| 94612-11200 | ||||
