BB20-MDRY (1982)
Toyota Coaster

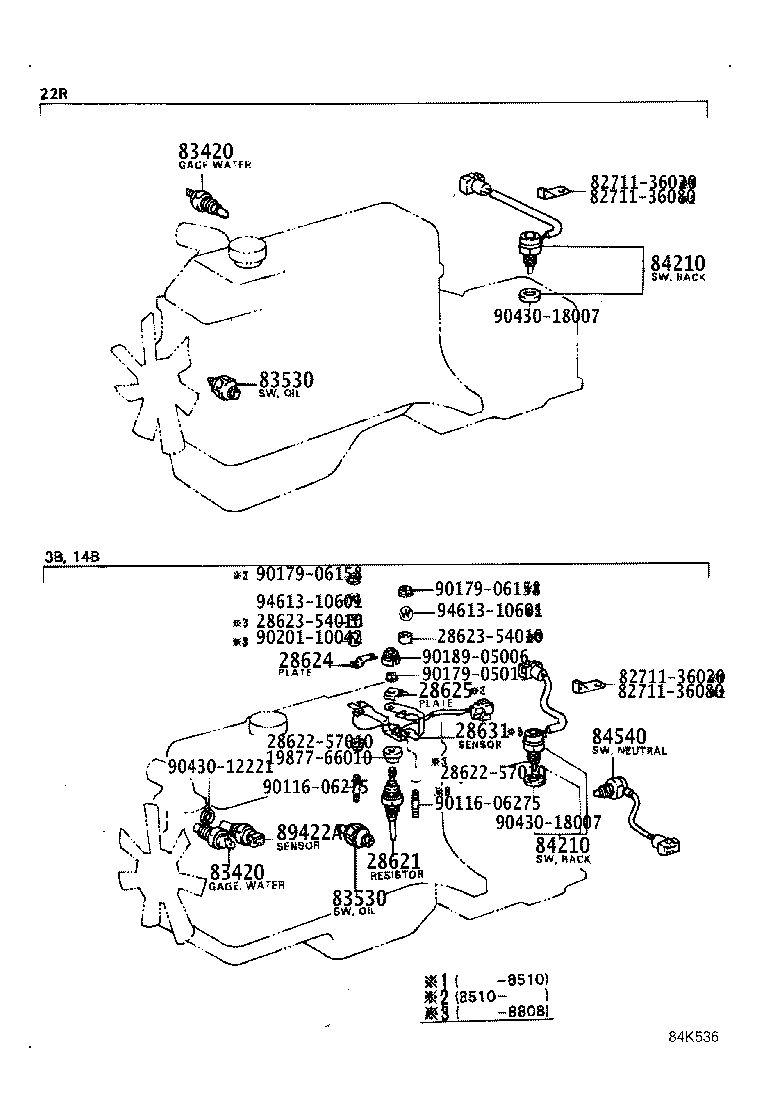

ILLUST NO. 1 OF 5(8205- )BB2#,3#,RB2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-57011 |
3B..BB2#,3# |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-57010 |
3B..BB2#,3# |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-57010 |
3B..BB2#,3# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-36010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-36010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-36011 |
BB2#,3#,HB3# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-30020 |
BB2#,3#,HB3# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-36020 | ||||
| 82711-36080 | ||||
| 90116-06275 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90201-10042 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 94613-10601 | ||||
ILLUST NO. 1 OF 5(8205-9001)HB3# ; (9001- )HDB20,3#,HZB3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-57011 |
3B..BB2#,3# |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-57011 |
3B..BB2#,3# |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-57011 |
3B..BB2#,3# |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-57010 |
3B..BB2#,3# |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-57010 |
3B..BB2#,3# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-36010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-36010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-36011 |
BB2#,3#,HB3# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-36011 |
BB2#,3#,HB3# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-30020 |
BB2#,3#,HB3# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28602-68010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 28625-68040 | ||||
| 82711-12200 | ||||
| 82711-36020 | ||||
| 82711-36080 | ||||
| 90179-04002 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-04024 | ||||
| 90189-05006 | ||||
| 90404-54025 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 91651-40825 | ||||
| 92112-60625 | ||||
| 94613-10601 | ||||

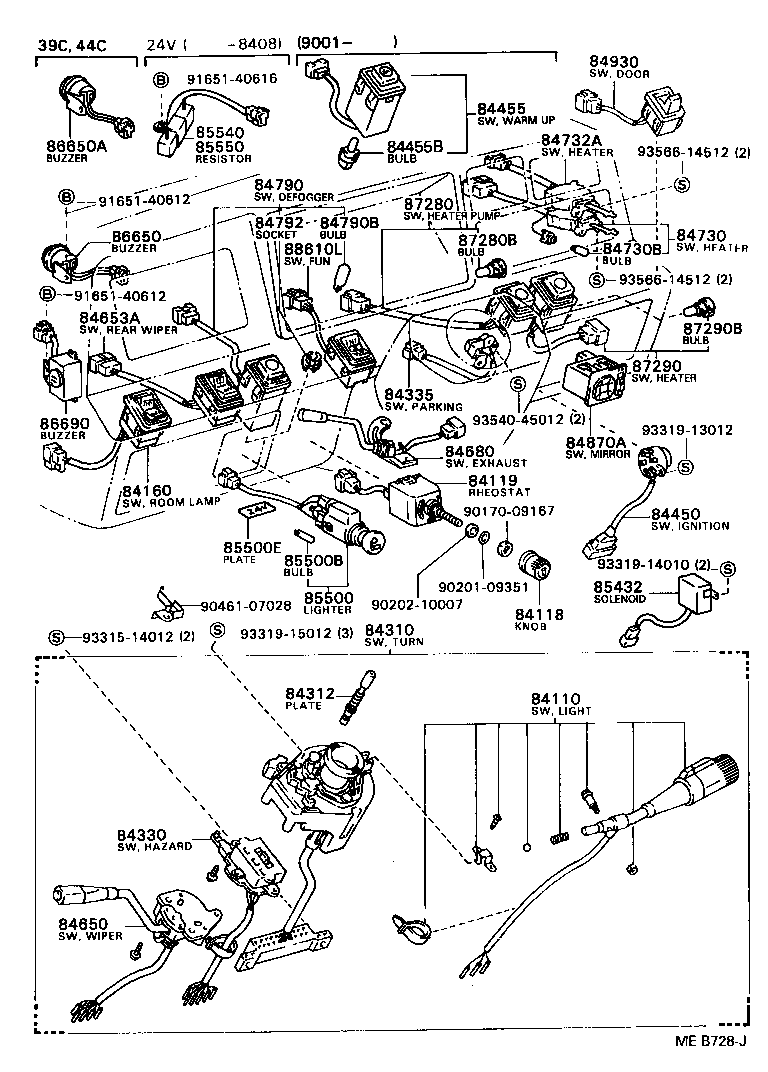

ILLUST NO. 2 OF 5(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39175 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84170-90B00 |
BB2#,3#,HB30,RB20 |
2 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-36200 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39155 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-36040 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14021 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-36120 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-90A00 |
BB20,21,30,31,HB30,RB20..DLX,EX,EXS |
1 | ||
| 84680 - SWITCH ASSY, EXHAUST BRAKE MAIN | ||||
| 84680-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-90B01 |
BB20,21,30,31,HB30 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-16020 |
BB2#,3#,HB3#,HDB20,3#,HZB3# 24V 1.8W |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-90A00 |
BB2#,3#,HB30,31..DLX,EX,EXS |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11022 |
BB2#,3#,HB30,31..DLX,EX,EXS 24V 1.4W |
1 | ||
| 84792 - SOCKET SUB-ASSY, REAR WINDOW DEFOGGER SWITCH | ||||
| 83101-14040 |
BB20,21,24,30,31,HB30,31,HDB20,3#,HZB31,RB20..DLX,EX,EXS,SULNG |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-90A00 |
BB2#,3#,HB30..DLX,EX,EXS |
1 | ||
| 86650 - BUZZER ASSY, VACUUM INDICATOR | ||||
| 86650-25040 |
BB2#,3#,HB3#,HDB20,3#,HZB3# |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3# |
1 | ||
| 87280 - SWITCH ASSY, HETER PUMP | ||||
| 87280-90B01 |
BB2#,3#,HB3#,HDB3#,HZB3#..10S,20S,26S,29S |
1 | ||
| 87280B - BULB (FOR HEATER PUMP SWITCH) | ||||
| 90981-16022 |
BB2#,3#,HB3#,HDB3#,HZB3#..10S,20S,26S,29S |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-90B01 |
BB2#,3#,HB3#,HDB3#,HZB3#..10S,20S,26S,29S |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90981-16022 |
BB2#,3#,HB3#,HDB3#,HZB3#..10S,20S,26S,29S 24V 1.4W |
1 | ||
| Common parts | ||||
| 90170-09167 | ||||
| 90201-09351 | ||||
| 90202-10007 | ||||
| 90461-07028 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-14010 | ||||
| 93319-15012 | ||||
| 93540-45012 | ||||
| 93566-14512 | ||||

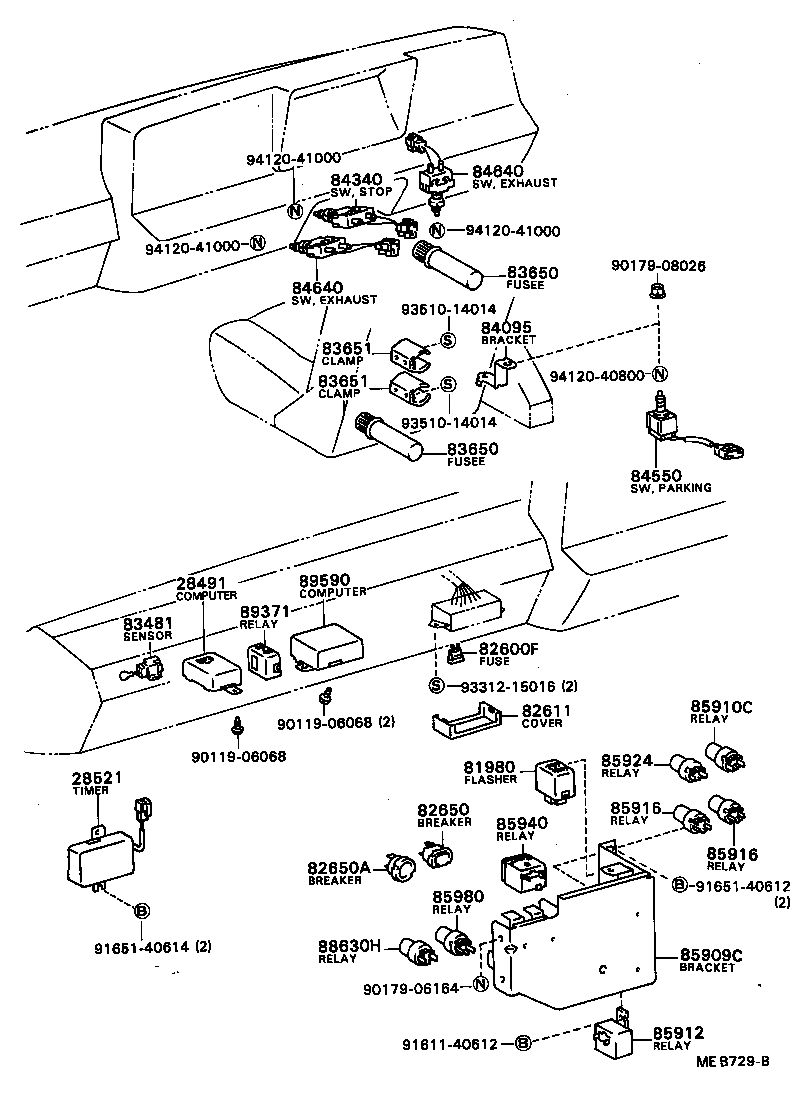

ILLUST NO. 3 OF 5(8205-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28491 - COMPUTER, EXHAUST BRAKE | ||||
| 28491-36020 |
12HT,3B,2H..BB2#,3#,HB3#..5F |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-57010 |
3B..BB2#,3# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-36060 |
BB2#,3#,HB3# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 10A |
1 | ||
| 90982-09004 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 20A,黄 |
1 | ||
| 90982-09005 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 7.5A |
1 | ||
| 90982-09003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 15A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-90B00 |
BB2#,3#,HB30,RB20 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-35010 |
BB20,21,23,24,30,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG 20A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 81713-90500 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 81713-90500 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-36030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3# |
1 | ||
| 84640 - SWITCH ASSY, EXHAUST BRAKE | ||||
| 84640-36020 |
BB2#,3#,HB3# |
2 | ||
| 84640 - SWITCH ASSY, EXHAUST BRAKE | ||||
| 84640-36020 |
BB2#,3#,HB3# |
2 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-90B00 |
BB2#,3#,HB30,RB20..DLX,EX,STD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02003 |
BB2#,3#,HB30 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01002 |
BB2#,3#,HB30 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01002 |
BB2#,3#,HB30 |
2 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90987-02003 |
BB2#,3#,HB30 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90A00 |
BB2#,3#,HB30..DLX,STD |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 90987-02003 |
BB2#,3#..DLX 24V |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-03002 |
BB2#,3#..26S,29S,44C |
1 | ||
| Common parts | ||||
| 90119-06068 | ||||
| 90179-06164 | ||||
| 90179-08026 | ||||
| 91611-40612 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93312-15016 | ||||
| 93510-14014 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||

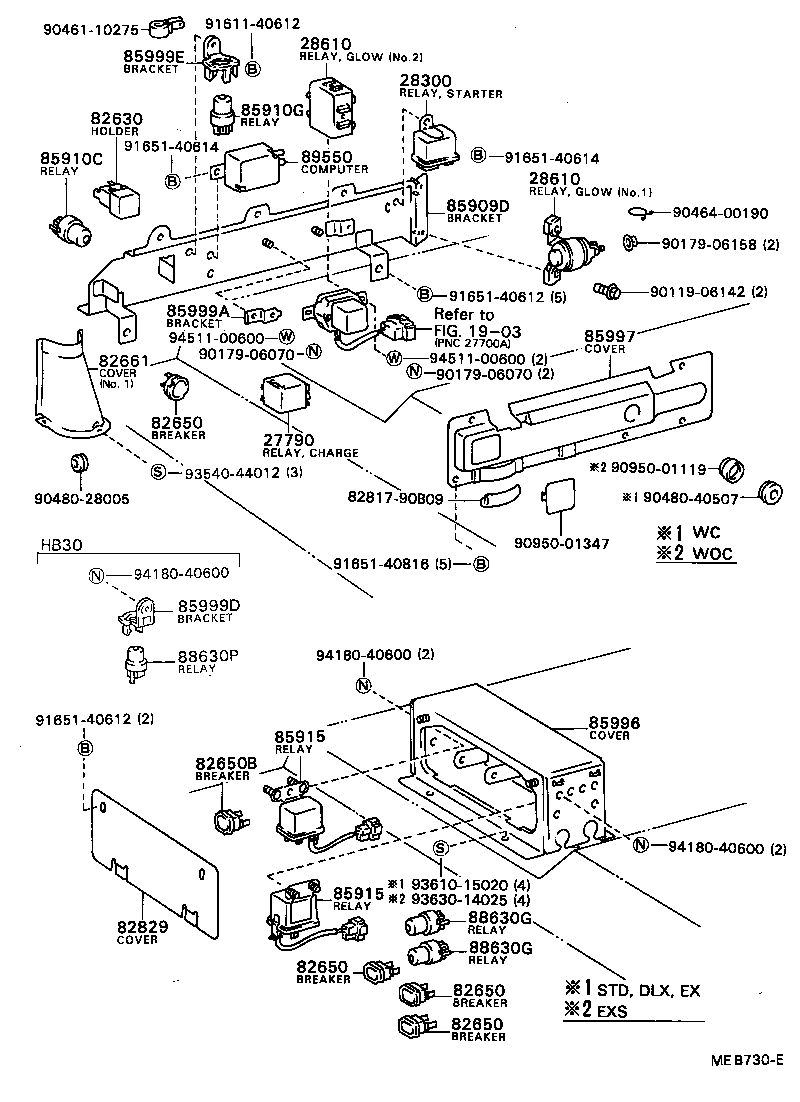

ILLUST NO. 4 OF 5(8205-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-56010 |
3B,2H..BB2#,3#,HB30..WC |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-56010 |
12HT,14B,3B,1H#,2H..BB2#,3#,HB30,32,36,HDB20,3#,HZB3# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-57030 |
3B,2H..BB2#,3#,HB30 NO.1 |
1 | ||
| 28610-57040 |
3B,2H..BB2#,3#,HB30,36 NO.2 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-57030 |
3B,2H..BB2#,3#,HB30 NO.1 |
1 | ||
| 28610-57040 |
3B,2H..BB2#,3#,HB30,36 NO.2 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-90B00 |
BB2#,3#,HB30,RB20..20S,26S,29S,39C |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 82650B - BREAKER ASSY, WIRING CIRCUIT, NO.3 | ||||
| 82650-20011 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S 30A |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-90B00 |
BB2#,3#,HB30,RB20 NO.1 |
1 | ||
| 82829 - COVER, RELAY | ||||
| 82829-90B0002 |
BB2#,3#,HB30,RB20..20S,26S,29S,39C DARK WINE,DARK WINE |
1 | ||
| 85909D - BRACKET SUB-ASSY, RELAY, NO.2 | ||||
| 85909-90B02 |
BB2#,3#,HB30,RB20 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02003 |
BB2#,3#,HB30 |
2 | ||
| 85910G - RELAY, HEATER PUMP | ||||
| 90987-02003 |
BB2#,3#,HB30..20S,26S,29S |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85915-90B01 |
BB2#,3#..26S,29S,44C |
2 | ||
| 85915 - RELAY, MAIN | ||||
| 85915-90B01 |
BB2#,3#..26S,29S,44C |
2 | ||
| 85996 - COVER, COMBINATION RELAY | ||||
| 82805-90B0002 |
BB2#,3#,HB30,RB20..20S,26S,29S,39C DARK WINE,DARK WINE |
1 | ||
| 85997 - COVER, RELAY BRACKET | ||||
| 85997-90B03 |
BB20,HB30,RB20..WC |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-22070 |
BB2#,3#,HB30..WC |
1 | ||
| 85999E - BRACKET, RELAY, NO.5 | ||||
| 85999-12050 |
BB2#,3#,HB30,36,HDB3#,HZB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02003 |
BB2#,3#..26S,29S,44C |
2 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02003 |
BB2#,3#..26S,29S,44C |
2 | ||
| Common parts | ||||
| 82817-90B09 | ||||
| 90119-06142 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90461-10275 | ||||
| 90464-00190 | ||||
| 90480-28005 | ||||
| 90480-40507 | ||||
| 90950-01119 | ||||
| 90950-01347 | ||||
| 91611-40612 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 93540-44012 | ||||
| 93610-15020 | ||||
| 93630-14025 | ||||
| 94180-40600 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 1903 | ||||

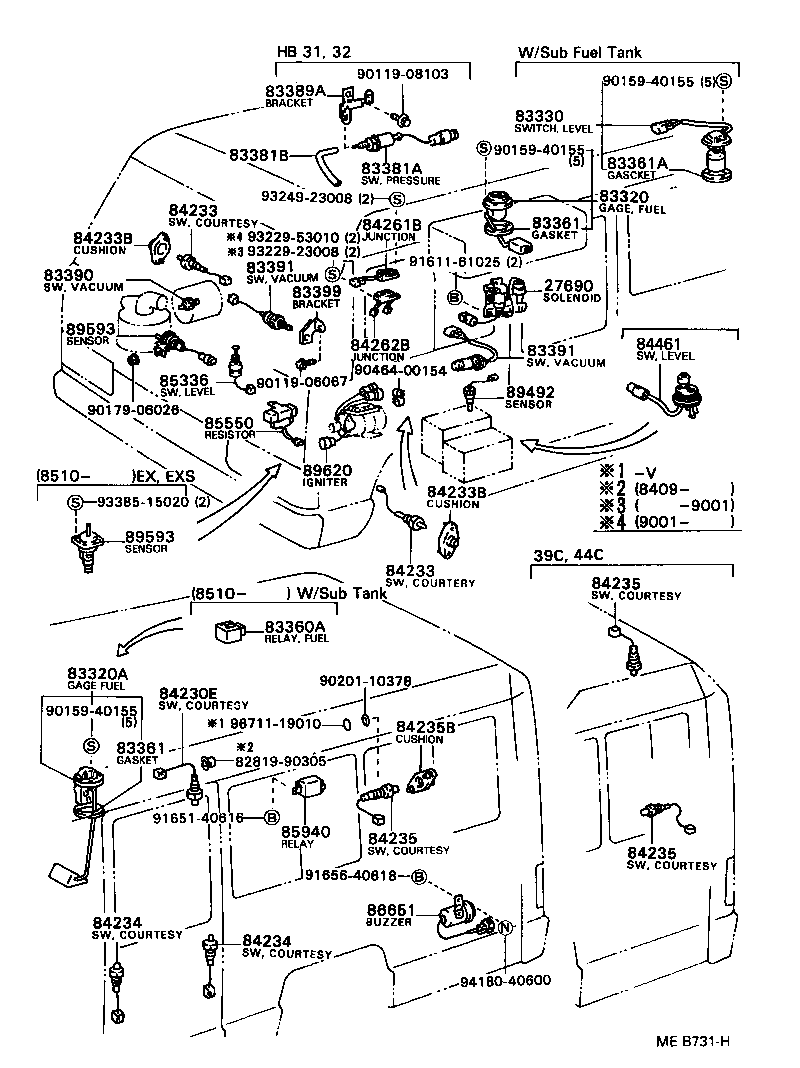

ILLUST NO. 5 OF 5(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-36020 |
12HT,3B,2H..BB2#,3#,HB3# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39355 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-60010 |
BB2#,3#,HB3#,HDB20,3#,HZB3# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22040 |
BB20,21,30,31,HB30,31,RB20..DLX,EX,EXS |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22040 |
BB20,21,30,31,HB30,31,RB20..DLX,EX,EXS |
1 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
BB20,21,23,24,30,31,HB30,31,32,HDB3#,HZB3#,RB20..DLX,EX,EXS,SULNG |
1 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
BB20,21,23,24,30,31,HB30,31,32,HDB3#,HZB3#,RB20..DLX,EX,EXS,SULNG |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-16020 |
BB2#,HB30,RB20..WC FR |
1 | ||
| 84230-14041 |
BB2#,HB30,RB20..WC RR |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-16020 |
BB2#,HB30,RB20..WC FR |
1 | ||
| 84230-14041 |
BB2#,HB30,RB20..WC RR |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-22040 |
BB20,21,30,31,HB30,31,RB20..DLX,EX,EXS |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-22040 |
BB20,21,30,31,HB30,31,RB20..DLX,EX,EXS |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-22040 |
BB20,21,30,31,HB30,31,RB20..DLX,EX,EXS |
1 | ||
| 84235B - CUSHION, COURTESY SWITCH(FOR BACK DOOR) | ||||
| 84234-22010 |
BB20,21,23,24,30,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90A00 |
BB2#,3#,HB30..DLX,STD |
1 | ||
| 86651 - BUZZER ASSY, BACK | ||||
| 86650-95405 |
BB2#,3#,HB3# |
1 | ||
| Common parts | ||||
| 82819-90305 | ||||
| 90119-06067 | ||||
| 90119-08103 | ||||
| 90159-40155 | ||||
| 90179-06026 | ||||
| 90201-10378 | ||||
| 90464-00154 | ||||
| 91611-61025 | ||||
| 91651-40616 | ||||
| 91656-40618 | ||||
| 93229-23008 | ||||
| 93229-53010 | ||||
| 93249-23008 | ||||
| 93385-15020 | ||||
| 94180-40600 | ||||
| 96711-19010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
