BB11-MDZRY (1979)

Toyota Coaster

Production Nov 1979 - Apr 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)2B

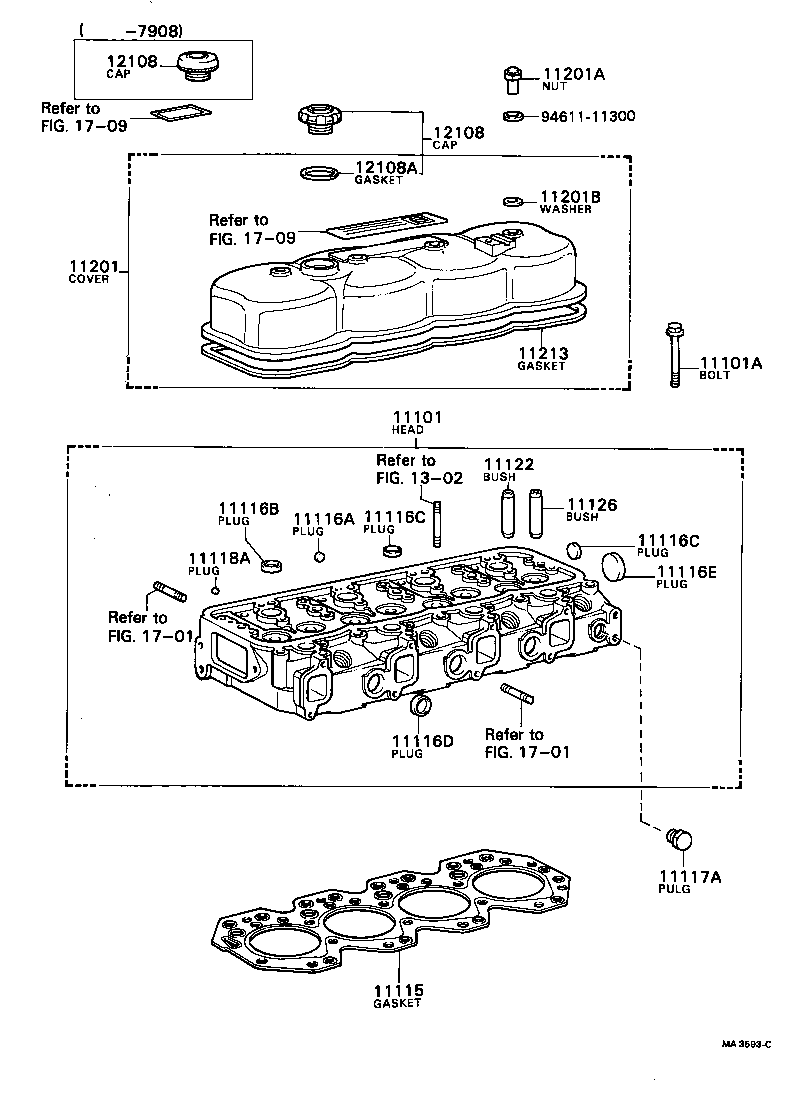

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11116C 11116D 11116E 11117A 11118A 11122 11126 11201 11201A 11201B 11213 12108 12108 12108A 1302 1701 1701 1709 1709 9461111300
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-59105

2B..BB11

 1
11101-59045

2B..BB1#

 1
11101-59106

2B..BB11

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02046

2B..BB1#

*12-1.25PX119-25

 18
11115 - GASKET, CYLINDER HEAD
11115-56010

2B..BB1#

 1
11115-56020

2B..BB11

 1
11116A - PLUG, TIGHT, NO.1
96411-11200

2B..BB11

OD=12

 4
90331-11001

2B..BB1#

OD=10.5

 4
11116B - PLUG, TIGHT, NO.2
96411-12500

2B..BB1#

OD=25

 4
11116D - PLUG, TIGHT, NO.4
96411-12800

2B..BB1#

OD=28

 3
11116E - PLUG, TIGHT, NO.5
90331-40024

2B..BB1#

OD=40

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

2B..BB11..BC

 1
11118A - PLUG, STRAIGHT, NO.1
90043-34024

2B..BB11

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-56020

2B..BB1#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-56020

2B..BB1#

STD

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-59045

2B..BB11

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
11295-46010

2B..BB1#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-12001

2B..BB11

 4
90210-12002

2B..BB1#

 4
Common parts
94611-11300
Linked diagrams
1302
1701
1709

(8008- )2B

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11116D 11116E 11117A 11122 11126 11201 11201A 11201B 11213 12108 12108A 1302 1701 1701 1709 1709
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-59105

2B..BB11

 1
11101-59045

2B..BB1#

 1
11101-59106

2B..BB11

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02046

2B..BB1#

*12-1.25PX119-25

 18
11115 - GASKET, CYLINDER HEAD
11115-56010

2B..BB1#

 1
11115-56020

2B..BB11

 1
11116A - PLUG, TIGHT, NO.1
96411-11200

2B..BB11

OD=12

 4
90331-11001

2B..BB1#

OD=10.5

 4
11116B - PLUG, TIGHT, NO.2
96411-12500

2B..BB1#

OD=25

 4
11116D - PLUG, TIGHT, NO.4
96411-12800

2B..BB1#

OD=28

 3
11116E - PLUG, TIGHT, NO.5
90331-40024

2B..BB1#

OD=40

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

2B..BB11..BC

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-56020

2B..BB1#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-56020

2B..BB1#

STD

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-59045

2B..BB11

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
11295-46010

2B..BB1#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-12001

2B..BB11

 4
90210-12002

2B..BB1#

 4
Linked diagrams
1302
1701
1709
