BB11-MDZERY (1979)

Toyota Coaster

Production Nov 1979 - Apr 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

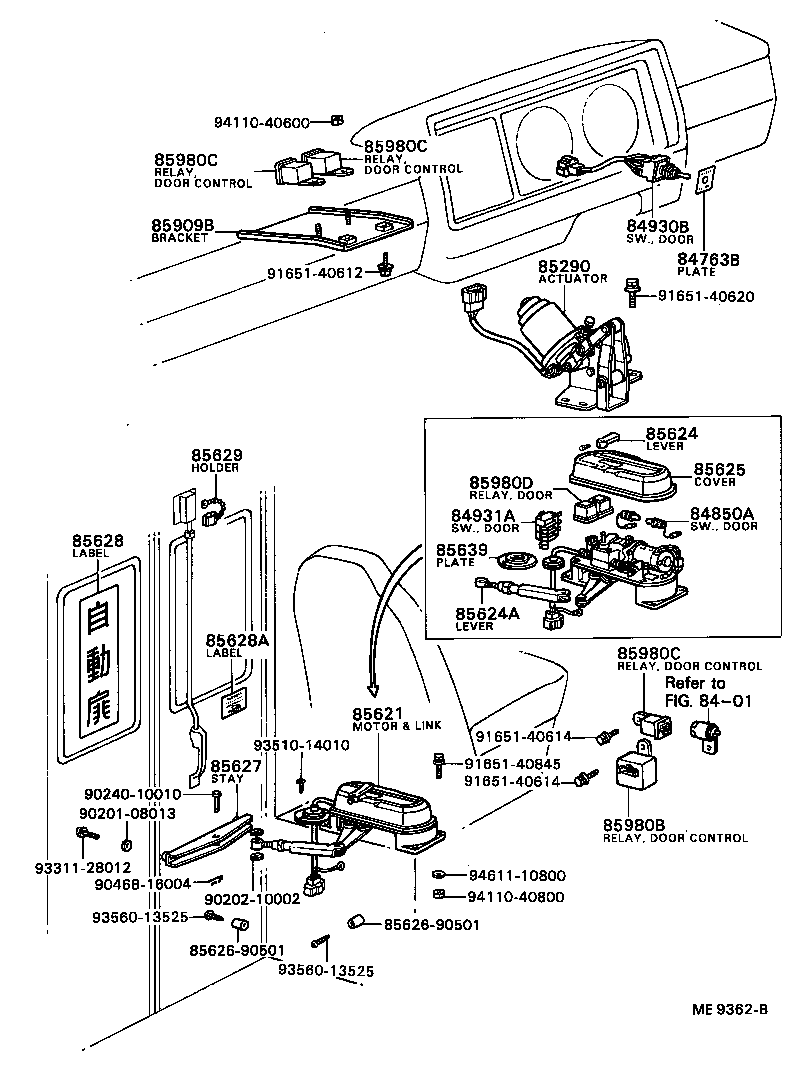

Click highlighted areas on diagram

diagram 8401 84763B 84850A 84930B 84931A 85290 85621 85624 85624A 85625 8562690501 8562690501 85627 85628 85628A 85629 85639 85909B 85980B 85980C 85980C 85980C 85980D 9020108013 9020210002 9024010010 9046816004 9165140612 9165140614 9165140614 9165140620 9165140845 9331128012 9351014010 9356013525 9356013525 9411040600 9411040800 9461110800
Part # Description Qty Price
Common parts
85626-90501
90201-08013
90202-10002
90240-10010
90468-16004
91651-40612
91651-40614
91651-40620
91651-40845
93311-28012
93510-14010
93560-13525
94110-40600
94110-40800
94611-10800
Linked diagrams
8401
