BB11-MDZERY (1979)
Toyota Coaster

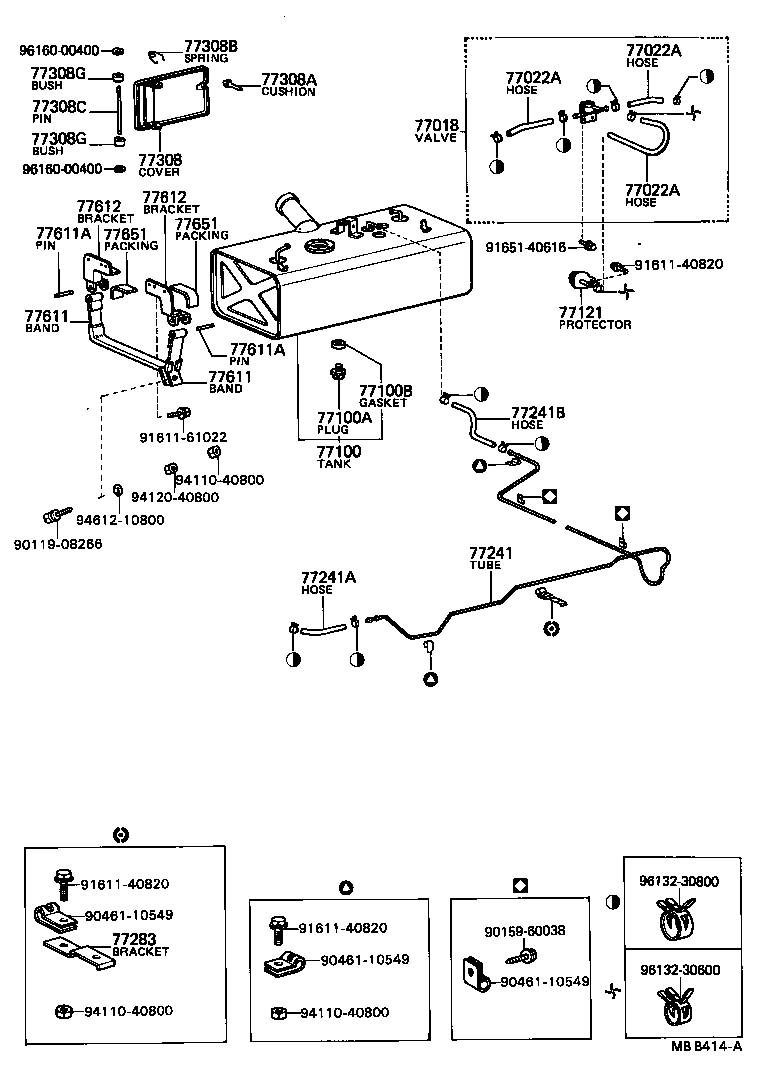

(7708-8008)BB1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36071 |
BB1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36251 |
BB1# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BB1#,RB1# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BB1#,RB1# |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BB1# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36321 |
BB1# |
1 | ||
| 77251-36322 |
BB11 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
BB1# *H,L=200,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
BB1#,RB12,13 *H,L=300,内径=7.6 |
1 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 77283-36040 |
BB1#,RB1# |
2 | ||
| 77283-36041 |
BB11,RB13 |
2 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 58802-90502 |
BB1#,RB1# |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
BB1#,RB1# |
2 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 58827-90500 |
BB1#,RB1# |
1 | ||
| 77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER) | ||||
| 58824-90501 |
BB1#,RB1# |
1 | ||
| 77308G - BUSH(FOR FUEL INLET BOX COVER) | ||||
| 58829-90500 |
BB1#,RB1# |
2 | ||
| 77308G - BUSH(FOR FUEL INLET BOX COVER) | ||||
| 58829-90500 |
BB1#,RB1# |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36071 |
BB11,RB1# RH |
2 | ||
| 77602-36020 |
BB1#,RB1# LH |
2 | ||
| 77602-36021 |
BB11,RB1# LH |
2 | ||
| 77601-36070 |
BB1#,RB1# RH |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36071 |
BB11,RB1# RH |
2 | ||
| 77602-36020 |
BB1#,RB1# LH |
2 | ||
| 77602-36021 |
BB11,RB1# LH |
2 | ||
| 77601-36070 |
BB1#,RB1# RH |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BB1#,RB1# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BB1#,RB1# |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77502-36011 |
BB1#,RB1# LH |
2 | ||
| 77501-36011 |
BB1#,RB1# RH |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77502-36011 |
BB1#,RB1# LH |
2 | ||
| 77501-36011 |
BB1#,RB1# RH |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36060 |
BB1#,RB1# |
4 | ||
| 77651-36061 |
BB11,RB1# |
4 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36060 |
BB1#,RB1# |
4 | ||
| 77651-36061 |
BB11,RB1# |
4 | ||
| Common parts | ||||
| 90119-08266 | ||||
| 90159-60038 | ||||
| 90461-10654 | ||||
| 91611-40620 | ||||
| 91611-40820 | ||||
| 91611-61022 | ||||
| 91651-40616 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00600 | ||||
| 94612-10800 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96160-00400 | ||||

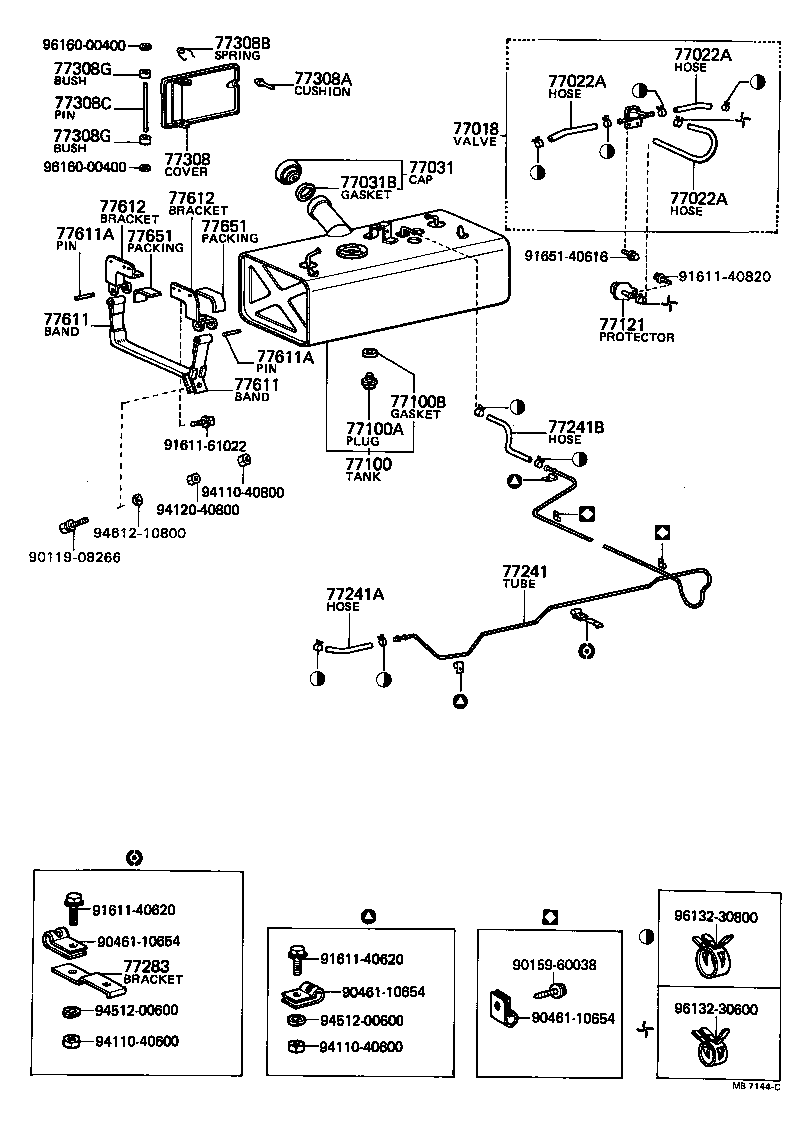

(8008- )BB11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36071 |
BB1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36251 |
BB1# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BB1#,RB1# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BB1#,RB1# |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BB1# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36321 |
BB1# |
1 | ||
| 77251-36322 |
BB11 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
BB1# *H,L=200,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
BB1#,RB12,13 *H,L=300,内径=7.6 |
1 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 77283-36040 |
BB1#,RB1# |
2 | ||
| 77283-36041 |
BB11,RB13 |
2 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 58802-90502 |
BB1#,RB1# |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
BB1#,RB1# |
2 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 58827-90500 |
BB1#,RB1# |
1 | ||
| 77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER) | ||||
| 58824-90501 |
BB1#,RB1# |
1 | ||
| 77308G - BUSH(FOR FUEL INLET BOX COVER) | ||||
| 58829-90500 |
BB1#,RB1# |
2 | ||
| 77308G - BUSH(FOR FUEL INLET BOX COVER) | ||||
| 58829-90500 |
BB1#,RB1# |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36071 |
BB11,RB1# RH |
2 | ||
| 77602-36020 |
BB1#,RB1# LH |
2 | ||
| 77602-36021 |
BB11,RB1# LH |
2 | ||
| 77601-36070 |
BB1#,RB1# RH |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36071 |
BB11,RB1# RH |
2 | ||
| 77602-36020 |
BB1#,RB1# LH |
2 | ||
| 77602-36021 |
BB11,RB1# LH |
2 | ||
| 77601-36070 |
BB1#,RB1# RH |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BB1#,RB1# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BB1#,RB1# |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77502-36011 |
BB1#,RB1# LH |
2 | ||
| 77501-36011 |
BB1#,RB1# RH |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77502-36011 |
BB1#,RB1# LH |
2 | ||
| 77501-36011 |
BB1#,RB1# RH |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36060 |
BB1#,RB1# |
4 | ||
| 77651-36061 |
BB11,RB1# |
4 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36060 |
BB1#,RB1# |
4 | ||
| 77651-36061 |
BB11,RB1# |
4 | ||
| Common parts | ||||
| 90119-08266 | ||||
| 90159-60038 | ||||
| 90461-10549 | ||||
| 91611-40820 | ||||
| 91611-61022 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94612-10800 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96160-00400 | ||||
