BB10-QRZ (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BB1#

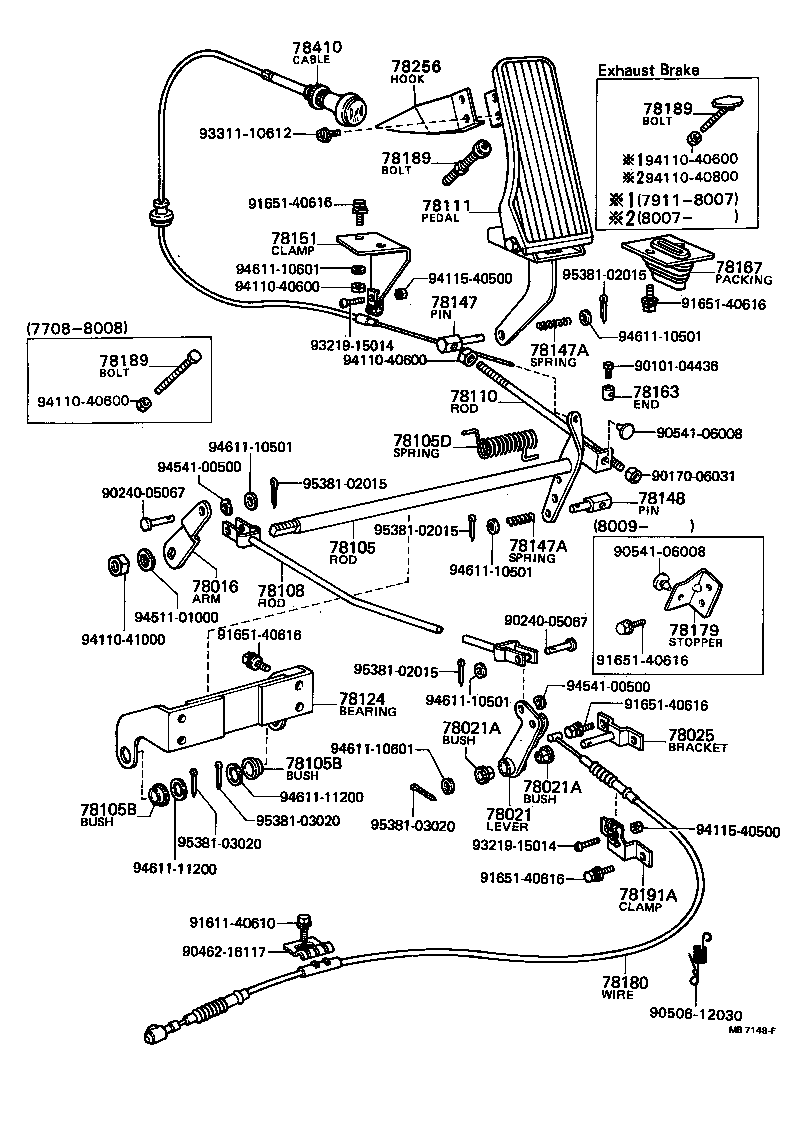

Click highlighted areas on diagram

diagram 78016 78021 78021A 78021A 78025 78105 78105B 78105B 78105D 78108 78110 78111 78124 78147 78147A 78147A 78148 78151 78163 78167 78179 78180 78189 78189 78189 78191A 78256 78410 9010104436 9017006031 9024005067 9024005067 9046216117 9050612030 9054106008 9054106008 9161140610 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9321915014 9321915014 9331110612 9411040600 9411040600 9411040600 9411040600 9411040800 9411041000 9411540500 9411540500 9451101000 9454100500 9454100500 9461110501 9461110501 9461110501 9461110501 9461110601 9461110601 9461111200 9461111200 9538102015 9538102015 9538102015 9538102015 9538103020 9538103020 9538103020
Part # Description Qty Price
78016 - ARM SUB-ASSY, ACCELERATOR LINK ROD
78145-90502

BB10,RB11

 1
78021 - LEVER SUB-ASSY, ACCELERATOR CONTROL, NO.1
78106-90502

BB1#

 1
78021A - BUSH, ACCELERATOR CONTROL LEVER
90386-10150

BB1#,RB1#

 2
78021A - BUSH, ACCELERATOR CONTROL LEVER
90386-10150

BB1#,RB1#

 2
78025 - BRACKET SUB-ASSY, ACCELERATOR CONNECTING ROD ARM
78105-90500

BB1#,RB1#

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78103-90506

BB10,RB11

 1
78105B - BUSH (FOR ACCELERATOR TORQUE ROD)
90386-12151

BB10,RB11

 2
78105B - BUSH (FOR ACCELERATOR TORQUE ROD)
90386-12151

BB10,RB11

 2
78105D - SPRING (FOR ACCELERATOR TORQUE ROD)
90508-23311

BB10,RB11

 1
78108 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78107-90502

BB1#,RB1#

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78121-90504

BB1#,RB1#

 1
78111 - PEDAL, ACCELERATOR
78110-90501

BB10,RB11

 1
78124 - BEARING, ACCELERATOR LINK, NO.1
78108-90500

BB10,RB11

 1
78147 - PIN, CONNECTING ROD, RH
78147-90011

BB1#,RB1#

 1
78147A - SPRING, ACCELERATOR ROD PIN
90501-10005

BB1#,RB1#

 2
78147A - SPRING, ACCELERATOR ROD PIN
90501-10005

BB1#,RB1#

 2
78148 - PIN, CONNECTING ROD, LH
78145-90011

BB1#,RB1#

 1
78151 - CLAMP, THROTTLE WIRE
78151-90740

BB1#,RB1#

 1
78163 - END, FLEXIBLE WIRE
78163-55020

BB1#,RB1#

 1
78167 - PACKING, ACCELERATOR PEDAL HINGE
78167-90503

BB1#,RB1#

 1
78180 - WIRE ASSY, ACCELERATOR
78120-90740

BB1#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
91131-40650

BB1#,RB1#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
91131-40650

BB1#,RB1#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
91131-40650

BB1#,RB1#

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78149-90740

BB1#

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90504

BB1#,RB1#

 1
Common parts
90101-04436
90170-06031
90240-05067
90462-16117
90506-12030
90541-06008
91611-40610
91651-40616
93219-15014
93311-10612
94110-40600
94110-40800
94110-41000
94115-40500
94511-01000
94541-00500
94611-10501
94611-10601
94611-11200
95381-02015
95381-03020
