BB10-QRK (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

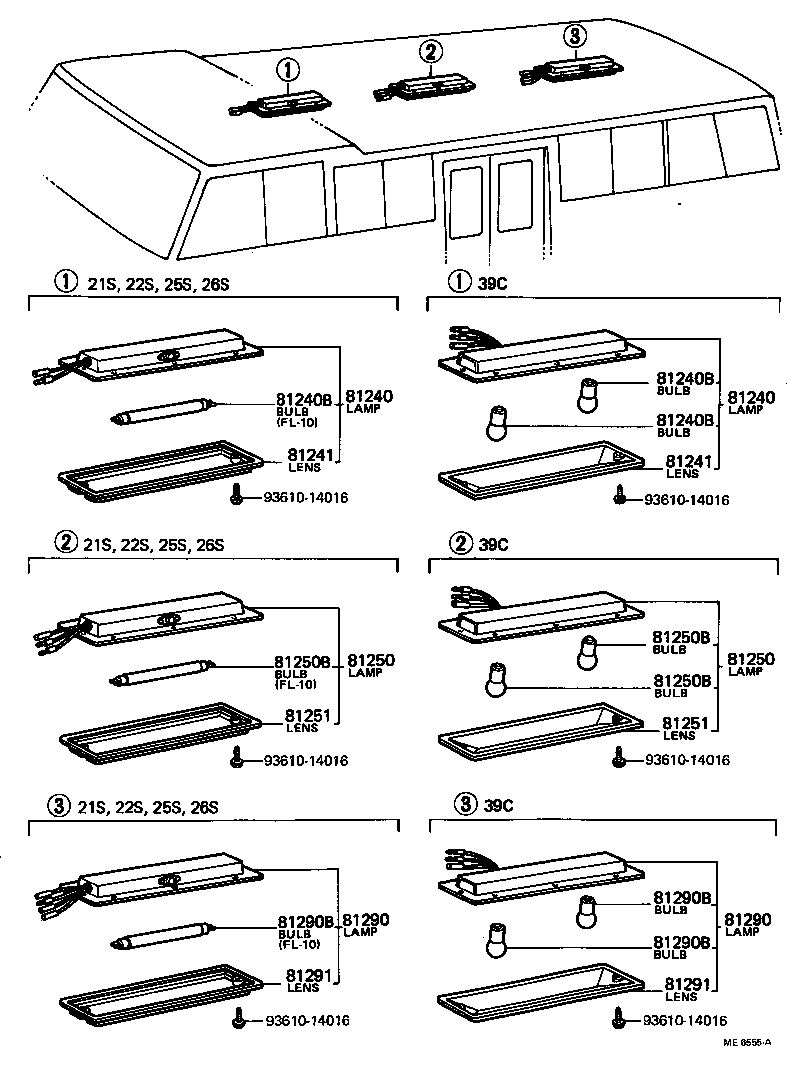

ILLUST NO. 1 OF 3(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81205-90743 |
BB1#..39C |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81205-90743 |
BB1#..39C |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99134-11100 |
BB1#..39C 24V 10W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99134-11100 |
BB1#..39C 24V 10W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99134-11100 |
BB1#..39C 24V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81252-90500 |
BB1#,RB1# |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81252-90500 |
BB1#,RB1# |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81205-90743 |
BB1#..39C |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81205-90743 |
BB1#..39C |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99134-11100 |
BB1#..39C 24V 10W |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99134-11100 |
BB1#..39C 24V 10W |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99134-11100 |
BB1#..39C 24V 10W |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81252-90500 |
BB1#,RB1# |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81252-90500 |
BB1#,RB1# |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81205-90743 |
BB1#..39C |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81205-90743 |
BB1#..39C |
1 | ||
| 81290B - BULB, ROOM LAMP, NO.3 | ||||
| 99134-11100 |
BB1#..39C 24V 10W |
1 | ||
| 81290B - BULB, ROOM LAMP, NO.3 | ||||
| 99134-11100 |
BB1#..39C 24V 10W |
1 | ||
| 81290B - BULB, ROOM LAMP, NO.3 | ||||
| 99134-11100 |
BB1#..39C 24V 10W |
1 | ||
| 81291 - LENS, ROOM LAMP, NO.3(FOR REAR) | ||||
| 81252-90500 |
BB1#,RB1# |
1 | ||
| 81291 - LENS, ROOM LAMP, NO.3(FOR REAR) | ||||
| 81252-90500 |
BB1#,RB1# |
1 | ||
| Common parts | ||||
| 93610-14016 | ||||
ILLUST NO. 2 OF 3(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81360 - LAMP ASSY, STEP OR SPOT | ||||
| 81360-90060 |
BB10 |
1 | ||
| 81360 - LAMP ASSY, STEP OR SPOT | ||||
| 81360-90060 |
BB10 |
1 | ||
| 81360B - BULB, STEP OR SPOT LAMP | ||||
| 99134-11120 |
BB10 24V 12W,24V 12W |
1 | ||
| 81360B - BULB, STEP OR SPOT LAMP | ||||
| 99134-11120 |
BB10 24V 12W,24V 12W |
1 | ||
| 81361 - LENS, STEP LAMP | ||||
| 81361-90010 |
BB10,RB11 |
1 | ||
| 81361 - LENS, STEP LAMP | ||||
| 81361-90010 |
BB10,RB11 |
1 | ||
| 81362 - PROTECTOR, STEP LAMP | ||||
| 81362-90010 |
BB10,RB11 |
1 | ||
| Common parts | ||||
| 93239-23008 | ||||
| 93249-14008 | ||||
| 93249-14016 | ||||
ILLUST NO. 3 OF 3(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-90500 |
BB10 |
1 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 81231-90500 |
BB1# 24V 5W |
1 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-30010 |
BB1#,RB1# |
1 | ||
| 81236 - RIM, COURTESY LAMP | ||||
| 81236-30010 |
BB10,RB11 |
1 | ||
| Common parts | ||||
| 93239-24016 | ||||
