BB10-QRK (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

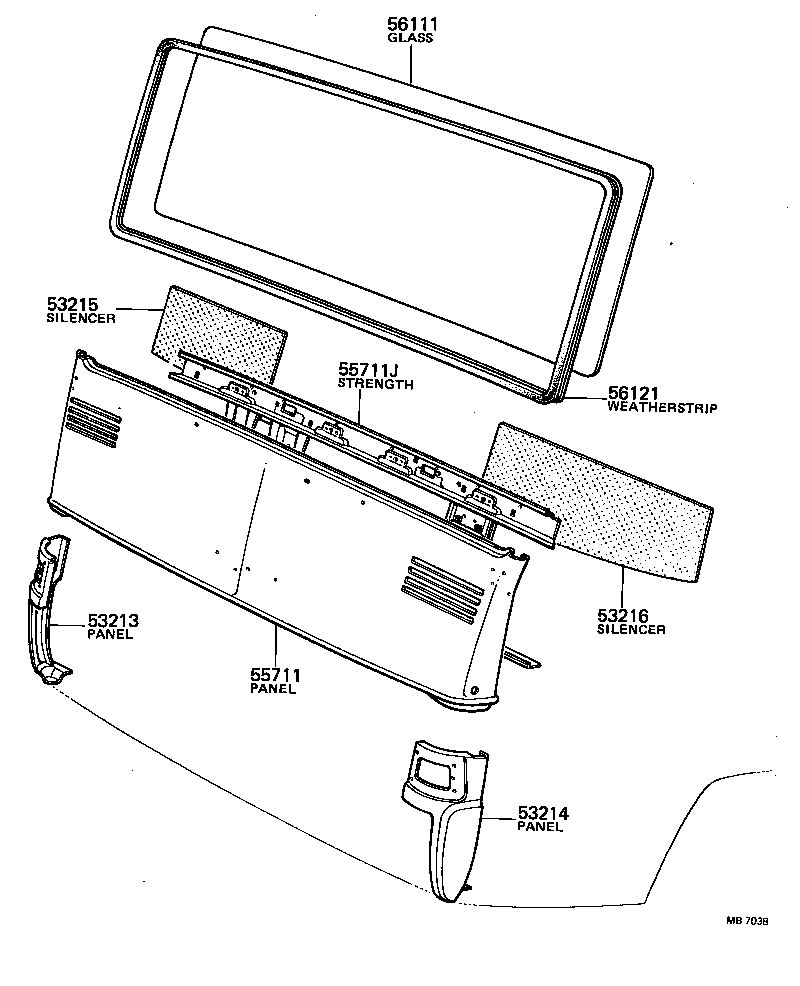

Click highlighted areas on diagram

diagram 53213 53214 53215 53216 55711 55711J 56111 56121
Part # Description Qty Price
53213 - PANEL, FRONT UNDER, RH
53213-90501

BB1#,RB1#

 1
53214 - PANEL, FRONT UNDER, LH
53214-90500

BB1#,RB1#

 1
53215 - SILENCER, FRONT PANEL, RH
53217-90501

BB1#,RB1#

 1
53216 - SILENCER, FRONT PANEL, LH
53218-90501

BB1#,RB1#

 1
55711 - PANEL, COWL TOP, OUTER
53211-90742

BB1#,RB1#

 1
55711J - STRENGTH SUB-ASSY, FRONT PANEL
53302-90740

BB10,RB11

 1
56111 - GLASS, WINDSHIELD
56111-90740

BB1#,RB1#..STD

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-90740

BB10,RB11

 1
