BB10-QRK (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )

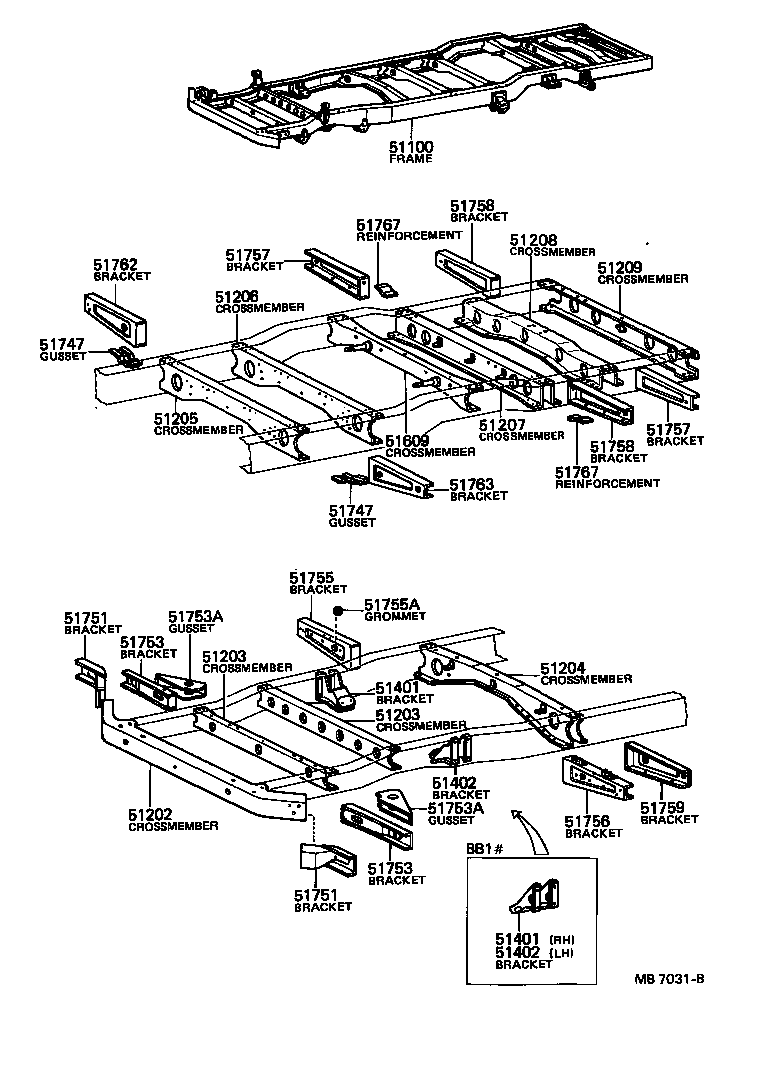

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100 - FRAME ASSY | ||||
| 51003-36091 |
BB10,RB11 |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51211-36050 |
BB1#,RB1# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51221-36070 |
BB1#,RB1# RR |
1 | ||
| 51221-36041 |
BB1#,RB1# FR |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51221-36070 |
BB1#,RB1# RR |
1 | ||
| 51221-36041 |
BB1#,RB1# FR |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-36112 |
BB1#,RB1# |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51241-36032 |
BB1#,RB1# |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51241-36032 |
BB1#,RB1# |
1 | ||
| 51207 - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51207-36040 |
BB1#,RB1# |
1 | ||
| 51208 - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51261-36010 |
BB1#,RB1# |
1 | ||
| 51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51956-36020 |
BB1#,RB1# |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51425-36050 |
BB1# |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51425-36050 |
BB1# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51426-36020 |
BB1# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51426-36020 |
BB1# |
1 | ||
| 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT | ||||
| 51506-36081 |
BB10,RB11 |
1 | ||
| 51747 - GUSSET, BODY SUPPORT BRACKET, NO.5 | ||||
| 51747-36010 |
BB1#,RB1# |
2 | ||
| 51747 - GUSSET, BODY SUPPORT BRACKET, NO.5 | ||||
| 51747-36010 |
BB1#,RB1# |
2 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51751-36030 |
BB1#,RB1# |
2 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51751-36030 |
BB1#,RB1# |
2 | ||
| 51753 - BRACKET, BODY SUPPORT, NO.2 | ||||
| 51753-36031 |
BB1#,RB1# RH |
1 | ||
| 51753-36022 |
BB1#,RB1# LH |
1 | ||
| 51753 - BRACKET, BODY SUPPORT, NO.2 | ||||
| 51753-36031 |
BB1#,RB1# RH |
1 | ||
| 51753-36022 |
BB1#,RB1# LH |
1 | ||
| 51753A - GUSSET, BODY SUPPORT BRACKET, NO.2 | ||||
| 51749-36010 |
BB1#,RB1# LH |
1 | ||
| 51748-36010 |
BB1#,RB1# RH |
1 | ||
| 51753A - GUSSET, BODY SUPPORT BRACKET, NO.2 | ||||
| 51749-36010 |
BB1#,RB1# LH |
1 | ||
| 51748-36010 |
BB1#,RB1# RH |
1 | ||
| 51755 - BRACKET, BODY SUPPORT, NO.3 RH | ||||
| 51755-36021 |
BB1#,RB1# |
1 | ||
| 51755A - GROMMET(FOR BODY SUPPORT NO.3 BRACKET) | ||||
| 90480-30078 |
BB1#,RB1# |
1 | ||
| 51756 - BRACKET, BODY SUPPORT, NO.3 LH | ||||
| 51756-36021 |
BB1#,RB1# |
1 | ||
| 51757 - BRACKET, BODY SUPPORT, NO.4 RH | ||||
| 51757-36011 |
BB1#,RB1# |
2 | ||
| 51757 - BRACKET, BODY SUPPORT, NO.4 RH | ||||
| 51757-36011 |
BB1#,RB1# |
2 | ||
| 51758 - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51758-36011 |
BB1#,RB1# |
2 | ||
| 51758 - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51758-36011 |
BB1#,RB1# |
2 | ||
| 51759 - BRACKET, BODY SUPPORT, NO.5 | ||||
| 51759-36011 |
BB1#,RB1# |
1 | ||
| 51762 - BRACKET, BODY SUPPORT, NO.5 RH | ||||
| 51759-36020 |
BB1#,RB1# |
1 | ||
| 51763 - BRACKET, BODY SUPPORT, NO.5 LH | ||||
| 51763-36010 |
BB1#,RB1# |
1 | ||
| 51767 - REINFORCEMENT, BODY SUPPORT BRACKET | ||||
| 51767-36011 |
BB1#,RB1# |
2 | ||
| 51767 - REINFORCEMENT, BODY SUPPORT BRACKET | ||||
| 51767-36011 |
BB1#,RB1# |
2 | ||
