BB10-QDZ (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

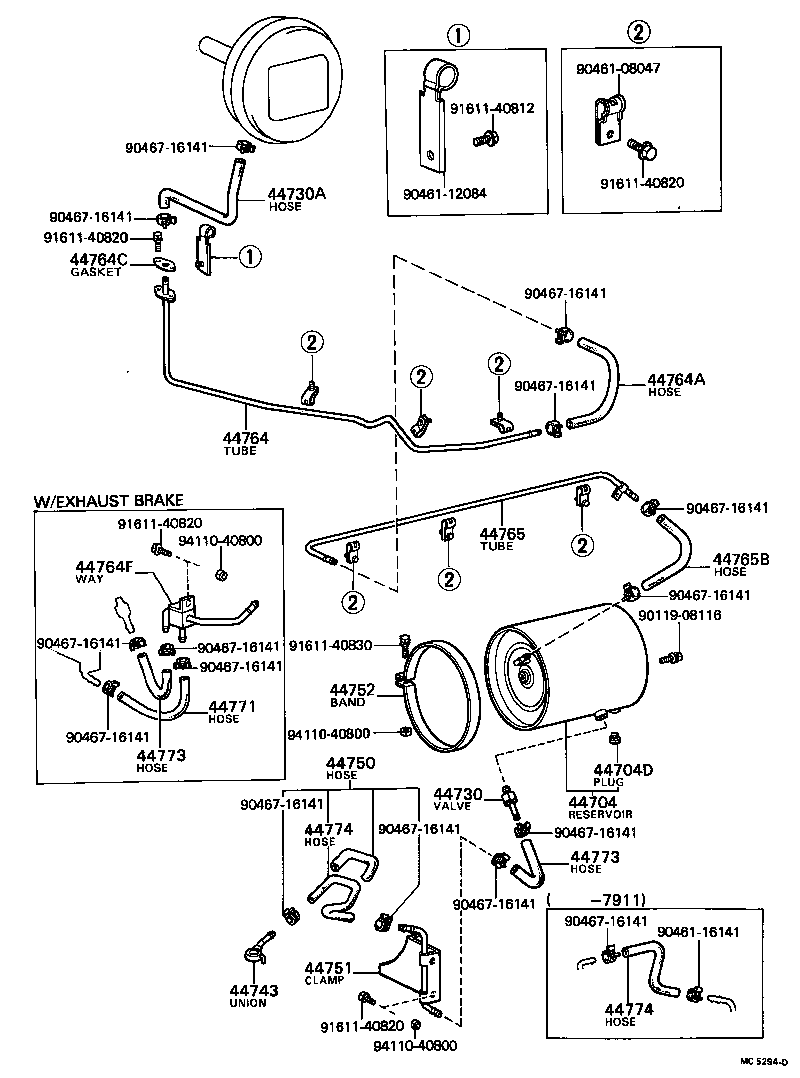

ILLUST NO. 2 OF 2(7708- )BB1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36090 |
BB1# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BB1# |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-17952 |
BB1#,RB1# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09001 |
BB10..DLX,STD |
1 | ||
| 44761-36070 |
BB10..DLX,STD COLD SPEC |
1 | ||
| 44751 - CLAMP, VACUUM RESERVOIR, NO.1 | ||||
| 44751-36110 |
BB10 |
1 | ||
| 44752 - BAND, VACUUM RESERVOIR | ||||
| 44752-36021 |
BB1# |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-36120 |
BB1#,RB1# |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 90445-17952 |
BB1#,RB1# |
1 | ||
| 44764C - GASKET(FOR VACUUM RESERVOIR TUBE SET) | ||||
| 44729-36010 |
BB1#,RB1# |
1 | ||
| 44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2 | ||||
| 44765-36100 |
BB10,RB1# |
1 | ||
| 44765B - HOSE, CONNECTOR TO BRAKE BOOSTER | ||||
| 90445-17038 |
BB10,RB1# |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 90445-17002 |
BB1# |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 90445-17002 |
BB1# |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 90445-17895 |
BB10 |
1 | ||
| 90445-17033 |
BB10..DLX,STD COLD SPEC |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 90445-17895 |
BB10 |
1 | ||
| 90445-17033 |
BB10..DLX,STD COLD SPEC |
1 | ||
| Common parts | ||||
| 90119-08116 | ||||
| 90461-08047 | ||||
| 90461-12084 | ||||
| 90461-16141 | ||||
| 90467-16141 | ||||
| 91611-40812 | ||||
| 91611-40820 | ||||
| 91611-40830 | ||||
| 94110-40800 | ||||
ILLUST NO. 1 OF 2(7708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44601 - BAND SUB-ASSY, BOOSTER BODY | ||||
| 44605-36120 |
BB1#,RB1# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-36120 |
BB1#,RB1# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36180 |
BB1# |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-36020 |
BB1# |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
BB1#,RB1# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44629-30090 |
BB1#,RB1# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-36120 |
BB1#,RB1# |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
BB1#,RB1# |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
BB1#,RB1# |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
BB1#,RB1# |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-36120 |
BB1#,RB1# |
1 | ||
| 44662A - RETAINER, REACTION, NO.2 | ||||
| 44663-60010 |
BB1#,RB1# |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-60010 |
BB1#,RB1# |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44653-36160 |
BB1#,RB1# |
1 | ||
| 44662E - ROLLER(FOR REACTION LEVER) | ||||
| 44667-36120 |
BB1#,RB1# |
3 | ||
| 44662F - WASHER(FOR REACTION LEVER) | ||||
| 90201-19272 |
BB1#,RB1# |
1 | ||
| 44662G - RING, SNAP(FOR REACTION RETAINER) | ||||
| 96150-01800 |
BB1#,RB1# |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
BB1#,RB1# |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44681-30170 |
BB1#,RB1# |
1 | ||
| 44697A - NUT(FOR BOOSTER BAND SET) | ||||
| 44686-30030 |
BB1#,RB1# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BB1# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 93319-14008 | ||||
| 94110-70600 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 4702 | ||||
