BB10-QDE (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(7708- )

Click highlighted areas on diagram

diagram 87104 87105 87107 87110 87114 8712914010 87138 8715 8715 87173 87188 8846722030 9009900006 9009902133 9009902134 9009902135 9009904544 9010106255 9165140816 9331515012 9331914010 9338516012 9411040600 9411540500 9451100600
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-36160

BB1#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-22020

BB1#,RB1#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-36081

BB1#,RB1#

 1
87110 - HEATER ASSY
87110-36240

BB1#

 1
87114 - COVER, HEATER
87114-14010

BB1#,RB11,12

 1
87138 - RESISTOR, HEATER BLOWER
87349-36020

BB1#..21S,22S,25S,26S

COMBUSTION HEATER

 1
87138-36080

BB1#

 1
87173 - PROTECTOR, WATER VALVE, HEATER
87173-36020

BB1#,RB1#

 1
87188 - PACKING, HEATER BLOWER MOTOR
87128-22010

BB1#,RB11,12

 1
Common parts
87129-14010
88467-22030
90099-00006
90099-02133
90099-02134
90099-02135
90099-04544
90101-06255
91651-40816
93315-15012
93319-14010
93385-16012
94110-40600
94115-40500
94511-00600
Linked diagrams
8715

ILLUST NO. 2 OF 4(7708- )

Click highlighted areas on diagram

diagram 87104R 87104R 87105R 87105R 87107R 87107R 8711660010 87120 87120 87138R 8716 8716 8716 8716 87431A 87431A 9009900006 9009900812 9009900863 9009902133 9009902134 9009902135 9009919097 9009919288 9017906097 9017906097 9017906097 9017906097 9048028001 9165160820 9321913036 9321914020 9412040800 9451100300 9451140500 9461110800
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-36210

BB1#..21S,22S,25S,26S

 3
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-36210

BB1#..21S,22S,25S,26S

 3
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-12030

BB10,RB11..21S,22S,25S,26S

 3
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-12030

BB10,RB11..21S,22S,25S,26S

 3
87107R - UNIT SUB-ASSY, REAR HEATER
87107-36100

BB1#,RB1#..BC;BB1#,RB1#..DLX

 3
87107R - UNIT SUB-ASSY, REAR HEATER
87107-36100

BB1#,RB1#..BC;BB1#,RB1#..DLX

 3
87120 - HEATER ASSY, REAR
87110-36300

BB10..21S,22S,25S,26S

 3
87120 - HEATER ASSY, REAR
87110-36300

BB10..21S,22S,25S,26S

 3
87138R - RESISTOR, REAR HEATER BLOWER
87138-36060

BB10..21S,22S,25S,26S

 3
87431A - BRACKET, SEAT
87431-36040

BB1#,RB1#..21S,22S,25S,26S

 2
87431A - BRACKET, SEAT
87431-36040

BB1#,RB1#..21S,22S,25S,26S

 2
Common parts
87116-60010
90099-00006
90099-00812
90099-00863
90099-02133
90099-02134
90099-02135
90099-19097
90099-19288
90179-06097
90480-28001
91651-60820
93219-13036
93219-14020
94120-40800
94511-00300
94511-40500
94611-10800
Linked diagrams
8716

ILLUST NO. 4 OF 4(7708- )21S,22S,25S,26S

Click highlighted areas on diagram

diagram 8739836040 8739836040 8739836050 8739836050 8739836060 87409 87409 87459 87473 87473 87474 87498 9009936030 9009936030 9009936030 9165160820 9165160820 9338510620 9338510620 9338510620 9338510620 9338510620 9351004161 9411040600 9411040600 9411040600 9411040600 9411040600 9412040800 9461110600 9461110600 9461110600 9461110600 9461110600 9461110800 9533206020 9613230400 9613230600
Part # Description Qty Price

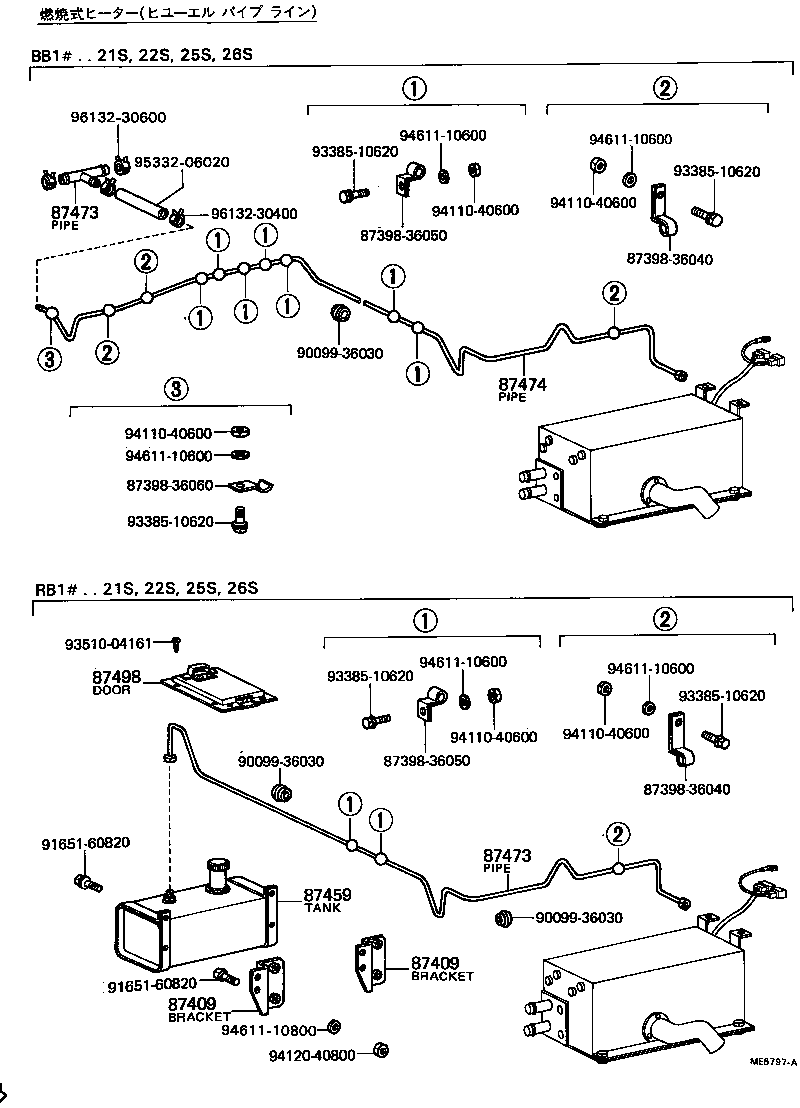

87473 - PIPE, COMBUSTION HEATER FUEL, NO.1
87472-36060

BB1#..21S,22S,25S,26S

 1
87473 - PIPE, COMBUSTION HEATER FUEL, NO.1
87472-36060

BB1#..21S,22S,25S,26S

 1
87474 - PIPE, COMBUSTION HEATER FUEL, NO.2
87472-36030

BB1#..21S,22S,25S,26S

 1
Common parts
87398-36040
87398-36050
87398-36060
90099-36030
91651-60820
93385-10620
93510-04161
94110-40600
94120-40800
94611-10600
94611-10800
95332-06020
96132-30400
96132-30600

ILLUST NO. 3 OF 4(7708- )21S,22S,25S,26S

Click highlighted areas on diagram

diagram 87138 87301 87304 87309A 87310 87341 87341 87341 87342 87343 87390 87390A 87398 87399 87428 87431 87440 87475 87484 9009901221 9009901450 9009901450 9009918020 9161160835 9161160835 9412040800 9412040800 9451100800 9461110800 9461110800 9461310800 9461310800
Part # Description Qty Price

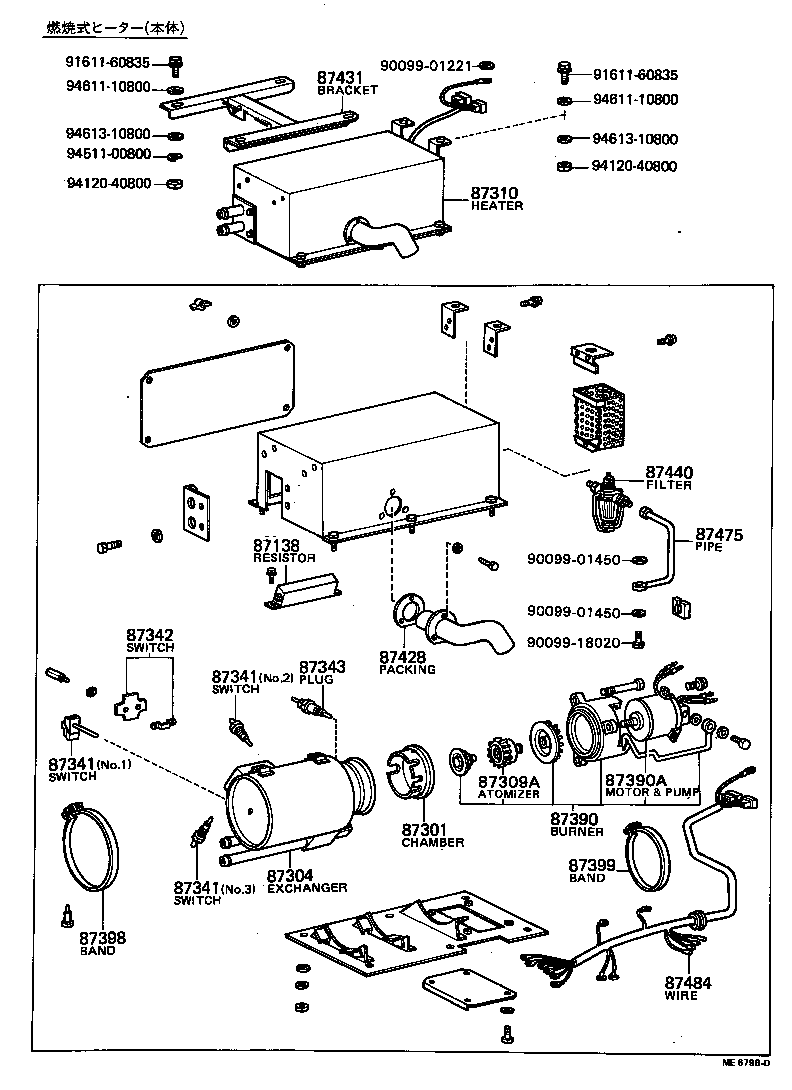

87138 - RESISTOR, HEATER BLOWER
87349-36020

BB1#..21S,22S,25S,26S

COMBUSTION HEATER

 1
87138-36080

BB1#

 1
87301 - CHAMBER SUB-ASSY
87301-36020

BB1#,RB1#..21S,22S,25S,26S

 1
87304 - EXCHANGER, HEATER COMBUSTION HEAT
87302-36020

BB1#,RB1#..21S,22S,25S,26S

 1
87309A - ATOMIZER SUB-ASSY, COMBUSTION HEATER
87309-36030

BB1#,RB1#..21S,22S,25S,26S

 1
87310 - HEATER ASSY, COMBUSTION
87320-36010

BB1#..21S,22S,25S,26S

 1
87341 - SWITCH, THERMOSTATIC COMBUSTION HEATER
87341-36040

BB1#,RB1#..21S,22S,25S,26S

NO.3,GREEN

 1
87341-36030

BB1#,RB1#..21S,22S,25S,26S

NO.2,RED

 1
87341-36020

BB1#,RB1#..21S,22S,25S,26S

NO.1

 1
87341 - SWITCH, THERMOSTATIC COMBUSTION HEATER
87341-36040

BB1#,RB1#..21S,22S,25S,26S

NO.3,GREEN

 1
87341-36030

BB1#,RB1#..21S,22S,25S,26S

NO.2,RED

 1
87341-36020

BB1#,RB1#..21S,22S,25S,26S

NO.1

 1
87341 - SWITCH, THERMOSTATIC COMBUSTION HEATER
87341-36040

BB1#,RB1#..21S,22S,25S,26S

NO.3,GREEN

 1
87341-36030

BB1#,RB1#..21S,22S,25S,26S

NO.2,RED

 1
87341-36020

BB1#,RB1#..21S,22S,25S,26S

NO.1

 1
87342 - SWITCH EMERGENCY, COMBUSTION HEATER
87342-36020

BB1#,RB1#..21S,22S,25S,26S

 1
87343 - PLUG, COMBUSTION HEATER GLOW
87343-10010

BB1#,RB1#..21S,22S,25S,26S

 1
87390 - BURNER ASSY, COMBUSTION HEATER
87330-36030

BB1#..21S,22S,25S,26S

 1
87390A - PUMP AND MOTOR ASSY, COMBUSTION HEATER
87390-36010

BB1#..21S,22S,25S,26S

 1
87398 - BAND ASSY (FOR COMBUSTION HEATER)
87398-36020

BB1#,RB1#..21S,22S,25S,26S

 1
87399 - BAND ASSY (FOR COMBUSTION HEATER)
87398-36030

BB1#,RB1#..21S,22S,25S,26S

 1
87428 - PACKING (FOR COMBUSTION HEATER)
87429-36020

BB1#,RB1#..21S,22S,25S,26S

 1
87431 - BRACKET, COMBUSTION HEATER, NO.1
87431-36020

BB1#,RB1#..21S,22S,25S,26S

 1
87440 - FILTER ASSY, FUEL (FOR COMBUSTION HEATER)
87440-36010

BB1#,RB1#..21S,22S,25S,26S

 1
87475 - PIPE, COMBUSTION HEATER FUEL, NO.3
87377-36030

BB1#,RB1#..21S,22S,25S,26S

 1
87484 - WIRE, HEATER
87344-36010

BB1#,RB1#..21S,22S,25S,26S

 1
Common parts
90099-01221
90099-01450
90099-18020
91611-60835
94120-40800
94511-00800
94611-10800
94613-10800
