YX80Y-BTHRP (1988)
Toyota Chaser

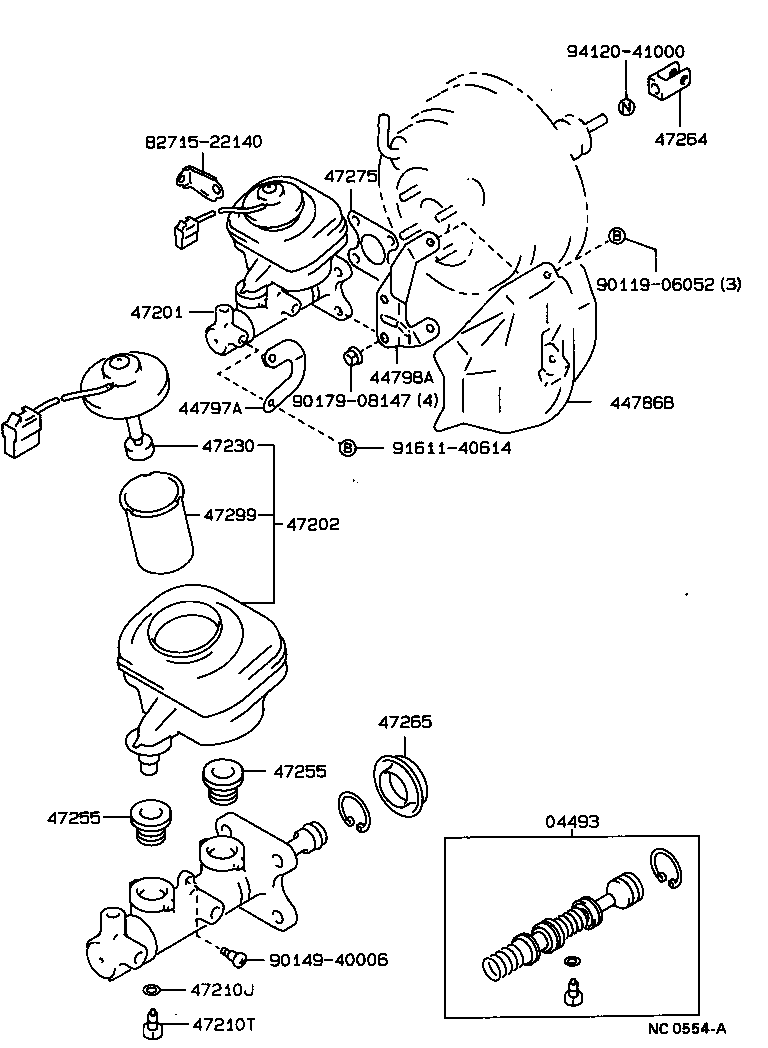

ILLUST NO. 1 OF 2(8808- )GT,KYO,XG,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-22190 |
LX80,SX80,YX80..KYO *41 |
1 | ||
| 04493-22180 |
LX80,SX80,YX80..KYO *42 |
1 | ||
| 44786B - INSULATOR, BRAKE MASTER CYLINDER HEAT | ||||
| 44786-22060 |
SX80,YX80..KYO |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-22661 |
LX80,SX80,YX80..KYO *41 |
1 | ||
| 47200-2A680 |
LX80,SX80,YX80..KYO *42 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-22280 |
LX80,SX80,YX80..KYO |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
GX81,LX80,SX80,YX80 |
1 | ||
| 90430-06104 |
JZX81..AVT;GX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
JZX81..AVT;GX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-22020 |
LX80,SX80,YX80..KYO |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-12020 |
LX80,SX80,YX80..KYO *42 |
1 | ||
| 47265-20050 |
LX80,SX80,YX80..KYO *41 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-22030 |
LX80,SX80,YX80..KYO *42 |
1 | ||
| 47275-24010 |
LX80,SX80,YX80..KYO *41 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-32010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 82715-22140 | ||||
| 90119-06052 | ||||
| 90149-40006 | ||||
| 90179-08147 | ||||
| 91611-40614 | ||||
| 94120-41000 | ||||

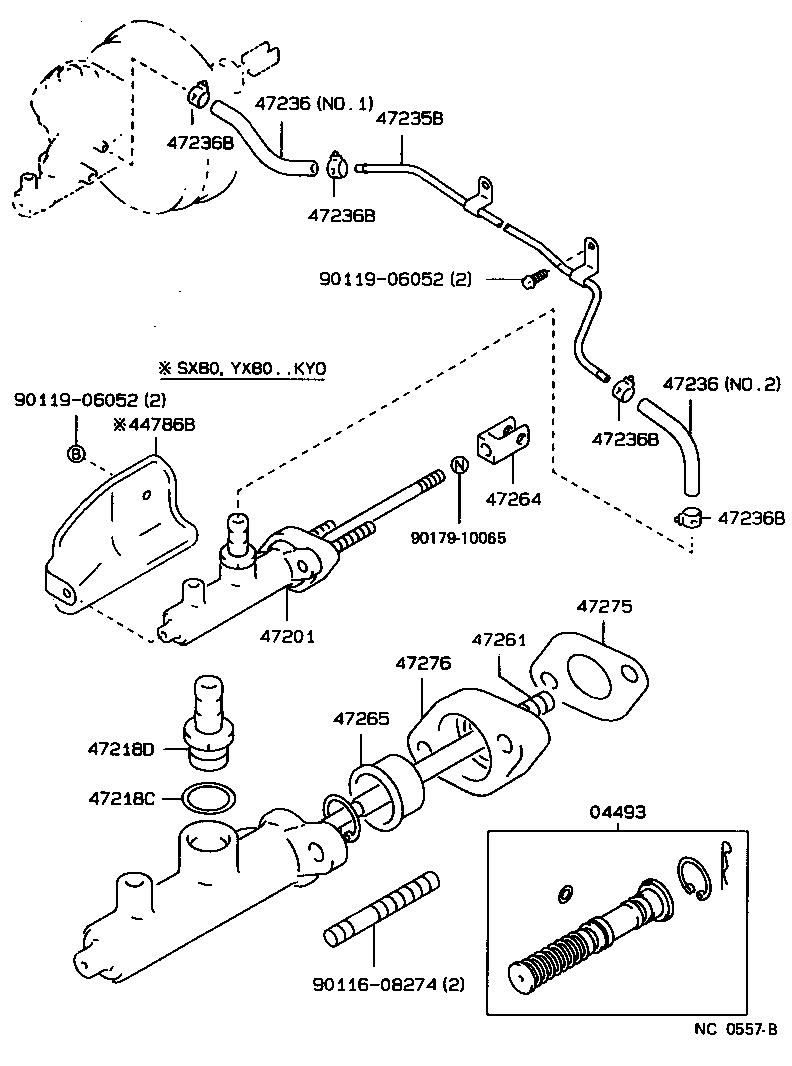

ILLUST NO. 2 OF 2(8808- )KYO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-22190 |
LX80,SX80,YX80..KYO *41 |
1 | ||
| 04493-22180 |
LX80,SX80,YX80..KYO *42 |
1 | ||
| 44786B - INSULATOR, BRAKE MASTER CYLINDER HEAT | ||||
| 44786-22060 |
SX80,YX80..KYO |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-22661 |
LX80,SX80,YX80..KYO *41 |
1 | ||
| 47200-2A680 |
LX80,SX80,YX80..KYO *42 |
1 | ||
| 47218C - GASKET(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90430-16242 |
LX80,SX80,YX80..KYO |
1 | ||
| 47218D - UNION(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90404-16307 |
LX80,SX80,YX80..KYO |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-22030 |
SX80,YX80..KYO |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47236-22060 |
SX80,YX80..KYO NO.2 |
1 | ||
| 47236-22050 |
SX80,YX80..KYO NO.1 |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47236-22060 |
SX80,YX80..KYO NO.2 |
1 | ||
| 47236-22050 |
SX80,YX80..KYO NO.1 |
1 | ||
| 47236B - CLAMP(FOR RESERVOIR TUBE) | ||||
| 90467-16001 |
LX80,SX80,YX80..KYO |
4 | ||
| 47236B - CLAMP(FOR RESERVOIR TUBE) | ||||
| 90467-16001 |
LX80,SX80,YX80..KYO |
4 | ||
| 47236B - CLAMP(FOR RESERVOIR TUBE) | ||||
| 90467-16001 |
LX80,SX80,YX80..KYO |
4 | ||
| 47236B - CLAMP(FOR RESERVOIR TUBE) | ||||
| 90467-16001 |
LX80,SX80,YX80..KYO |
4 | ||
| 47261 - ROD, MASTER CYLINDER PUSH | ||||
| 47261-22060 |
LX80,SX80,YX80..KYO 長さ=184.2 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-12020 |
LX80,SX80,YX80..KYO *42 |
1 | ||
| 47265-20050 |
LX80,SX80,YX80..KYO *41 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-22030 |
LX80,SX80,YX80..KYO *42 |
1 | ||
| 47275-24010 |
LX80,SX80,YX80..KYO *41 |
1 | ||
| 47276 - BRACKET, BRAKE MASTER CYLINDER | ||||
| 47276-22020 |
LX80,SX80,YX80..KYO |
1 | ||
| Common parts | ||||
| 90116-08274 | ||||
| 90119-06052 | ||||
| 90179-10065 | ||||
