YX70Y-DTMRP (1984)

Toyota Chaser

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

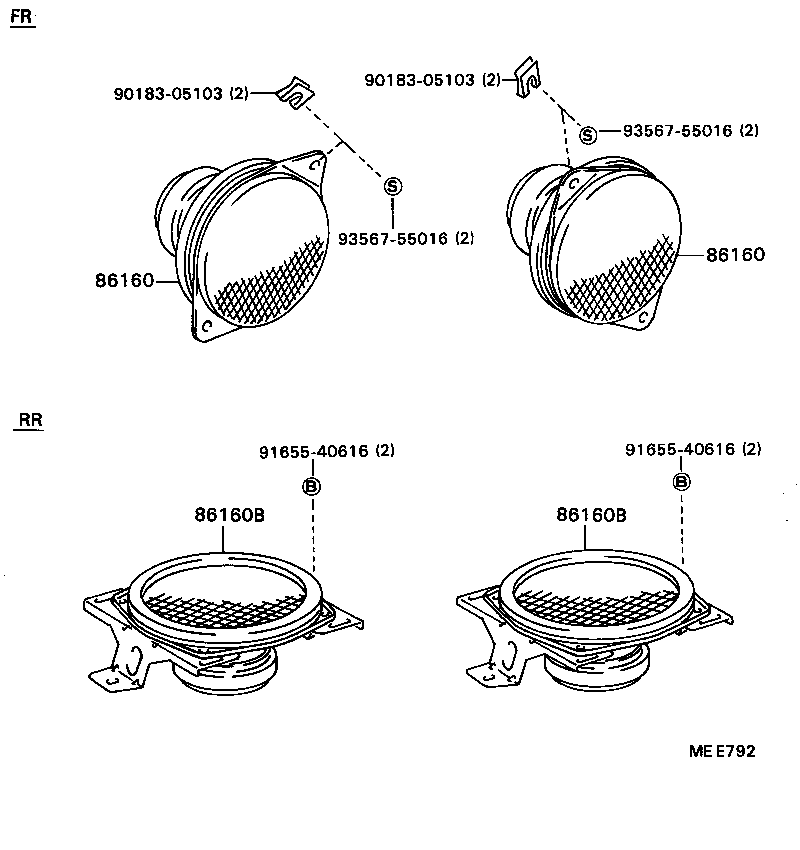

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 9018305103 9018305103 9165540616 9165540616 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

GX71..5F..TWT;GX71,LX70,MX71,SX70,YX70..CBR,DSL,EFI,LPG,TBO,TD

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

GX71..5F..TWT;GX71,LX70,MX71,SX70,YX70..CBR,DSL,EFI,LPG,TBO,TD

 2
Common parts
90183-05103
91655-40616
93567-55016
