YX70Y-DTMRP (1984)

Toyota Chaser

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

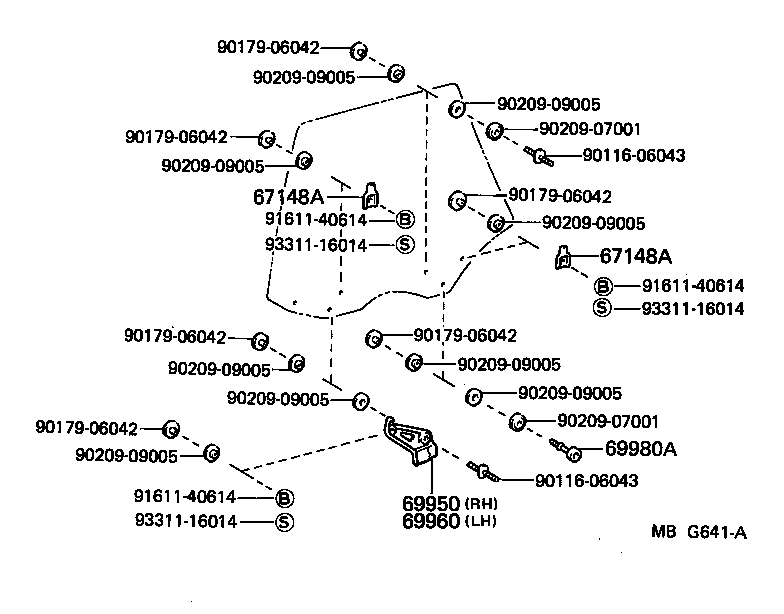

ILLUST NO. 1 OF 2(8408- )

Click highlighted areas on diagram

diagram 67148A 67148A 69950 69960 69980A 9011606043 9011606043 9017906042 9017906042 9017906042 9017906042 9017906042 9017906042 9020907001 9020907001 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9161140614 9161140614 9161140614 9331116014 9331116014 9331116014
Part # Description Qty Price
67148A - STABILIZER, REAR DOOR GLASS MALE, RH
68149-14010

GX71,LX70,MX71,SX70,YX7#

 4
67148A - STABILIZER, REAR DOOR GLASS MALE, RH
68149-14010

GX71,LX70,MX71,SX70,YX7#

 4
69950 - BRACKET SUB-ASSY, REAR DOOR GLASS, RH
69905-22030

GX71,LX70,MX71,SX70,YX7#

 1
69960 - BRACKET SUB-ASSY, REAR DOOR GLASS, LH
69906-22020

GX71,LX70,MX71,SX70,YX7#

 1
69980A - ROLLER ASSY, REAR DOOR GLASS GUIDE
69980-22020

GX71,LX70,MX71,SX70,YX7#

 2
Common parts
90116-06043
90179-06042
90209-07001
90209-09005
91611-40614
93311-16014

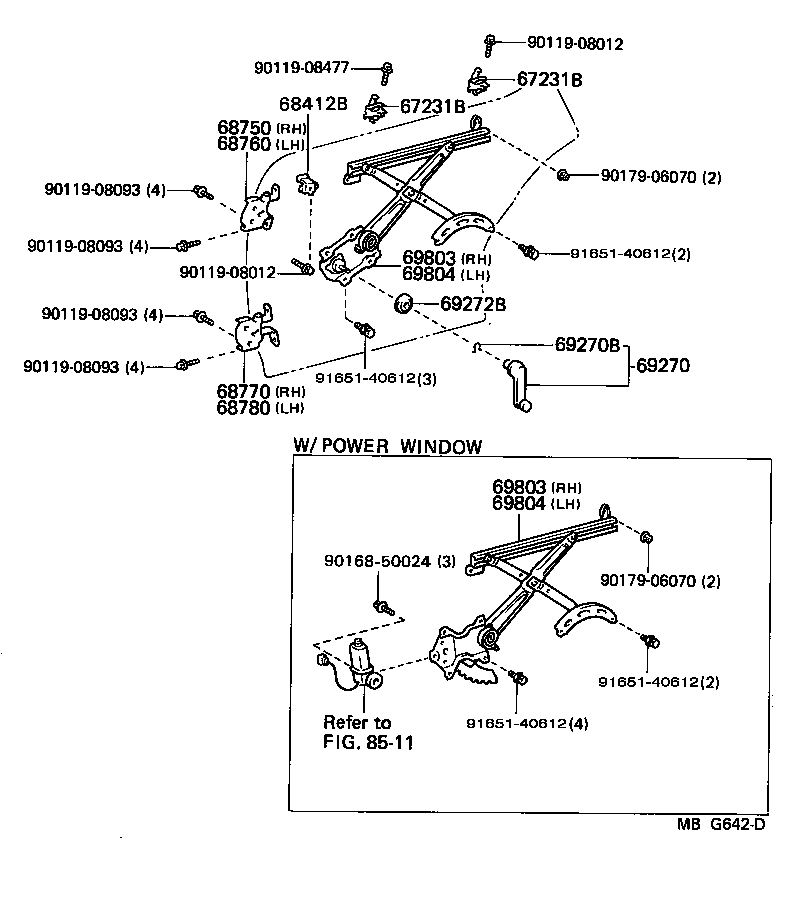

ILLUST NO. 2 OF 2(8408- )

Click highlighted areas on diagram

diagram 67231B 67231B 68412B 68750 68760 68770 68780 69270 69270B 69272B 69803 69803 69804 69804 8511 9011908012 9011908012 9011908093 9011908093 9011908093 9011908093 9011908477 9016850024 9017906070 9017906070 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
67231B - SUPPORT, REAR DOOR TRIM
67231-14030

GX71,LX70,MX71,SX70,YX7#

 4
67231B - SUPPORT, REAR DOOR TRIM
67231-14030

GX71,LX70,MX71,SX70,YX7#

 4
68412B - STOP SUB-ASSY, DOOR WINDOW, UPPER
67211-30040

GX71,LX70,MX71,SX70,YX7#

 4
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20050

GX71,LX70,MX71,SX70,YX7#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20040

GX71,LX70,MX71,SX70,YX7#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-20040

GX71,LX70,MX71,SX70,YX7#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-20040

GX71,LX70,MX71,SX70,YX7#

 1
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-2203003

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

GRAY,COOL GRAY,TRIM1#

 2
69260-2203003

GX71,LX70,SX70,YX70..(KYO,SXL,XG,XL)..(CBR,DSL,EFI,LPG)

GRAY,COOL GRAY,TRIM1#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

GX71,LX70,SX70,YX70..(KYO,SXL,XG,XL)..(CBR,DSL,EFI,LPG)

 2
90520-01002

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-2201008

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

NATURAL,NATURAL WHITE

 2
69285-2201008

GX71,LX70,SX70,YX70..(KYO,SXL,XG,XL)..(CBR,DSL,EFI,LPG)

NATURAL,NATURAL WHITE

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-22160

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-22160

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-22160

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-22160

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
Common parts
90119-08012
90119-08093
90119-08477
90168-50024
90179-06070
91651-40612
Linked diagrams
8511
