YX70Y-DTMRP (1984)
Toyota Chaser
Production
Aug 1984
-
Aug 1986
Engine
2YPU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408-8508)2YPU

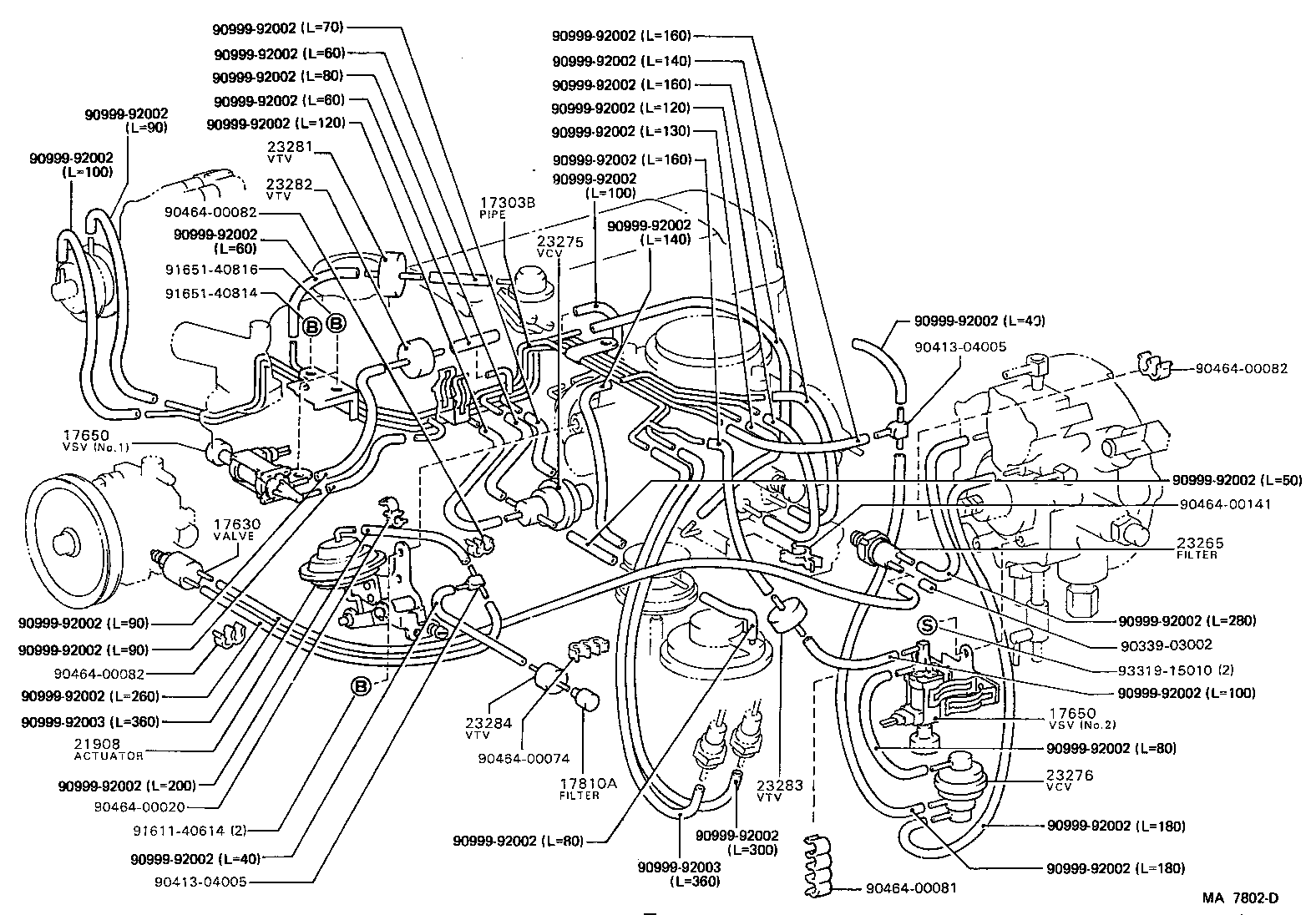

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-72010 |
2YPU,3YPU..YX7# |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15030 |
2YPU,3YPU..YX7# W/POWER STEERING |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-30050 |
2YPU,3YPU..YX7# NO.2 |
1 | ||
| 89570-20200 |
2YPU,3YPU..YX7# NO.1 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-30050 |
2YPU,3YPU..YX7# NO.2 |
1 | ||
| 89570-20200 |
2YPU,3YPU..YX7# NO.1 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
2YPU,3YPU..YX7# W/POWER STEERING |
1 | ||
| 21908 - ACTUATOR SUB-ASSY, IDLE-UP | ||||
| 21908-72010 |
2YPU,3YPU..YX7# W/POWER STEERING OR COOLER |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11029 |
2YPU,3YPU..YX7# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03034 |
2YPU,3YPU..YX7# |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03142 |
2YPU,3YPU..YX7# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01041 |
2YPU,3YPU..YX7# |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01019 |
2YPU..YX70 |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01015 |
2YPU,3YPU..YX7# |
1 | ||
| 23284 - VALVE, VACUUM TRANSMITTING, NO.4 | ||||
| 90925-01041 |
2YPU,3YPU..YX7# W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00020 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-40614 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 93319-15010 | ||||
(8408- )2YPU,3YPU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
