YX70Y-DTMRP (1984)

Toyota Chaser

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )2YPU,3YPU

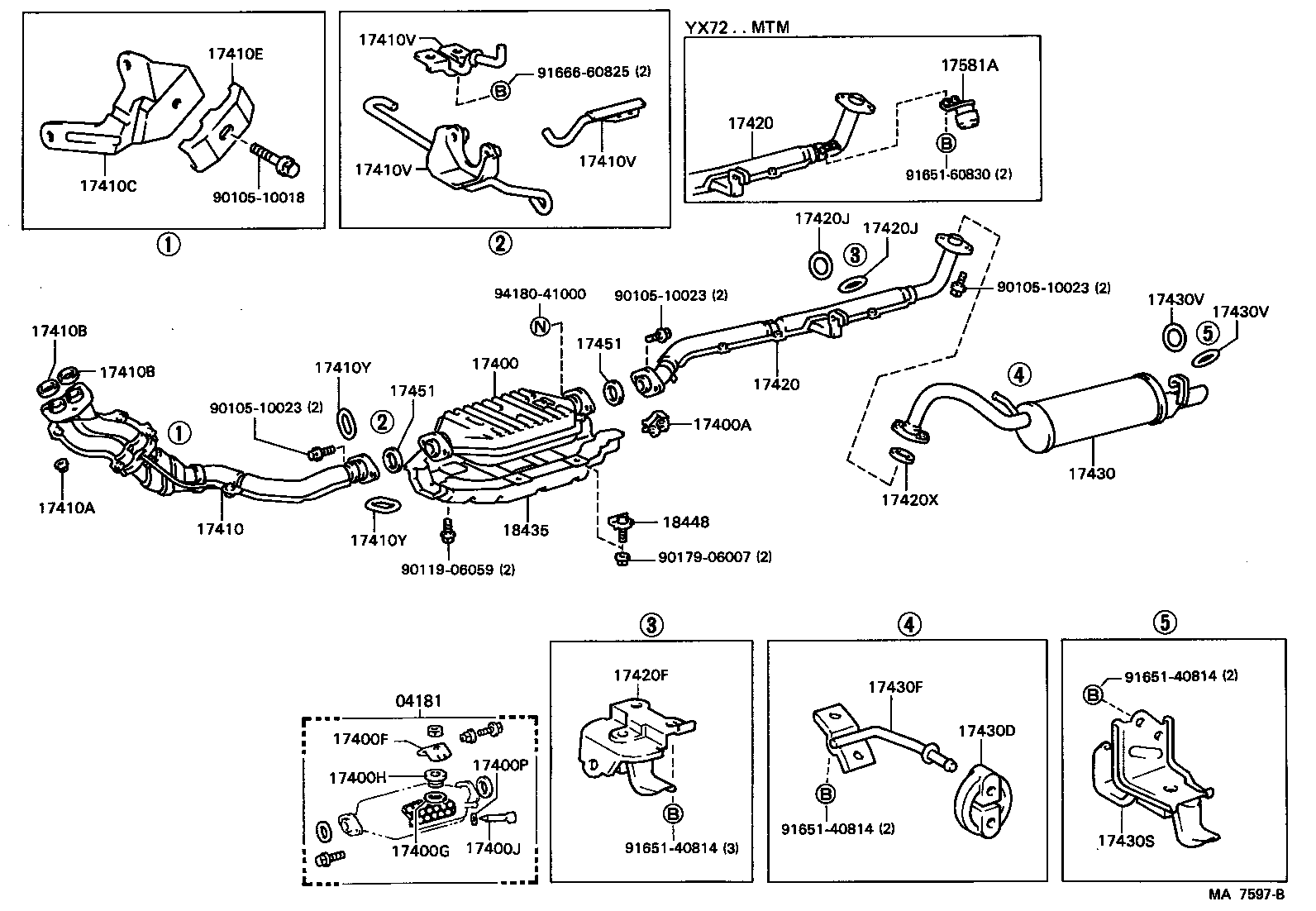

Click highlighted areas on diagram

diagram 04181 17400 17400A 17400F 17400G 17400H 17400J 17400P 17410 17410A 17410B 17410B 17410C 17410E 17410V 17410V 17410V 17410Y 17410Y 17420 17420 17420F 17420J 17420J 17420X 17430 17430D 17430F 17430S 17430V 17430V 17451 17451 17581A 18435 18448 9010510018 9010510023 9010510023 9010510023 9011906059 9017906007 9165140814 9165140814 9165140814 9165160830 9166660825 9418041000
Part # Description Qty Price
04181 - PELLET KIT
04181-73010

2YPU,3YPU..YX7#

 1
17400 - CONVERTER ASSY, W/CATALYST
17400-73010

2YPU,3YPU..YX7#

 1
17400A - FLANGE, THERMOSENSER INLET
18491-38070

2YPU..YX70

 1
17400F - PLATE, CATALYZER INLET PLUG LOCK
18493-38011

2YPU,3YPU..YX7#

 1
17400G - GASKET, CATALYZER INLET
18494-38010

2YPU,3YPU..YX7#

 1
17400H - PLUG, W/HEAD STRAIGHT SCREW(FOR CATALYZER INLET)
90341-24093

2YPU,3YPU..YX7#

 1
17400J - GUIDE, CATALYTIC CONVERTER SENSOR
18492-45010

2YPU,3YPU..YX7#

 1
17400P - GASKET(FOR CATALYTIC CONVERTER SENSOR GUIDE)
90430-08252

2YPU,3YPU..YX7#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-72040

2YPU..YX70

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1GEU,1GG#,2L#,1SU,MTEU,2YPU,3YPU..GX71,LX70,MX71,SX70,YX7#

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

1SU,2YPU,3YPU..SX70,YX7#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

1SU,2YPU,3YPU..SX70,YX7#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-72020

2YPU..YX70

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04030

1SU,2YPU,3YPU..SX70,YX7#

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17503-72040

2YPU,3YPU..YX7#

ENGINE REAR MOUNTING

 1
17505-72020

2YPU,3YPU..YX7#

CCO SUPPORT

 1
17504-72010

2YPU,3YPU..YX7#

SIDE MEMBER

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17503-72040

2YPU,3YPU..YX7#

ENGINE REAR MOUNTING

 1
17505-72020

2YPU,3YPU..YX7#

CCO SUPPORT

 1
17504-72010

2YPU,3YPU..YX7#

SIDE MEMBER

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17503-72040

2YPU,3YPU..YX7#

ENGINE REAR MOUNTING

 1
17505-72020

2YPU,3YPU..YX7#

CCO SUPPORT

 1
17504-72010

2YPU,3YPU..YX7#

SIDE MEMBER

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-29004

2YPU,3YPU..YX7#

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-29004

2YPU,3YPU..YX7#

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-72020

2YPU..YX70

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-72020

2YPU..YX70

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17506-63020

2L#,1SU,2YPU,3YPU..LX70,SX70,YX7#

 1
17420J - BOLT OR RING, EXHAUST PIPE CENTER
90301-33001

2YPU,3YPU..YX7#

 2
17420J - BOLT OR RING, EXHAUST PIPE CENTER
90301-33001

2YPU,3YPU..YX7#

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

2L,1SU,2YPU,3YPU..LX70,SX70,YX7#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54510

2L,2YPU,3YPU..LX70,YX7#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63020

1GEU,1GG#,2L#,1SU,MTEU,2YPU,3YPU..GX71,LX70,MX71,SX70,YX7#

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17508-63020

2L#,1SU,2YPU,3YPU..LX70,SX70,YX7#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17507-70010

1GEU,1GG#,2L#,1SU,MTEU,2YPU,3YPU..GX71,LX70,MX71,SX70,YX7#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-73010

2YPU,3YPU..YX7#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-73010

2YPU,3YPU..YX7#

 2
17451 - GASKET, EXHAUST PIPE
90917-06018

2YPU,3YPU..YX7#

FRONT

 1
90917-06004

2YPU,3YPU..YX7#

REAR

 1
17451 - GASKET, EXHAUST PIPE
90917-06018

2YPU,3YPU..YX7#

FRONT

 1
90917-06004

2YPU,3YPU..YX7#

REAR

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-26011

2YPU,3YPU..YX7#

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-26020

2YPU,3YPU..YX7#

 2
Common parts
90105-10018
90105-10023
90119-06059
90179-06007
91651-40814
91651-60830
91666-60825
94180-41000
