TX60-DTKNS (1980)
Toyota Chaser
(8009-8208)13TU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28011-26042 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-27030 |
13TU..TX60 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100-27020 |
13TU..TX60 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-27020 |
13TU..TX60 12V 0.8KW |
1 | ||
| 28110-27030 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26070 |
13TU,1GEU..GX6#,TX60 12V 1.0KW |
1 | ||
| 28120-26140 |
13TU..TX60 12V 0.8KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-37010 |
21RU,13TU,18RGEU..RX6#,TX60 12V 0.8KW |
1 | ||
| 28130-26070 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28140-26070 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15012 |
13TU,MTEU..MX61,TX60 12V 0.8KW |
1 | ||
| 28150-27030 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28150-27031 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28153 - COVER, MAGNET SWITCH | ||||
| 28159-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28160-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
13TU,MTEU..MX61,TX60 12V 0.8KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
13TU,MTEU..MX61,TX60 12V 0.8KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-27030 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28199-26131 |
13TU..TX60 12V 0.8KW |
1 | ||
| 28199-27031 |
13TU..TX60 12V 1.0KW |
1 | ||
| Common parts | ||||
| 28138-26142 | ||||
| 90099-00926 | ||||
| 90099-01467 | ||||
| 90099-04272 | ||||
| 90099-04921 | ||||
| 90099-05118 | ||||
| 90099-05148 | ||||
| 90099-12405 | ||||
| 90179-08146 | ||||
| 91611-61050 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(8009- )L,2LTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28011-26042 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-27030 |
13TU..TX60 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100-27020 |
13TU..TX60 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-27020 |
13TU..TX60 12V 0.8KW |
1 | ||
| 28110-27030 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26070 |
13TU,1GEU..GX6#,TX60 12V 1.0KW |
1 | ||
| 28120-26140 |
13TU..TX60 12V 0.8KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-37010 |
21RU,13TU,18RGEU..RX6#,TX60 12V 0.8KW |
1 | ||
| 28130-26070 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02323 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28140-26070 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15012 |
13TU,MTEU..MX61,TX60 12V 0.8KW |
1 | ||
| 28150-27030 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28150-27031 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28160-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW,NO.2 |
1 | ||
| 90099-10113 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW,NO.2 |
1 | ||
| 90099-10113 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90119-12018 | ||||
| 90179-08026 | ||||
| 93219-15008 | ||||
| 93319-15008 | ||||
| 94115-51200 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||

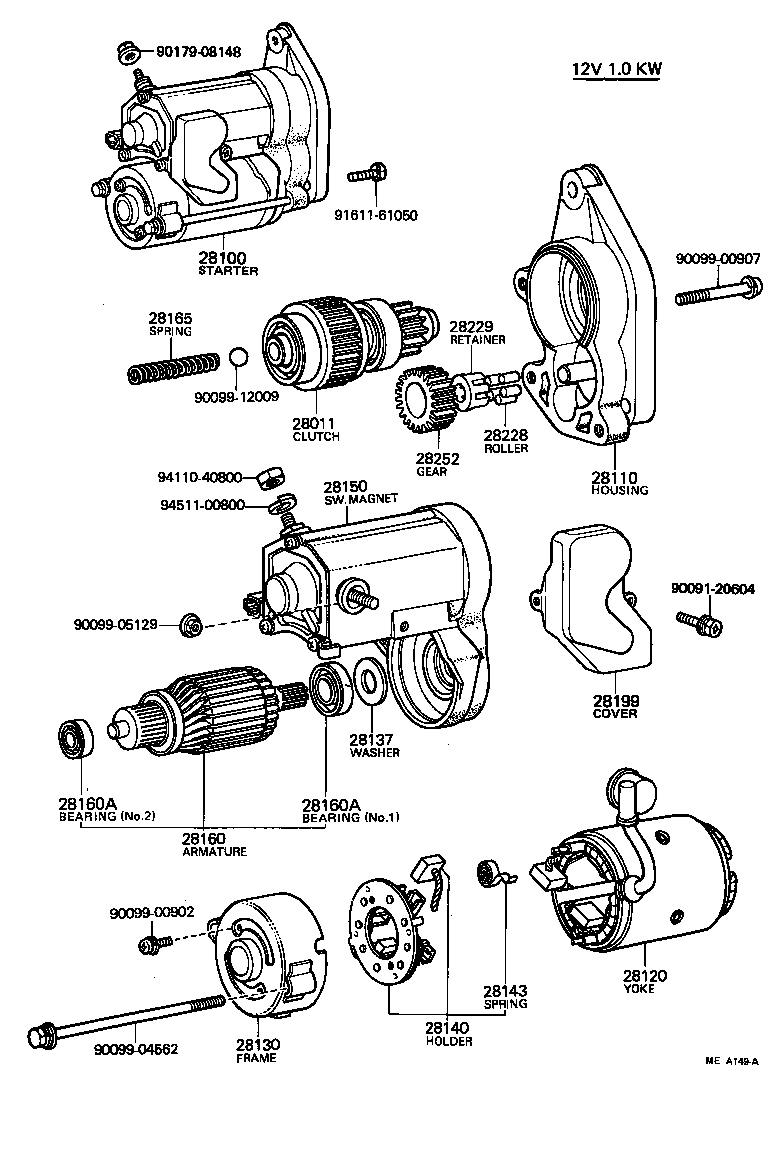

(8009-8208)13TU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28011-26042 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-27030 |
13TU..TX60 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100-27020 |
13TU..TX60 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-27020 |
13TU..TX60 12V 0.8KW |
1 | ||
| 28110-27030 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26070 |
13TU,1GEU..GX6#,TX60 12V 1.0KW |
1 | ||
| 28120-26140 |
13TU..TX60 12V 0.8KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-37010 |
21RU,13TU,18RGEU..RX6#,TX60 12V 0.8KW |
1 | ||
| 28130-26070 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02323 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28140-26070 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15012 |
13TU,MTEU..MX61,TX60 12V 0.8KW |
1 | ||
| 28150-27030 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28150-27031 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28160-15010 |
21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60 12V 0.8KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW,NO.2 |
1 | ||
| 90099-10113 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW,NO.2 |
1 | ||
| 90099-10113 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-27030 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28199-26131 |
13TU..TX60 12V 0.8KW |
1 | ||
| 28199-27031 |
13TU..TX60 12V 1.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
13TU,1G#,1SU..GX6#,SX60,TX60 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90091-20604 | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08148 | ||||
| 91611-61050 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
