TX60-DEKNS (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )13TU

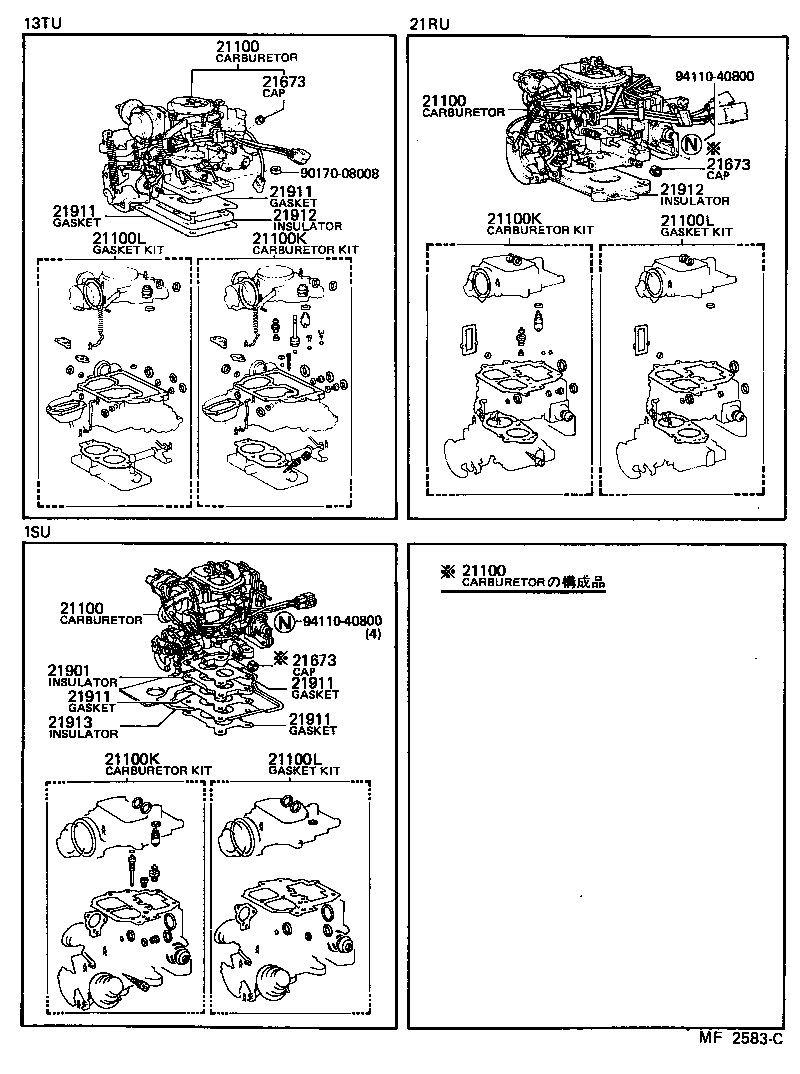

Click highlighted areas on diagram

diagram 21100 21100 21100 21100 21100K 21100K 21100K 21100L 21100L 21100L 21673 21673 21673 21901 21911 21911 21911 21911 21911 21912 21912 21913 9017008008 9411040800 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-18130

13TU..TX60..4F

 1
21100-18130

13TU..TX60..4F

 1
21100-18130

13TU..TX60..4F

 1
21100 - CARBURETOR ASSY
21100-18130

13TU..TX60..4F

 1
21100-18130

13TU..TX60..4F

 1
21100-18130

13TU..TX60..4F

 1
21100 - CARBURETOR ASSY
21100-18130

13TU..TX60..4F

 1
21100-18130

13TU..TX60..4F

 1
21100-18130

13TU..TX60..4F

 1
21100 - CARBURETOR ASSY
21100-18130

13TU..TX60..4F

 1
21100-18130

13TU..TX60..4F

 1
21100-18130

13TU..TX60..4F

 1
21100K - CARBURETOR KIT
04211-18080

13TU..TX60..4F

 1
04211-18080

13TU..TX60..4F

 1
04211-18080

13TU..TX60..4F

 1
21100K - CARBURETOR KIT
04211-18080

13TU..TX60..4F

 1
04211-18080

13TU..TX60..4F

 1
04211-18080

13TU..TX60..4F

 1
21100K - CARBURETOR KIT
04211-18080

13TU..TX60..4F

 1
04211-18080

13TU..TX60..4F

 1
04211-18080

13TU..TX60..4F

 1
21100L - GASKET KIT, CARBURETOR
04212-18010

13TU..TX60..4F

 1
04212-18010

13TU..TX60..4F

 1
04212-18010

13TU..TX60..4F

 1
21100L - GASKET KIT, CARBURETOR
04212-18010

13TU..TX60..4F

 1
04212-18010

13TU..TX60..4F

 1
04212-18010

13TU..TX60..4F

 1
21100L - GASKET KIT, CARBURETOR
04212-18010

13TU..TX60..4F

 1
04212-18010

13TU..TX60..4F

 1
04212-18010

13TU..TX60..4F

 1
21673 - CAP, IDLE LIMIT
21673-38020

13TU..TX60

 1
21673-38020

13TU..TX60

 1
21673-38020

13TU..TX60

 1
21673-13280

13TU..TX60

 1
21673-13280

13TU..TX60

 1
21673-13280

13TU..TX60

 1
21673 - CAP, IDLE LIMIT
21673-38020

13TU..TX60

 1
21673-38020

13TU..TX60

 1
21673-38020

13TU..TX60

 1
21673-13280

13TU..TX60

 1
21673-13280

13TU..TX60

 1
21673-13280

13TU..TX60

 1
21673 - CAP, IDLE LIMIT
21673-38020

13TU..TX60

 1
21673-38020

13TU..TX60

 1
21673-38020

13TU..TX60

 1
21673-13280

13TU..TX60

 1
21673-13280

13TU..TX60

 1
21673-13280

13TU..TX60

 1
21911 - GASKET, CARBURETOR
21911-26010

13TU..TX60

 2
21911-26010

13TU..TX60

 2
21911-26010

13TU..TX60

 2
21911 - GASKET, CARBURETOR
21911-26010

13TU..TX60

 2
21911-26010

13TU..TX60

 2
21911-26010

13TU..TX60

 2
21911 - GASKET, CARBURETOR
21911-26010

13TU..TX60

 2
21911-26010

13TU..TX60

 2
21911-26010

13TU..TX60

 2
21911 - GASKET, CARBURETOR
21911-26010

13TU..TX60

 2
21911-26010

13TU..TX60

 2
21911-26010

13TU..TX60

 2
21911 - GASKET, CARBURETOR
21911-26010

13TU..TX60

 2
21911-26010

13TU..TX60

 2
21911-26010

13TU..TX60

 2
21912 - INSULATOR, CARBURETOR HEAT
21912-26021

13TU..TX60

 1
21912-26021

13TU..TX60

 1
21912-26021

13TU..TX60

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-26021

13TU..TX60

 1
21912-26021

13TU..TX60

 1
21912-26021

13TU..TX60

 1
Common parts
90170-08008
94110-40800
