TX60-DEKNS (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )L,2LTE

Click highlighted areas on diagram

diagram 11301 11301B 11301C 11302 11302E 11305 11305A 11305B 11312 11328 11329 11354 11355 11355A 11381 11381A 11383 11384 11391 11492A 9010906017 9021008019 9048007001 9095001312 9161140814 9161140825 9161140828 9161160830 9161160840 9161161020 9454100600 9671001015 9671119015
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-28010

13TU..TX60

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-25011

13TU..TX60

 1
11328-25012

13TU..TX60

 1
11355 - PLATE, REAR END
11355-25012

13TU..TX60..4F

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-25010

13TU..TX60

 1
11381A - SEAL, ENGINE REAR OIL
90311-75113

13TU..TX60

HTC 75 100 13

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

13TU..TX60

 1
Common parts
90109-06017
90210-08019
90480-07001
90950-01312
91611-40814
91611-40825
91611-40828
91611-60830
91611-60840
91611-61020
94541-00600
96710-01015
96711-19015

(8009-8208)13TU

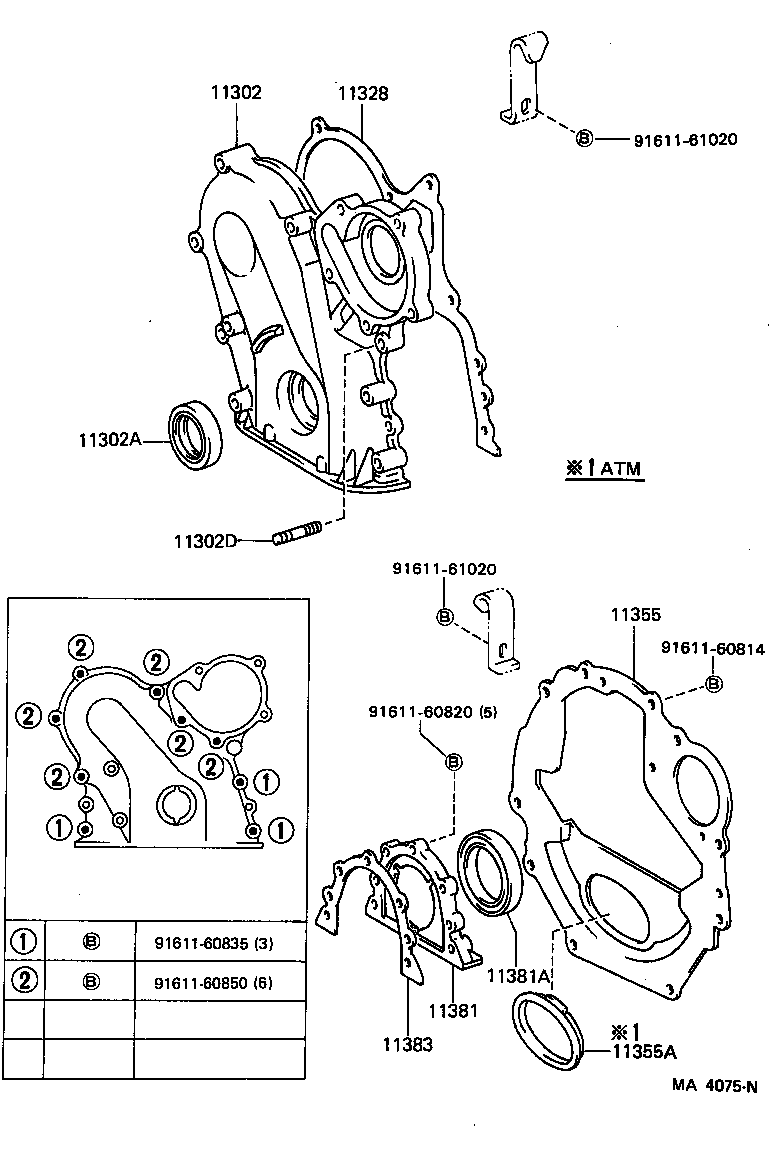

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11328 11355 11355A 11381 11381A 11383 9161160814 9161160820 9161160835 9161160850 9161161020 9161161020
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-28010

13TU..TX60

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38013

13TU..TX60

 1
90311-38022

13TU..TX60

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08057

13TU..TX60

L=28,S=13 & 13

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-25011

13TU..TX60

 1
11328-25012

13TU..TX60

 1
11355 - PLATE, REAR END
11355-25012

13TU..TX60..4F

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-25010

13TU..TX60

 1
11381A - SEAL, ENGINE REAR OIL
90311-75113

13TU..TX60

HTC 75 100 13

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

13TU..TX60

 1
Common parts
91611-60814
91611-60820
91611-60835
91611-60850
91611-61020
