TX60-DEKDS (1980)
Toyota Chaser

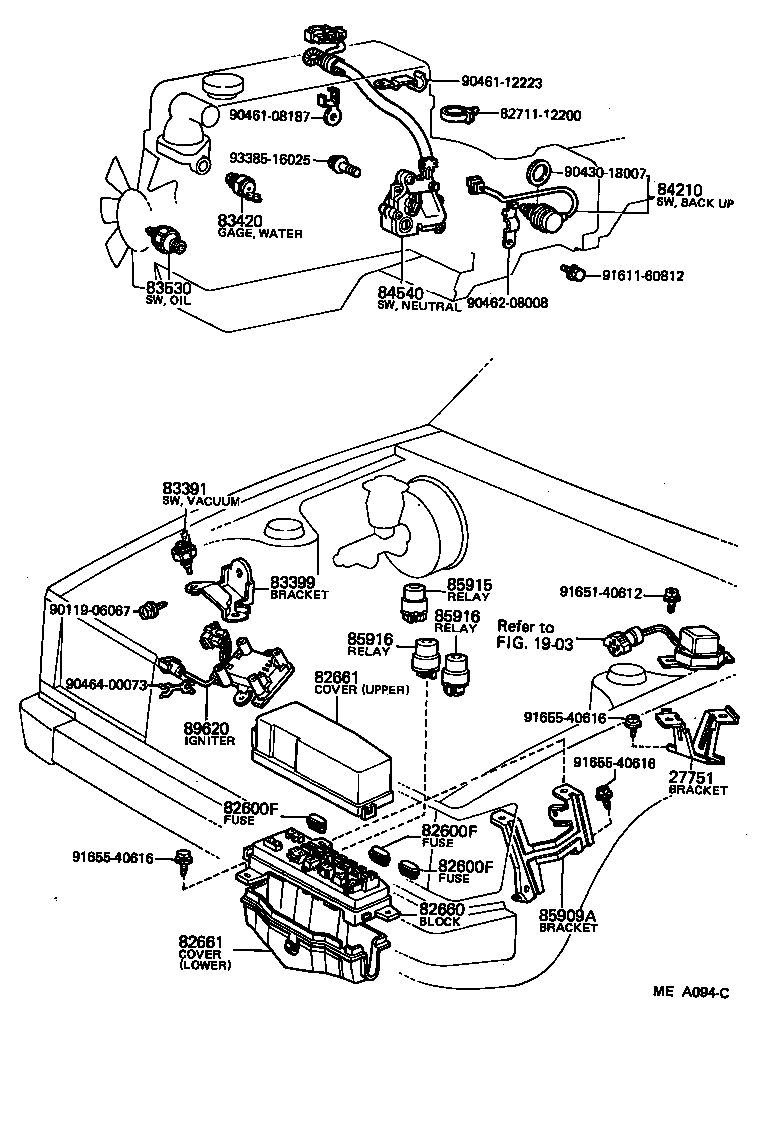

ILLUST NO. 1 OF 7(8009-8208)TX60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27751 - BRACKET, GENERATOR REGULATOR | ||||
| 27751-70010 |
21RU,13TU,1SU..RX60,SX60,TX60 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 5A,5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 5A,5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 5A,5A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22080 |
LX60,RX60,SX60,TX60 YAZAKI |
1 | ||
| 82660-22071 |
LX60,RX60,SX60,TX60 SUMITOMO |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22011 |
GX6#,LX60,MX61,RX6#,TX60 UPR,SUMITOMO |
1 | ||
| 82661-22060 |
GX6#,LX60,MX61,RX6#,TX60 LWR,YAZAKI |
1 | ||
| 82661-22040 |
GX6#,LX60,MX61,RX6#,TX60 UPR,YAZAKI |
1 | ||
| 82661-22030 |
GX6#,LX60,MX61,RX6#,TX60 LWR,SUMITOMO |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22011 |
GX6#,LX60,MX61,RX6#,TX60 UPR,SUMITOMO |
1 | ||
| 82661-22060 |
GX6#,LX60,MX61,RX6#,TX60 LWR,YAZAKI |
1 | ||
| 82661-22040 |
GX6#,LX60,MX61,RX6#,TX60 UPR,YAZAKI |
1 | ||
| 82661-22030 |
GX6#,LX60,MX61,RX6#,TX60 LWR,SUMITOMO |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14010 |
TX60 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-22050 |
TX60 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 YAZAKI |
1 | ||
| 83420-16010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 DENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
RX60,TX60 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60010 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 85909-22010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
GX6#,LX60,RX6#,TX60 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-22160 |
TX60 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90117-06067 | ||||
| 90430-18007 | ||||
| 90461-08187 | ||||
| 90461-12223 | ||||
| 90462-08008 | ||||
| 90464-00073 | ||||
| 91611-60812 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 1903 | ||||
ILLUST NO. 2 OF 7(8009- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69015 |
LX60,TX60..DLX |
1 | ||
| 84112-69025 |
GX6#,LX60,MX61,RX6#,TX60 W/TILT STEERING |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29075 |
GX6#,LX60,MX61,RX6#,TX60 W/TILT STEERING |
1 | ||
| 84140-29017 |
LX60,TX60..DLX |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60120 |
GX6#,LX60,MX61,RX6#,TX60 W/TILT STEERING |
1 | ||
| 84310-20423 |
LX60,TX60..DLX |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29016 |
LX60,SX60,TX60..DLX,STD |
1 | ||
| 84332-39095 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 W/TILT STEERING |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-22140 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-22140 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 W/TILT STEERING |
1 | ||
| 84450-27030 |
LX60,SX60,TX60..DLX,STD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29147 |
LX60,TX60..DLX |
1 | ||
| 84652-69025 |
GX6#,LX60,MX61,RX6#,TX60 W/TILT STEERING |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-22040 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 14V 1.4W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22050 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,STD,SXL,XG,XL) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22050 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,STD,SXL,XG,XL) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12081 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11024 |
GX6#,LX60,MX61,RX6#,TX60 12V 1.4W,12V 1.4W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22020 |
LX60,TX60..DLX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22090 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-11034 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 3.4W,12V 3.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| Common parts | ||||
| 82711-14530 | ||||
| 82711-14550 | ||||
| 90164-50048 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93540-54012 | ||||
| 93566-55512 | ||||
ILLUST NO. 3 OF 7(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
GX6#,LX60,RX6#,TX60 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 5A,5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 5A,5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 5A,5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 5A,5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20010 |
GX6#,LX60,MX61,RX6#,TX60 DEFOGGER |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-22030 |
RX60,SX60,TX60 |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22060 |
GX6#,LX60,MX61,RX6#,TX60..SED STOP LAMP |
1 | ||
| 89373-22030 |
GX6#,LX60,MX61,RX6#,TX60..SED TAIL LAMP |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22060 |
GX6#,LX60,MX61,RX6#,TX60..SED STOP LAMP |
1 | ||
| 89373-22030 |
GX6#,LX60,MX61,RX6#,TX60..SED TAIL LAMP |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-22270 |
TX60..4F |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90159-50105 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40618 | ||||
| 91655-40616 | ||||
ILLUST NO. 5 OF 7(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-22030 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-20010 |
GX6#,LX60,RX6#,TX60 |
1 | ||
| 84242-24010 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22050 |
GX6#,LX60,RX6#,TX60 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-22050 |
GX6#,LX60,RX6#,TX60 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22060 |
GX6#,LX60,RX6#,TX60 MATSUSHITA |
1 | ||
| 84340-22071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-20010 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-29155 |
RX6#,TX60 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-22041 |
RX6#,TX60 |
1 | ||
| Common parts | ||||
| 90168-40006 | ||||
| 90179-08026 | ||||
| 90179-10032 | ||||
| 90201-10572 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 91661-40612 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| 94611-11001 | ||||
ILLUST NO. 4 OF 7(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82650B - BREAKER ASSY, WIRING CIRCUIT, NO.3 | ||||
| 82650-20010 |
GX6#,LX60,MX61,RX6#,TX60 *HEA & COOLER |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22060 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22060 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-03001 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-22270 |
TX60..4F |
1 | ||
| Common parts | ||||
| 90179-06015 | ||||
| 90179-06060 | ||||
| 90179-06162 | ||||
| 90183-05002 | ||||
| 91651-40612 | ||||
| 93385-16012 | ||||
| 93540-15014 | ||||
| 93540-55016 | ||||
| 93566-55512 | ||||
| 93680-16016 | ||||
ILLUST NO. 6 OF 7(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 84739-30020 | ||||
| 90464-00251 | ||||
| 91521-40610 | ||||
| 93316-16012 | ||||
| 93540-54012 | ||||
ILLUST NO. 7 OF 7(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29435 |
LX60,TX60..DLX |
1 | ||
| 83320-29437 |
LX60,TX60..DLX |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29435 |
LX60,TX60..DLX |
1 | ||
| 83320-29437 |
LX60,TX60..DLX |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| Common parts | ||||
| 90179-08029 | ||||
| 90560-10021 | ||||
| 93319-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
