TX60-DEKDS (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)TX60

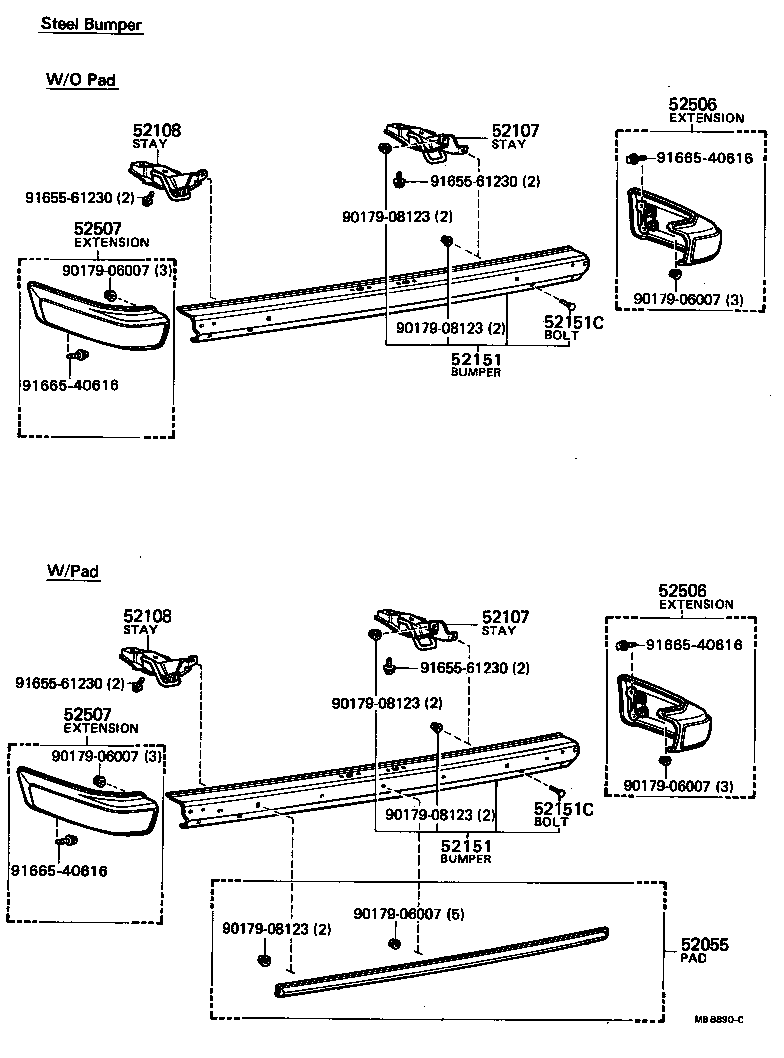

Click highlighted areas on diagram

diagram 52055 52107 52107 52108 52108 52151 52151 52151C 52151C 52506 52506 52507 52507 9017906007 9017906007 9017906007 9017906007 9017906007 9017908123 9017908123 9017908123 9017908123 9017908123 9165561230 9165561230 9165561230 9165561230 9166540616 9166540616 9166540616 9166540616
Part # Description Qty Price
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-22010

TX60

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-22010

TX60

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-22010

TX60

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-22010

TX60

 1
52151 - BUMPER ASSY, REAR
52151-29455

TX60..DLX

 1
52151 - BUMPER ASSY, REAR
52151-29455

TX60..DLX

 1
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
90112-08017

TX60

 4
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
90112-08017

TX60

 4
Common parts
90179-06007
90179-08123
91655-61230
91665-40616
