TX60-DEKDS (1980)
Toyota Chaser
Production
Sep 1980
-
Aug 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )13TU

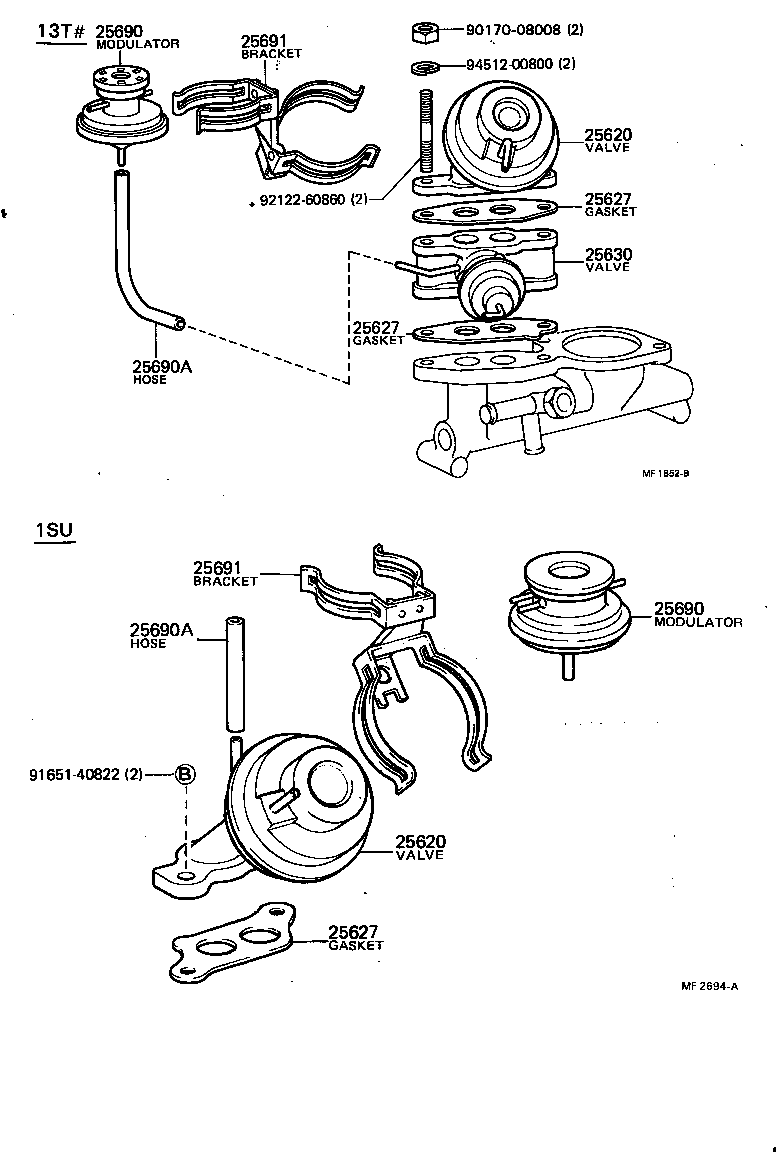

Click highlighted areas on diagram
MF1852B,MF2694A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25620 - VALVE ASSY, EGR | ||||
| 25620-18030 |
13TU..TX60..4F |
1 | ||
| 25620-18030 |
13TU..TX60..4F |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-18030 |
13TU..TX60..4F |
1 | ||
| 25620-18030 |
13TU..TX60..4F |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-26011 |
13TU..TX60 |
2 | ||
| 25627-26011 |
13TU..TX60 |
2 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-26011 |
13TU..TX60 |
2 | ||
| 25627-26011 |
13TU..TX60 |
2 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-26011 |
13TU..TX60 |
2 | ||
| 25627-26011 |
13TU..TX60 |
2 | ||
| 25630 - VALVE ASSY, EGR, NO.2 | ||||
| 25630-18070 |
13TU..TX60..4F |
1 | ||
| 25630-18070 |
13TU..TX60..4F |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25690-28010 |
13TU..TX60 |
1 | ||
| 25690-28010 |
13TU..TX60 |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25690-28010 |
13TU..TX60 |
1 | ||
| 25690-28010 |
13TU..TX60 |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 90445-11020 |
13TU..TX60 |
1 | ||
| 90445-11020 |
13TU..TX60 |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 90445-11020 |
13TU..TX60 |
1 | ||
| 90445-11020 |
13TU..TX60 |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-27011 |
13TU..TX60 |
1 | ||
| 25691-27011 |
13TU..TX60 |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-27011 |
13TU..TX60 |
1 | ||
| 25691-27011 |
13TU..TX60 |
1 | ||
| Common parts | ||||
| 90170-08008 | ||||
| 91651-40822 | ||||
| 92122-60860 | ||||
| 94512-00800 | ||||
