TX60-DEKDS (1980)
Toyota Chaser
Production
Sep 1980
-
Aug 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)13TU

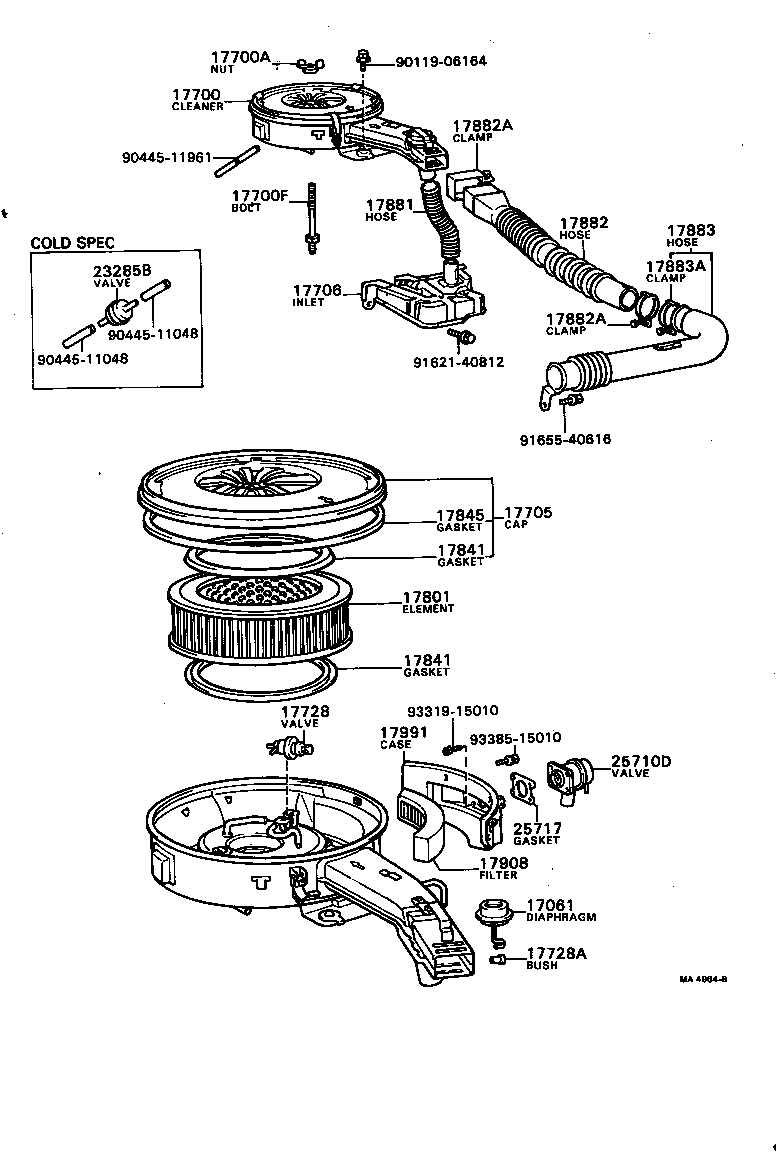

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-26010 |
13TU..TX60 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-18021 |
13TU..TX60..4F |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
13TU..TX60 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
13TU..TX60 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-25013 |
13TU..TX60 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17902-27032 |
13TU..TX60 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-27010 |
13TU..TX60 |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
13TU..TX60 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-25010 |
13TU..TX60 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31020 |
13TU..TX60 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31020 |
13TU..TX60 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-25010 |
13TU..TX60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-26020 |
13TU..TX60 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-25010 |
13TU..TX60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-65001 |
13TU..TX60 BODY SIDE |
1 | ||
| 90460-01003 |
13TU..TX60 AIR CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-65001 |
13TU..TX60 BODY SIDE |
1 | ||
| 90460-01003 |
13TU..TX60 AIR CLEANER SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-25010 |
13TU..TX60 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-65001 |
13TU..TX60 |
1 | ||
| 90460-65001 |
13TU..TX60 |
1 | ||
| 17908 - FILTER SUB-ASSY, AIR SUCTION | ||||
| 17908-27010 |
13TU..TX60 |
1 | ||
| 17991 - CASE, AIR SUCTION FILTER | ||||
| 17991-27080 |
13TU..TX60 |
1 | ||
| 23285B - VALVE, CHECK, NO.1 | ||||
| 90917-10053 |
13TU..TX60 COLD SPEC |
1 | ||
| 25710D - VALVE ASSY, AIR SWITCHING | ||||
| 25710-18040 |
13TU..TX60..4F |
1 | ||
| 25717 - GASKET, AIR SWITCHING VALVE | ||||
| 25717-18010 |
13TU..TX60 |
1 | ||
| Common parts | ||||
| 90119-06164 | ||||
| 90445-11048 | ||||
| 90445-11961 | ||||
| 91621-40812 | ||||
| 91655-40616 | ||||
| 93319-15010 | ||||
| 93385-15010 | ||||
(8009-8208)L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-18021 |
13TU..TX60..4F |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-25010 |
13TU..TX60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-26020 |
13TU..TX60 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-25010 |
13TU..TX60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-65001 |
13TU..TX60 BODY SIDE |
1 | ||
| 90460-01003 |
13TU..TX60 AIR CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-65001 |
13TU..TX60 BODY SIDE |
1 | ||
| 90460-01003 |
13TU..TX60 AIR CLEANER SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-25010 |
13TU..TX60 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-65001 |
13TU..TX60 |
1 | ||
| 90460-65001 |
13TU..TX60 |
1 | ||
| Common parts | ||||
| 90119-06108 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
