TX60-DEKDS (1980)
Toyota Chaser
ILLUST NO. 1 OF 2(8009-8208)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-26031 |
13TU..TX60 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03040 |
13TU..TX60 *WAX 88-100,KUZEH |
1 | ||
| 90916-03036 |
13TU..TX60 *WAX 88-100,FUJI-THOMSON |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-26072 |
13TU..TX60 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
13TU..TX60 |
1 | ||
| 16341-38011 |
13TU..TX60 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-26011 |
13TU..TX60 |
1 | ||
| 16343-26010 |
13TU..TX60 |
1 | ||
| 16361 - FAN | ||||
| 16361-26040 |
13TU..TX60 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00885 |
13TU..TX60 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-25010 |
13TU..TX60 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28010 |
13TU..TX60..4F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
13TU..TX60 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
13TU..TX60 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
13TU..TX60 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-70010 |
13TU..TX60 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12063 |
13TU..TX60 *H,L=300 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
13TU..TX60 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
13TU..TX60 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-18010 |
13TU..TX60 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-18010 |
13TU..TX60 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01168 |
13TU..TX60 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
13TU..TX60 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
13TU..TX60 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-18030 |
13TU..TX60 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
13TU..TX60 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
13TU..TX60 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
13TU..TX60 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
13TU..TX60 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-25030 |
13TU..TX60 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-25040 |
13TU..TX60 W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90179-06070 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40818 | ||||
| 91655-40616 | ||||
| 91655-40818 | ||||
| 91659-41222 | ||||

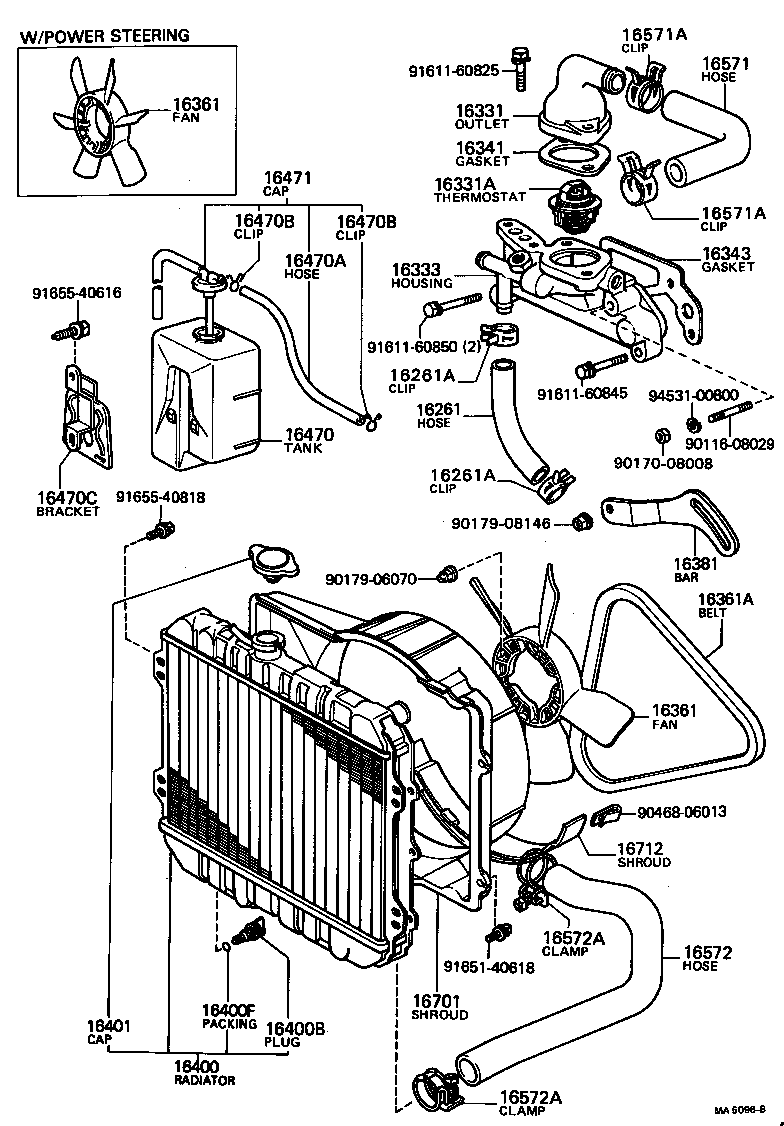

ILLUST NO. 1 OF 2(8009-8208)13TU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-25020 |
13TU..TX60 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20004 |
13TU..TX60 |
2 | ||
| 90467-20005 |
13TU..TX60 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20004 |
13TU..TX60 |
2 | ||
| 90467-20005 |
13TU..TX60 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-26031 |
13TU..TX60 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03040 |
13TU..TX60 *WAX 88-100,KUZEH |
1 | ||
| 90916-03036 |
13TU..TX60 *WAX 88-100,FUJI-THOMSON |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-26072 |
13TU..TX60 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
13TU..TX60 |
1 | ||
| 16341-38011 |
13TU..TX60 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-26011 |
13TU..TX60 |
1 | ||
| 16343-26010 |
13TU..TX60 |
1 | ||
| 16361 - FAN | ||||
| 16361-26040 |
13TU..TX60 |
1 | ||
| 16361 - FAN | ||||
| 16361-26040 |
13TU..TX60 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00885 |
13TU..TX60 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-25010 |
13TU..TX60 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28010 |
13TU..TX60..4F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
13TU..TX60 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
13TU..TX60 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
13TU..TX60 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-70010 |
13TU..TX60 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12063 |
13TU..TX60 *H,L=300 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
13TU..TX60 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
13TU..TX60 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-18010 |
13TU..TX60 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-18010 |
13TU..TX60 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01168 |
13TU..TX60 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
13TU..TX60 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
13TU..TX60 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-18030 |
13TU..TX60 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
13TU..TX60 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
13TU..TX60 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-49062 |
13TU..TX60 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
13TU..TX60 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-25030 |
13TU..TX60 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-25040 |
13TU..TX60 W/COOLER |
1 | ||
| Common parts | ||||
| 90116-08029 | ||||
| 90170-08008 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90468-06013 | ||||
| 91611-60825 | ||||
| 91611-60845 | ||||
| 91611-60850 | ||||
| 91651-40618 | ||||
| 91655-40616 | ||||
| 91655-40818 | ||||
| 94531-00800 | ||||
ILLUST NO. 2 OF 2(8009-8208)13TU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00885 |
13TU..TX60 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-50950 |
TX60 |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(8009- )L,2LTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00885 |
13TU..TX60 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-50950 |
TX60 |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||
