SX90-BTPNK (1992)
Toyota Chaser
Production
Oct 1992
-
Sep 1996
Engine
4SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9210- )GX90,SX90

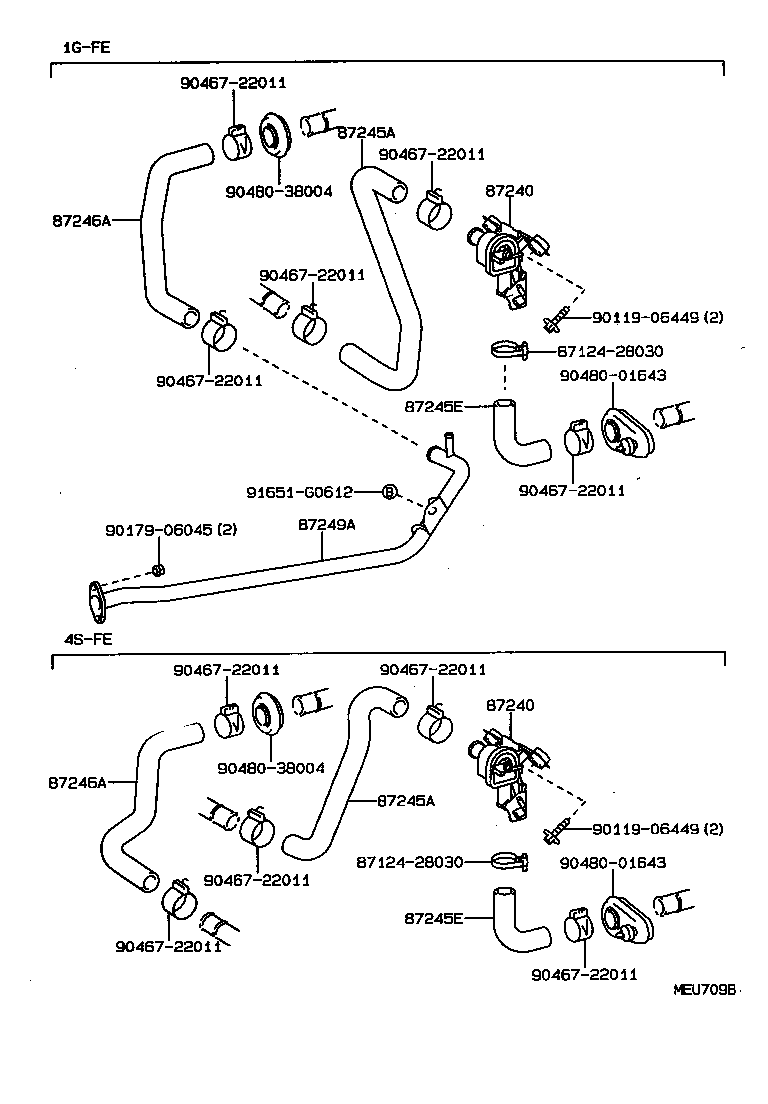

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-22360 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-22360 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2A480 |
SX90 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2A480 |
SX90 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-2A520 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-2A520 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-2A490 |
SX90 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-2A490 |
SX90 |
1 | ||
| Common parts | ||||
| 87124-28030 | ||||
| 90119-06449 | ||||
| 90179-06045 | ||||
| 90467-22011 | ||||
| 90480-01643 | ||||
| 90480-38004 | ||||
| 91651-G0612 | ||||
