SX90-BTPEK (1992)
Toyota Chaser
Production
Oct 1992
-
Sep 1996
Engine
4SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

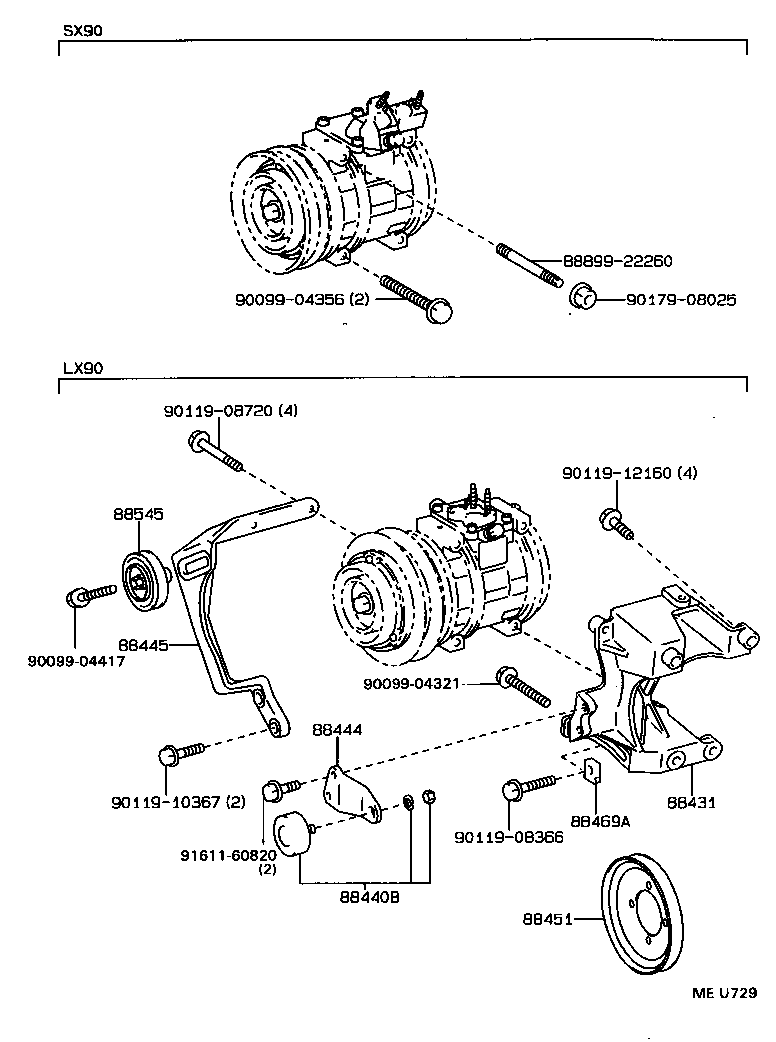

ILLUST NO. 1 OF 2(9210- )LX90,SX90
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88899-22260 | ||||
| 90099-04321 | ||||
| 90099-04356 | ||||
| 90099-04417 | ||||
| 90119-08366 | ||||
| 90119-08720 | ||||
| 90119-10367 | ||||
| 90119-12160 | ||||
| 90179-08025 | ||||
| 91611-60820 | ||||

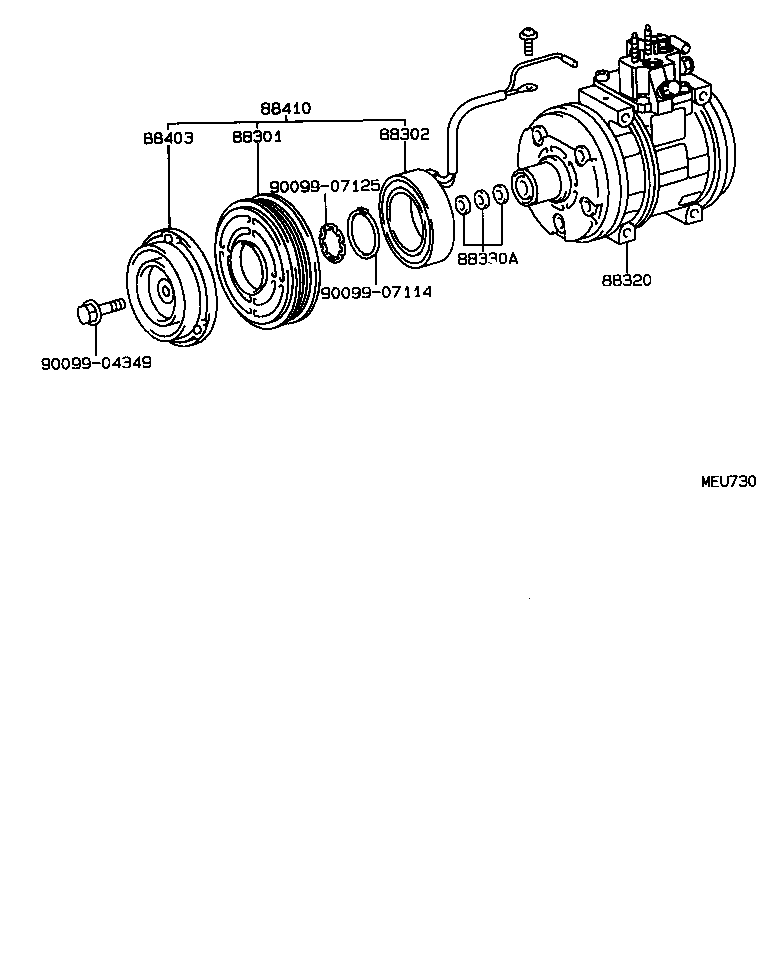

ILLUST NO. 2 OF 2(9210- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22090 |
SX90 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22290 |
SX90 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-22680 |
SX90 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-22450 |
SX90 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
