SX90-BTMEK (1992)
Toyota Chaser

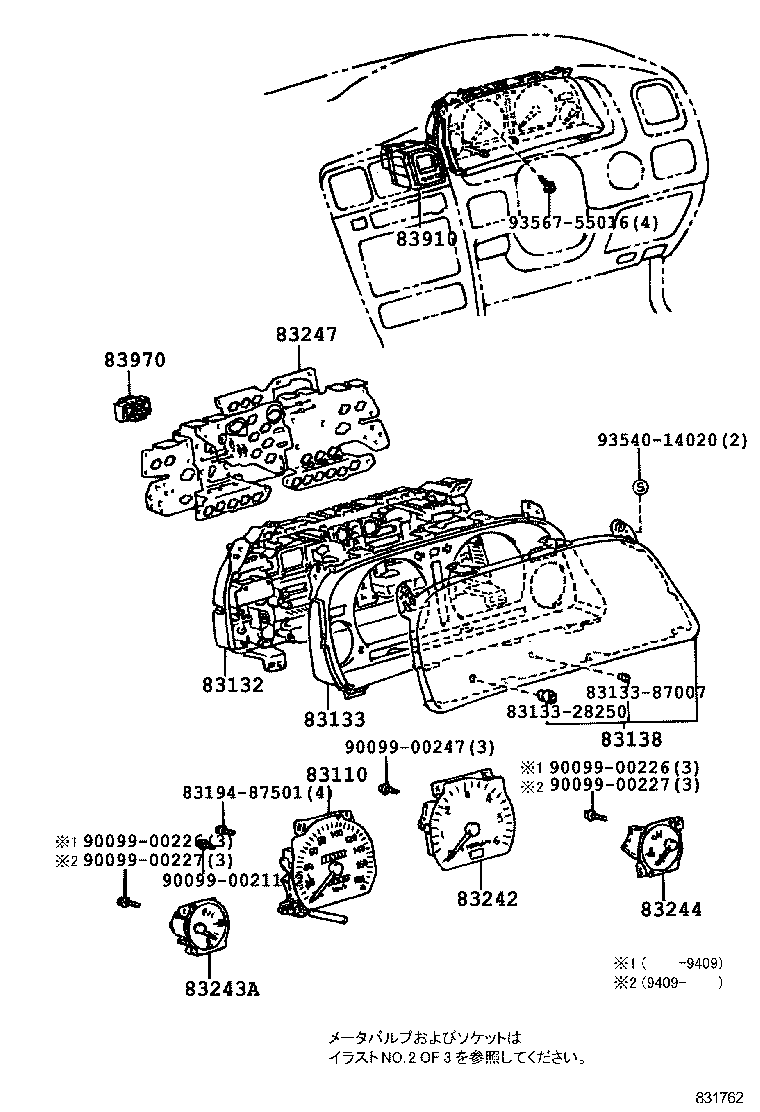

ILLUST NO. 1 OF 3(9210- )
ｱﾅﾛｸﾞﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2A850 |
GX90,JZX90,93,SX90..AVT,RAF,TOUS,TOUV,XL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2A770 |
GX90,SX90..MTM |
1 | ||
| 83132-2C110 |
GX90,SX90..MTM |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-2A310 |
LX90..MTM..XL;GX90,SX90..MTM |
1 | ||
| 83133-2A310 |
GX90,SX90..MTM |
1 | ||
| 83133-2A310 |
GX90,LX90,SX90..MTM |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-22550 |
GX90,JZX90,93,SX90..AVT,RAF,TOUS,TOUV,XL |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-2A110 |
SX90 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-22510 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22510 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-2C210 |
JZX90..MTM;GX90,JZX90,SX90..AVT,RAF,TOUS,XL |
1 | ||
| 83247-2C310 |
GX90,JZX90,SX90..AVT,RAF,TOUS,XL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22460 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 83133-28250 | ||||
| 83133-87007 | ||||
| 83194-87501 | ||||
| 90099-00211 | ||||
| 90099-00226 | ||||
| 90099-00227 | ||||
| 90099-00247 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

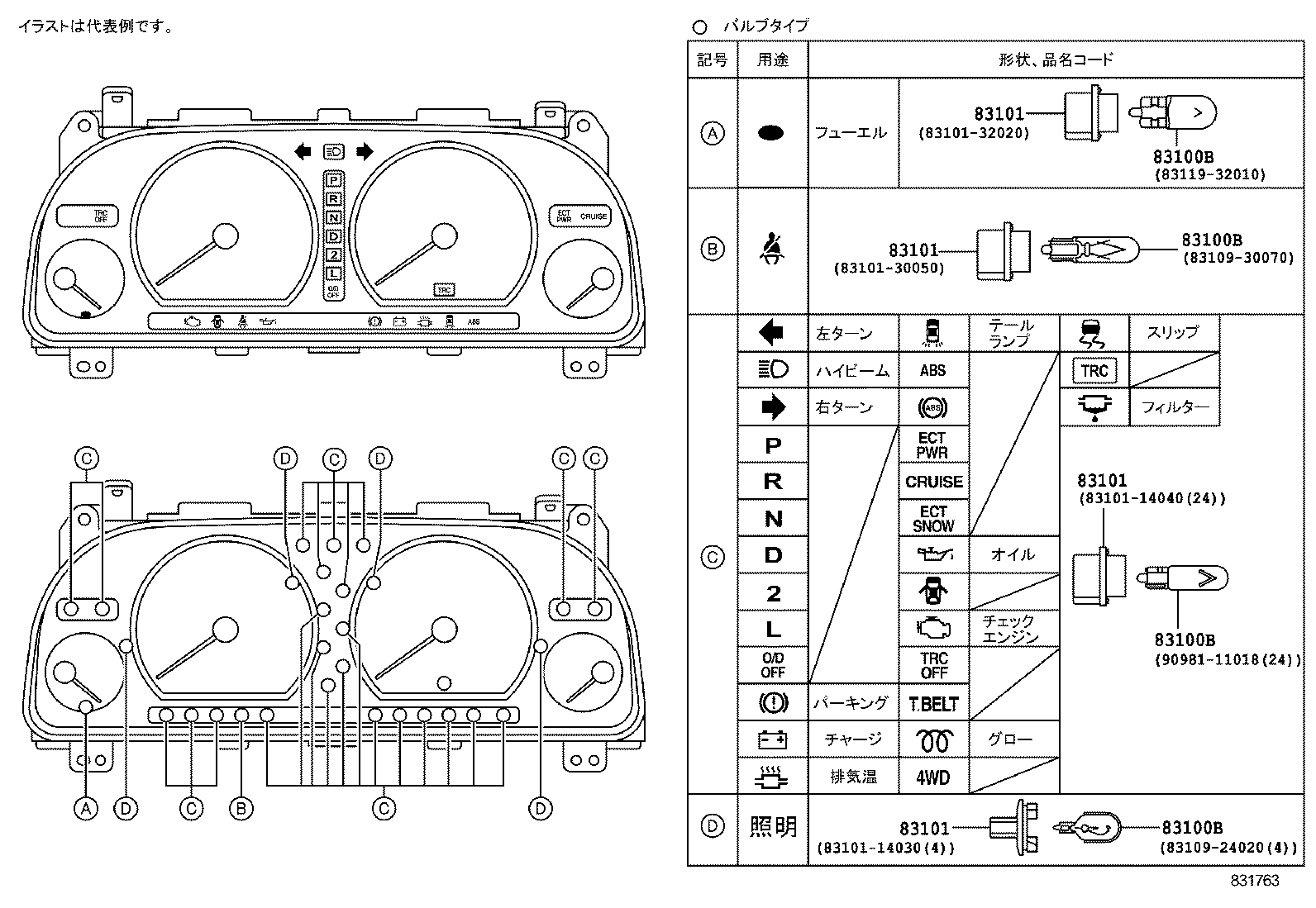

ILLUST NO. 2 OF 3(9210- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-30050 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 2.0W |
1 | ||
| 83101-14030 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 3.4W |
4 | ||
| 83101-32020 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83101-30050 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 2.0W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-30050 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 2.0W |
1 | ||
| 83101-14030 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 3.4W |
4 | ||
| 83101-32020 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83101-30050 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 2.0W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-30050 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 2.0W |
1 | ||
| 83101-14030 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 3.4W |
4 | ||
| 83101-32020 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83101-30050 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 2.0W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-30050 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 2.0W |
1 | ||
| 83101-14030 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 3.4W |
4 | ||
| 83101-32020 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83101-30050 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 2.0W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
ILLUST NO. 1 OF 3(9210- )
ﾃﾞｼﾞﾀﾙﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2A770 |
GX90,SX90..MTM |
1 | ||
| 83132-2C110 |
GX90,SX90..MTM |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-22550 |
GX90,JZX90,93,SX90..AVT,RAF,TOUS,TOUV,XL |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-2C210 |
JZX90..MTM;GX90,JZX90,SX90..AVT,RAF,TOUS,XL |
1 | ||
| 83247-2C310 |
GX90,JZX90,SX90..AVT,RAF,TOUS,XL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22460 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20260 | ||||
| 83161-20340 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83161-20740 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

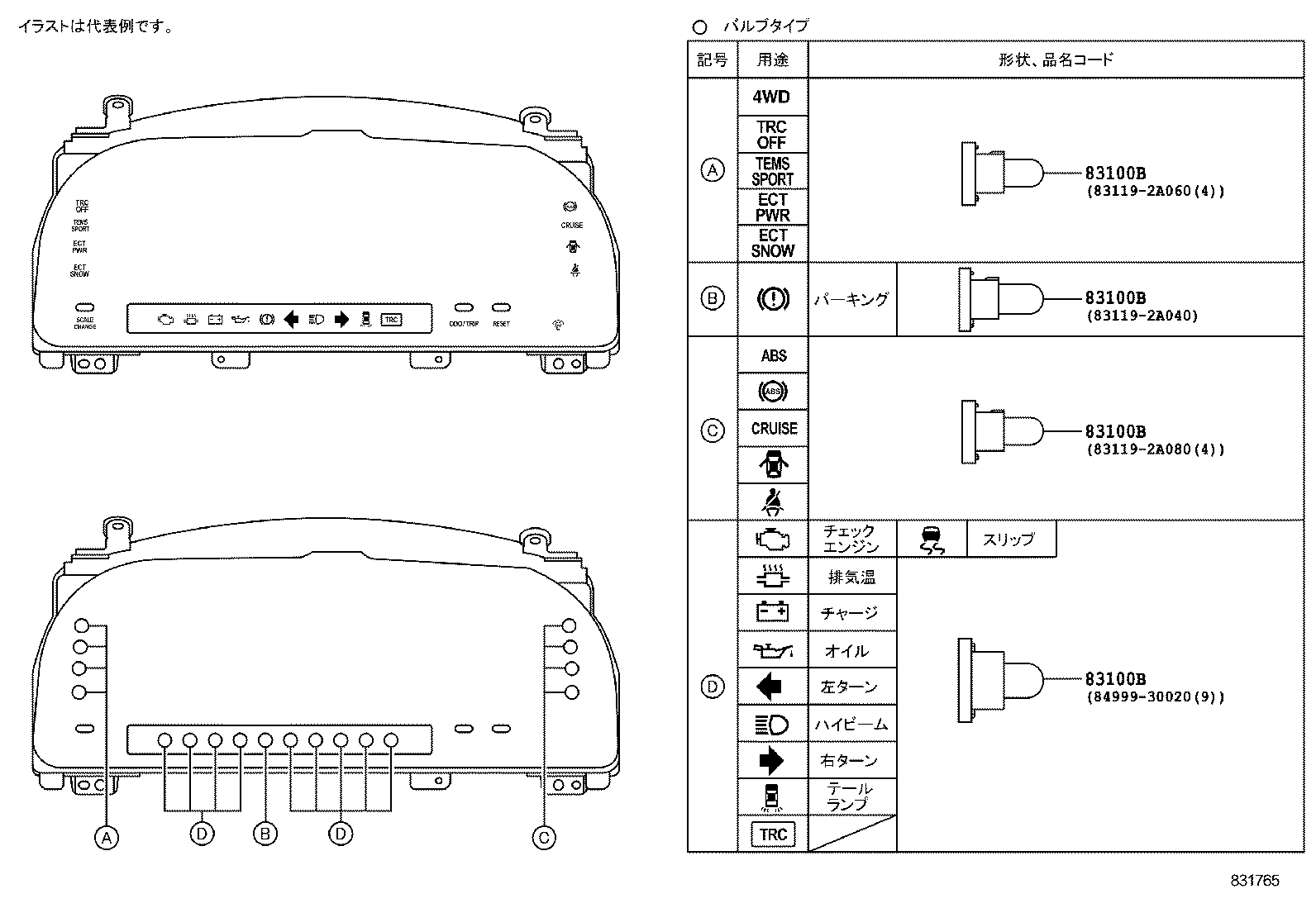

ILLUST NO. 2 OF 3(9210- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||

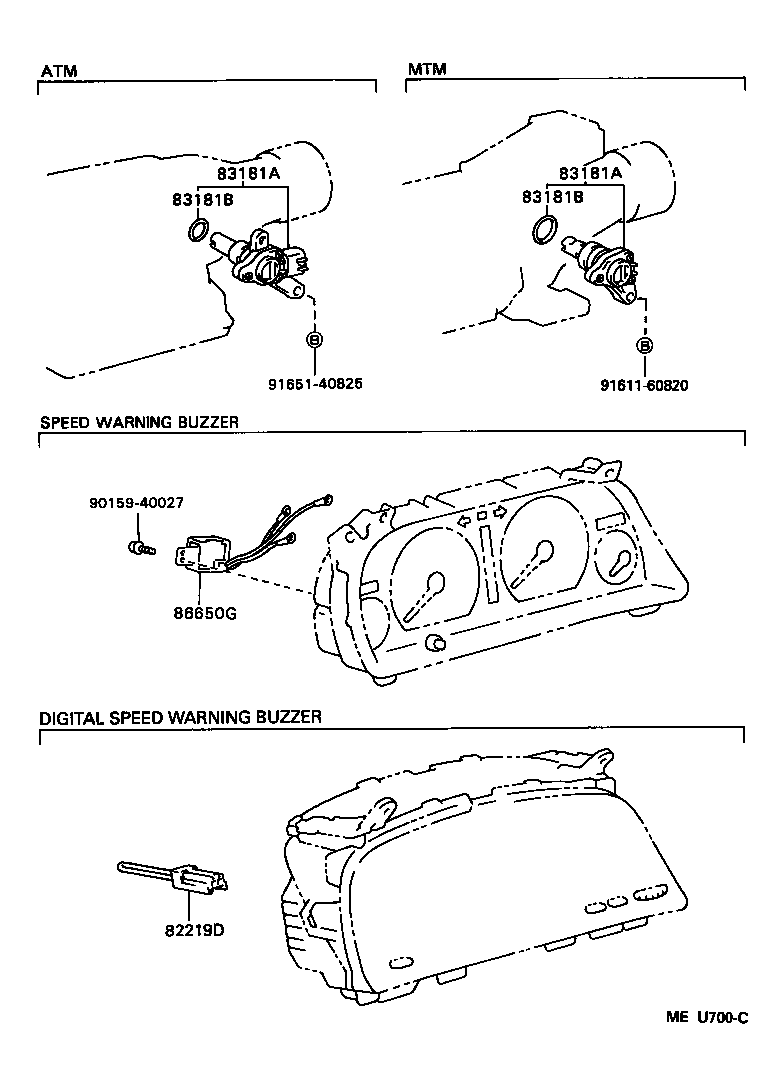

ILLUST NO. 3 OF 3(9210- )
ｽﾋﾟｰﾄﾞｾﾝｻ & ｽﾋﾟｰﾄﾞｳｫｰﾆﾝｸﾞ ﾌﾞｻﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24070 |
GX90,LX90,SX90..MTM |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24070 |
GX90,LX90,SX90..MTM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
GX90,JZX90,LX90,SX90..MTM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
GX90,JZX90,LX90,SX90..MTM |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL |
1 | ||
| Common parts | ||||
| 90159-40027 | ||||
| 91611-60820 | ||||
| 91651-40825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
