SX90-BTMEK (1992)
Toyota Chaser
Production
Oct 1992
-
Sep 1996
Engine
4SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9210- )

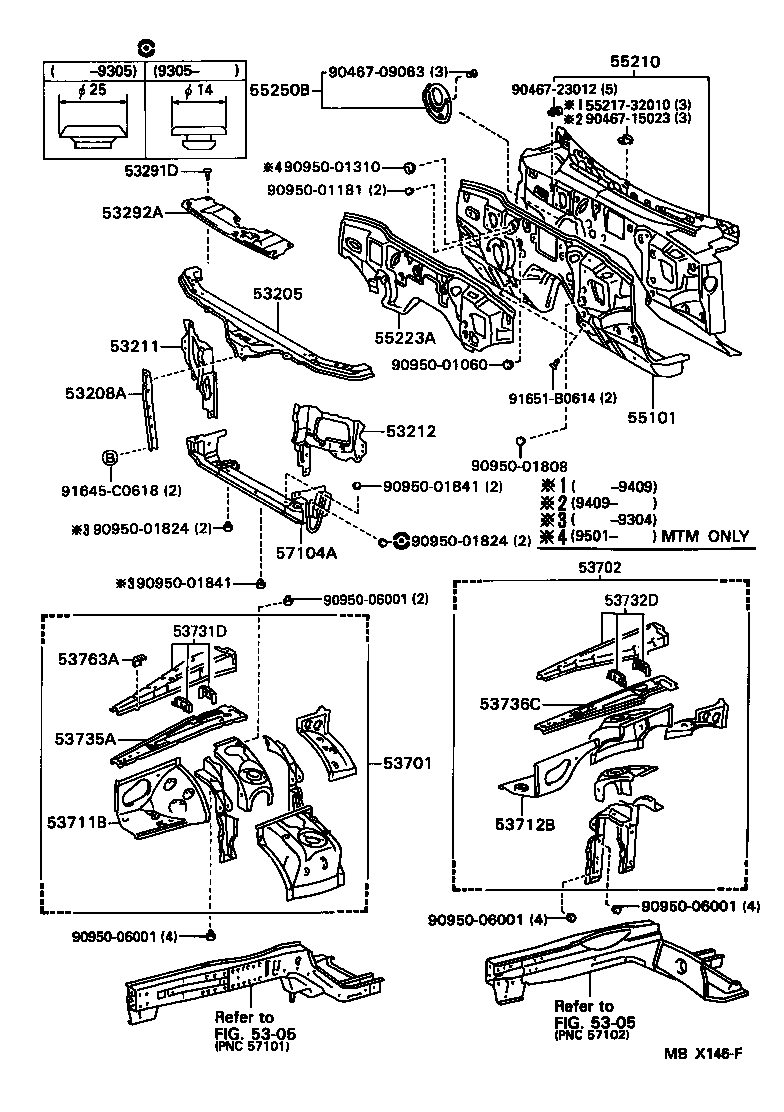

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-22180 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53215-22140 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53202-22900 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53203-22900 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 53291D - CLIP, RADIATOR SUPPORT TO FRAME | ||||
| 90467-07117 |
JZX90,LX90,SX90..RAF,TOUV,XL ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ |
7 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53292-22040 |
JZX90,LX90,SX90..RAF,TOUV,XL ｶﾝﾚｲﾁ ｼﾖｳ & ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-22670 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-22630 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-22430 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-22360 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-22090 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-22080 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH | ||||
| 53735-22070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH | ||||
| 53736-22060 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 53763A - BRACKET, AIR CLEANER INLET MOUNTING | ||||
| 53763-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-2A220 |
SX90 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-22311 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 55210-22310 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 55250B - INSULATOR ASSY, DUSH PANEL, NO.3 | ||||
| 55250-22050 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-22210 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 57104-30030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 55217-32010 | ||||
| 90467-09063 | ||||
| 90467-15023 | ||||
| 90467-23012 | ||||
| 90950-01060 | ||||
| 90950-01181 | ||||
| 90950-01310 | ||||
| 90950-01808 | ||||
| 90950-01824 | ||||
| 90950-01841 | ||||
| 90950-06001 | ||||
| 91645-C0618 | ||||
| 91651-B0614 | ||||
| Linked diagrams | ||||
| 5305 | ||||
