SX90-BTMEK (1992)

Toyota Chaser

Production Oct 1992 - Sep 1996
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )GX90,JZX90,91,LX90,SX90

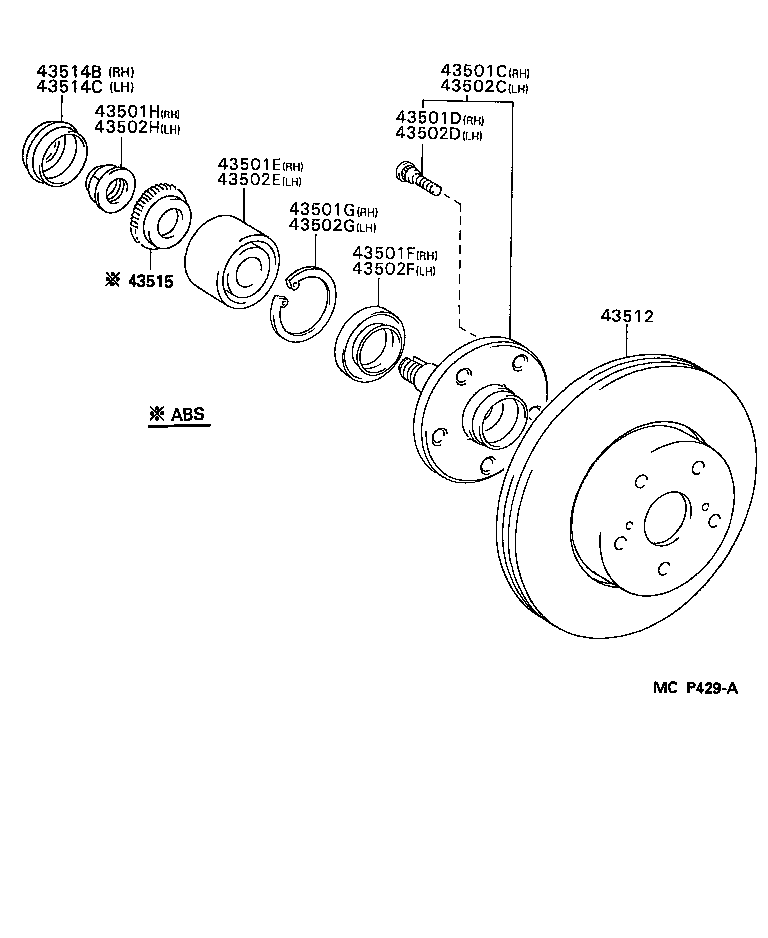

Click highlighted areas on diagram

diagram 43501C 43501D 43501E 43501F 43501G 43501H 43502C 43502D 43502E 43502F 43502G 43502H 43512 43514B 43514C 43515
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-22080

GX90,JZX90,91,LX90,SX90

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02070

GX90,JZX9#,LX90,SX90

 5
90942-02049

GX90,JZX9#,LX90,SX90

 5
43501E - BEARING (FOR FRONT AXLE HUB RH)
90363-32035

GX90,JZX90,91,LX90,SX90

 1
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-48013

GX90,JZX90,91,LX90,SX90

 1
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90521-77001

GX90,JZX90,91,LX90,SX90

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90179-22022

GX90,JZX90,91,LX90,SX90

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-22080

GX90,JZX90,91,LX90,SX90

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02070

GX90,JZX9#,LX90,SX90

 5
90942-02049

GX90,JZX9#,LX90,SX90

 5
43502E - BEARING (FOR FRONT AXLE HUB LH)
90363-32035

GX90,JZX90,91,LX90,SX90

 1
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-48013

GX90,JZX90,91,LX90,SX90

 1
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90521-77001

GX90,JZX90,91,LX90,SX90

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90179-22022

GX90,JZX90,91,LX90,SX90

 1
43512 - DISC, FRONT
43512-22230

GX90,LX90,SX90

 2
43512-22240

LX90..MTM..RAF;GX90,SX90..AVT,RAF

ｱﾘ(6JJX15 ﾃﾞｲｽｸ ﾎｲ-ﾙ) OR ｱﾘ(ABS)

 2
43514B - CAP, FRONT AXLE HUB GREASE, RH
43514-22040

GX90,JZX90,91,LX90,SX90

 1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43514-22040

GX90,JZX90,91,LX90,SX90

 1
43515 - ROTOR, SKID CONTROL, FRONT
43515-22020

GX90,JZX90,91,LX90,SX90

 2
