SX80Y-BTMRM (1988)

Toyota Chaser

Production Aug 1988 - Aug 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4SF#

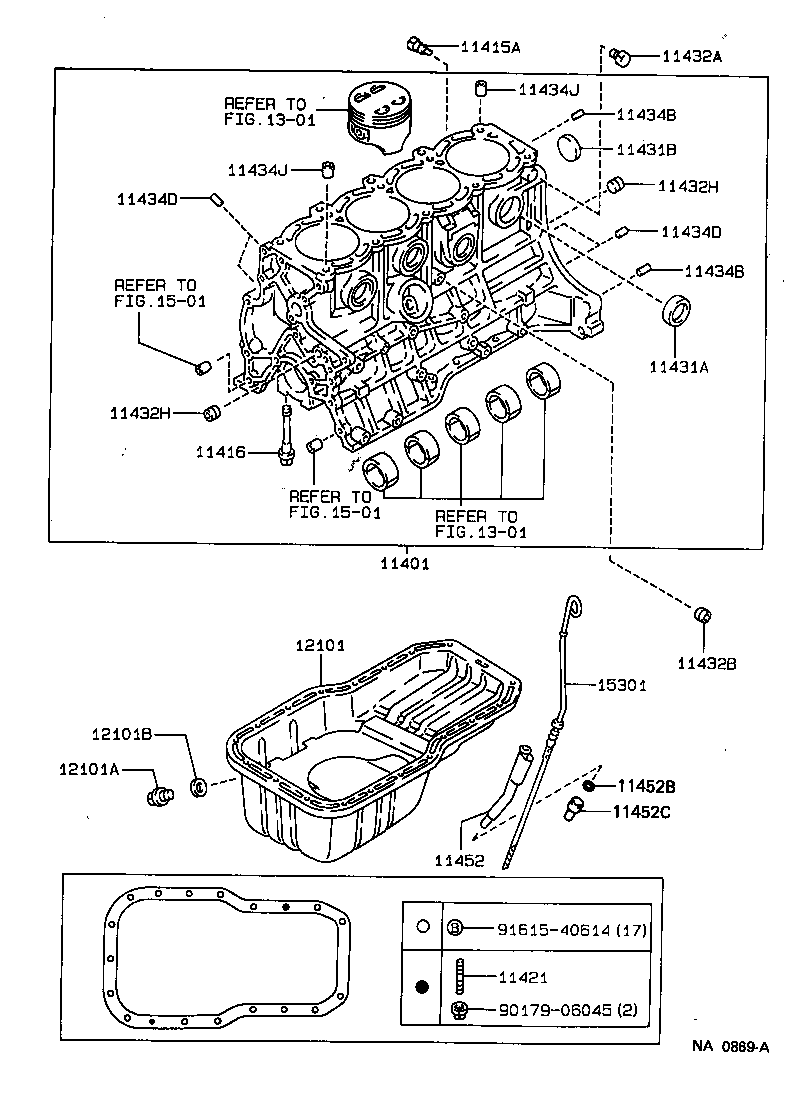

Click highlighted areas on diagram

diagram 11401 11415A 11416 11421 11431A 11431B 11432A 11432B 11432H 11432H 11434B 11434B 11434D 11434D 11434J 11434J 11452 11452B 11452C 12101 12101A 12101B 1301 1301 1501 1501 15301 9017906045 9161540614
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79365

4SFI..SX80

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-52001

4SF#..SX80

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

4SF#..SX80

 10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06022

4SF#..SX80

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

4SF#..SX80

 8
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

4SF#..SX80

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-51006

4SFI..SX80

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-52003

4SF#..SX80

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

4SFI..SX80

 2
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

4SFI..SX80

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

4SF#..SX80

長さ=22,外径=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

4SF#..SX80

長さ=22,外径=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

4SF#..SX80

長さ=14,外径=6

 4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

4SF#..SX80

長さ=14,外径=6

 4
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

4SF#..SX80

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

4SF#..SX80

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-74020

4SFI..SX80

 1
12101 - PAN SUB-ASSY, OIL
12101-63011

4SF#..SX80

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

4SFI..SX80

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

4SF#..SX80

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-74030

4SFI..SX80

 1
Common parts
90179-06045
91615-40614
Linked diagrams
1301
1501
