SX80-BTPNM (1988)
Toyota Chaser
Production
Aug 1988
-
Aug 1990
Engine
4SFI
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )4SF#

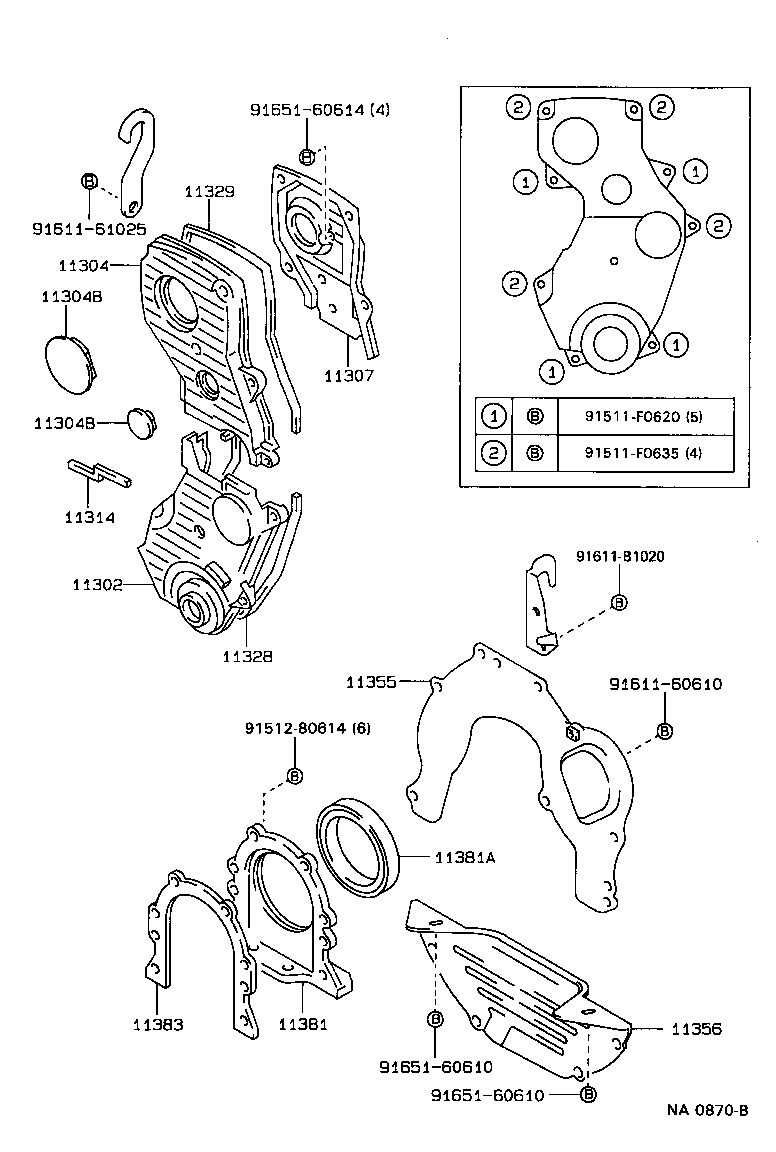

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-74010 |
4SFI..SX80 |
1 | ||
| 11304 - COVER, TIMING CHAIN OR BELT, NO.2 | ||||
| 11303-74010 |
4SF#..SX80 |
1 | ||
| 11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2) | ||||
| 90950-01489 |
4SF#..SX80 外径=33,OD=33 |
1 | ||
| 90950-01497 |
4SF#..SX80 外径=76,OD=76 |
1 | ||
| 11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2) | ||||
| 90950-01489 |
4SF#..SX80 外径=33,OD=33 |
1 | ||
| 90950-01497 |
4SF#..SX80 外径=76,OD=76 |
1 | ||
| 11307 - COVER, SUB-ASSY, TIMING BELT, NO.3 | ||||
| 11304-74010 |
4SF#..SX80 |
1 | ||
| 11314 - GASKET, TIMING CHAIN NO.2 COVER | ||||
| 11319-63010 |
4SF#..SX80 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-74010 |
4SF#..SX80 |
1 | ||
| 11329 - GASKET, TIMING GEAR REAR COVER | ||||
| 11329-74010 |
4SF#..SX80 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-63010 |
4SF#..SX80 |
1 | ||
| 11356 - PLATE, REAR END, NO.2 | ||||
| 11356-63010 |
4SF#..SX80 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-63011 |
4SFI..SX80 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-85006 |
4SF#..SX80 |
1 | ||
| 90311-85003 |
4SF#..SX80 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-63010 |
4SFI..SX80 |
1 | ||
| Common parts | ||||
| 91511-F0620 | ||||
| 91511-F0635 | ||||
| 91512-80614 | ||||
| 91611-60610 | ||||
| 91611-61025 | ||||
| 91611-B1020 | ||||
| 91651-60610 | ||||
| 91651-60614 | ||||
