SX80-BTMNM (1988)
Toyota Chaser

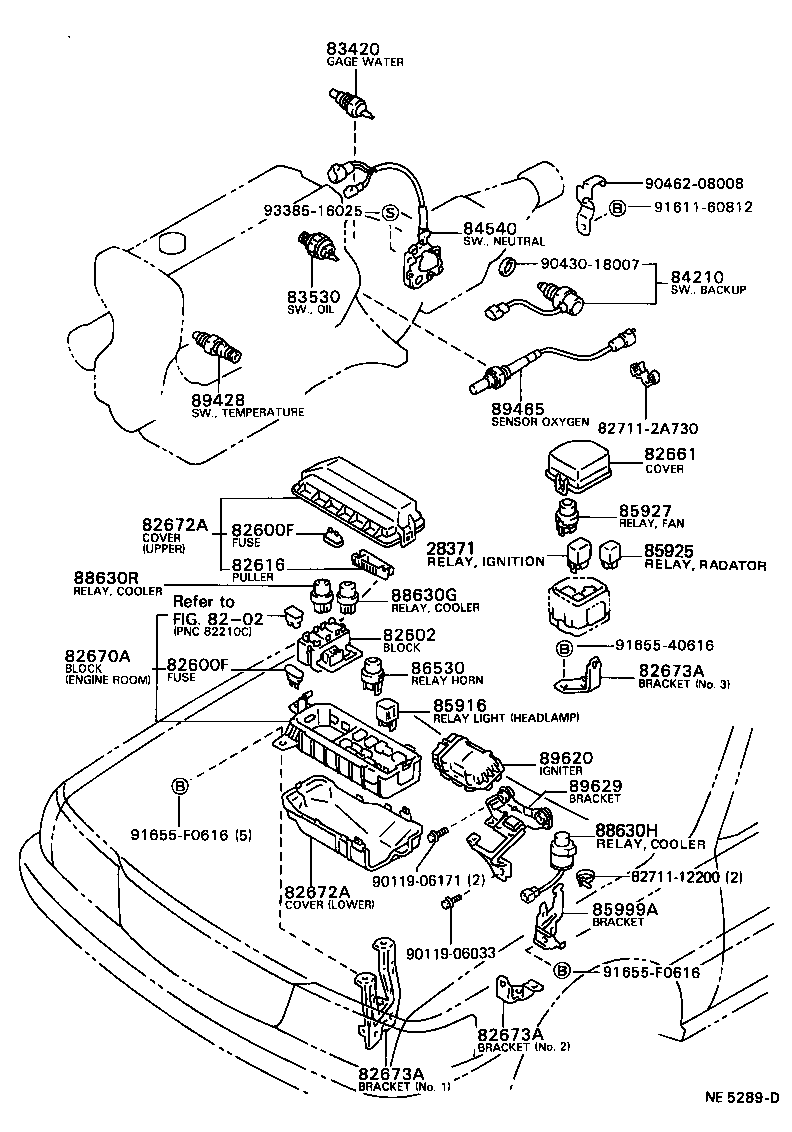

ILLUST NO. 1 OF 6(8808- )SX80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
4SF#..SX80 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 15A,COWL SIDE |
7 | ||
| 90982-09002 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 10A,COWL SIDE |
1 | ||
| 90982-09005 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 20A,黄,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,MX83,SX80,YX80 15A,E/G ROOM J/B |
5 | ||
| 90982-09005 |
GX81,LX80,MX83,SX80,YX80 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81,MX83,SX80,YX80 20A,黄,E/G ROOM J/B |
3 | ||
| 90982-09003 |
GX81,LX80,SX80,YX80 15A,COWL SIDE |
7 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 15A,COWL SIDE |
7 | ||
| 90982-09002 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 10A,COWL SIDE |
1 | ||
| 90982-09005 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 20A,黄,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,MX83,SX80,YX80 15A,E/G ROOM J/B |
5 | ||
| 90982-09005 |
GX81,LX80,MX83,SX80,YX80 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81,MX83,SX80,YX80 20A,黄,E/G ROOM J/B |
3 | ||
| 90982-09003 |
GX81,LX80,SX80,YX80 15A,COWL SIDE |
7 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-22260 |
GX81..4FC;GX81..5F..TWT;LX80,MX83,SX80,YX80 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22150 |
SX80 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-22020 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL NO.1 |
1 | ||
| 82670-22040 |
SX80 ENGINE ROOM |
1 | ||
| 82670-22020 |
GX81,LX80,SX80,YX80 NO.1 |
1 | ||
| 82671-22030 |
GX81,LX80,MX83,SX80,YX80 NO.3 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-22100 |
SX80 UPPER |
1 | ||
| 82672-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-22100 |
SX80 UPPER |
1 | ||
| 82672-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 LOWER |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 82673-22030 |
GX81,JZX81,MX83,SX80,YX80 NO.2 |
1 | ||
| 82673-22050 |
SX80 NO.3 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 82673-22030 |
GX81,JZX81,MX83,SX80,YX80 NO.2 |
1 | ||
| 82673-22050 |
SX80 NO.3 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 82673-22030 |
GX81,JZX81,MX83,SX80,YX80 NO.2 |
1 | ||
| 82673-22050 |
SX80 NO.3 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
SX80 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
JZX81,SX80 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-30060 |
GX81,LX80,SX80,YX80..5F |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GX81,LX80,MX83,SX80,YX80 HEADLAMP |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 *ND,TAIL LAMP |
1 | ||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 MARUKO,TAIL LAMP |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-04003 |
SX80 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
SX80 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-22360 |
JZX81..TWC;GX81,SX80,YX80 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 MARUKO |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 NIPPONDENSO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
LX80,SX80..XL |
1 | ||
| 90987-02004 |
GX81,LX80,SX80,YX80 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 88630-22070 |
SX80;GX81..5F..TWT;GX81,YX80..ATM |
1 | ||
| 88630-22070 |
SX80..XL |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20060 |
SX80..CI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-10010 |
SX80 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-22010 |
SX80 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-22070 |
SX80 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-2A730 | ||||
| 90119-06033 | ||||
| 90119-06171 | ||||
| 90430-18007 | ||||
| 90462-08008 | ||||
| 91611-60812 | ||||
| 91655-40616 | ||||
| 91655-F0616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 8202 | ||||

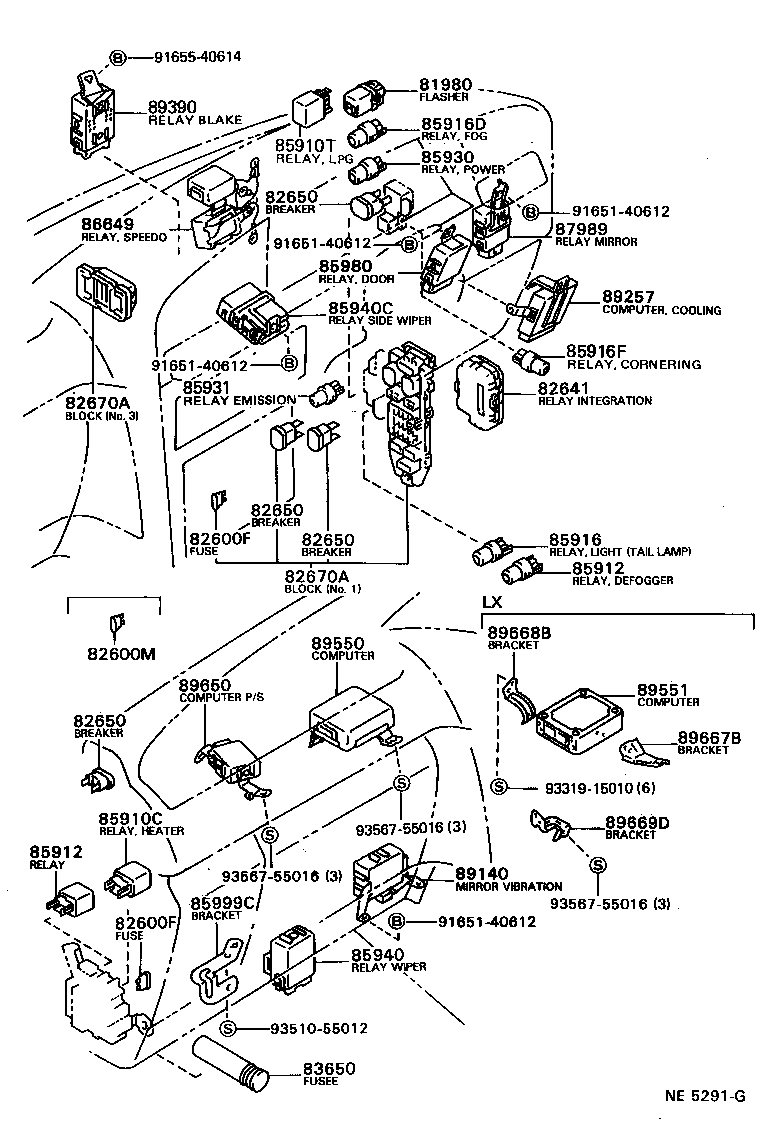

ILLUST NO. 2 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30110 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 15A,COWL SIDE |
7 | ||
| 90982-09002 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 10A,COWL SIDE |
1 | ||
| 90982-09005 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 20A,黄,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,MX83,SX80,YX80 15A,E/G ROOM J/B |
5 | ||
| 90982-09005 |
GX81,LX80,MX83,SX80,YX80 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81,MX83,SX80,YX80 20A,黄,E/G ROOM J/B |
3 | ||
| 90982-09003 |
GX81,LX80,SX80,YX80 15A,COWL SIDE |
7 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 15A,COWL SIDE |
7 | ||
| 90982-09002 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 10A,COWL SIDE |
1 | ||
| 90982-09005 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 20A,黄,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,MX83,SX80,YX80 15A,E/G ROOM J/B |
5 | ||
| 90982-09005 |
GX81,LX80,MX83,SX80,YX80 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81,MX83,SX80,YX80 20A,黄,E/G ROOM J/B |
3 | ||
| 90982-09003 |
GX81,LX80,SX80,YX80 15A,COWL SIDE |
7 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-22050 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX81,LX80,MX83,SX80,YX80 30A |
2 | ||
| 82650-20020 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 40A |
1 | ||
| 82650-20011 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX81,LX80,MX83,SX80,YX80 30A |
2 | ||
| 82650-20020 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 40A |
1 | ||
| 82650-20011 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX81,LX80,MX83,SX80,YX80 30A |
2 | ||
| 82650-20020 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 40A |
1 | ||
| 82650-20011 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX81,LX80,MX83,SX80,YX80 30A |
2 | ||
| 82650-20020 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 40A |
1 | ||
| 82650-20011 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL 30A |
2 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-22020 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL NO.1 |
1 | ||
| 82670-22040 |
SX80 ENGINE ROOM |
1 | ||
| 82670-22020 |
GX81,LX80,SX80,YX80 NO.1 |
1 | ||
| 82671-22030 |
GX81,LX80,MX83,SX80,YX80 NO.3 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-22020 |
GX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL NO.1 |
1 | ||
| 82670-22040 |
SX80 ENGINE ROOM |
1 | ||
| 82670-22020 |
GX81,LX80,SX80,YX80 NO.1 |
1 | ||
| 82671-22030 |
GX81,LX80,MX83,SX80,YX80 NO.3 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 NIPPONDENSO |
1 | ||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 MARUKO |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 NIPPONDENSO |
1 | ||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GX81,LX80,MX83,SX80,YX80 HEADLAMP |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 *ND,TAIL LAMP |
1 | ||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 MARUKO,TAIL LAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 NIPPONDENSO |
1 | ||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 MARUKO |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22100 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-22390 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91655-40614 | ||||
| 93319-15010 | ||||
| 93510-55012 | ||||
| 93567-55016 | ||||

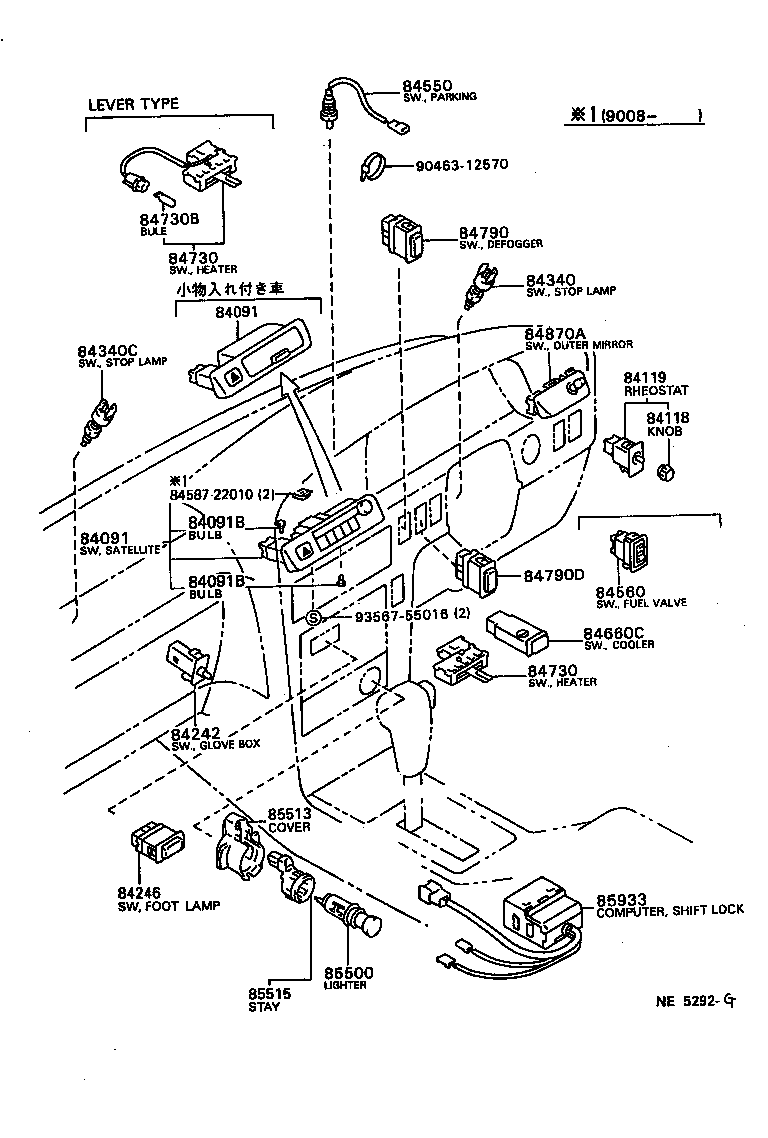

ILLUST NO. 3 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-22300 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
1 | ||
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-22300 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
1 | ||
| 84091B - BULB, SATELLITE SWITCH | ||||
| 84999-10320 |
GX81,LX80,MX83,SX80,YX80 ﾊｻﾞｰﾄﾞ |
1 | ||
| 84091B - BULB, SATELLITE SWITCH | ||||
| 84999-10320 |
GX81,LX80,MX83,SX80,YX80 ﾊｻﾞｰﾄﾞ |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30040 |
GX81,LX80,SX80..AVT,GT,SXL,XG,XL 東海理化 |
1 | ||
| 84340-30030 |
GX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL MATSUSHITA |
1 | ||
| 84340-30030 |
GX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL |
1 | ||
| 84340-28010 |
GX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL 東海理化 |
1 | ||
| 84340-22080 |
GX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
SX80..5F..(XG,XL);GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,HTWC,TD) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-22080 |
LX80,SX80,YX80..KYO,XL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22130 |
LX80,SX80,YX80..KYO,XL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22130 |
LX80,SX80,YX80..KYO,XL |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
LX80,SX80,YX80..KYO,XL 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-22130 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22080 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22120 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 84587-22010 | ||||
| 90463-12570 | ||||
| 93567-55016 | ||||

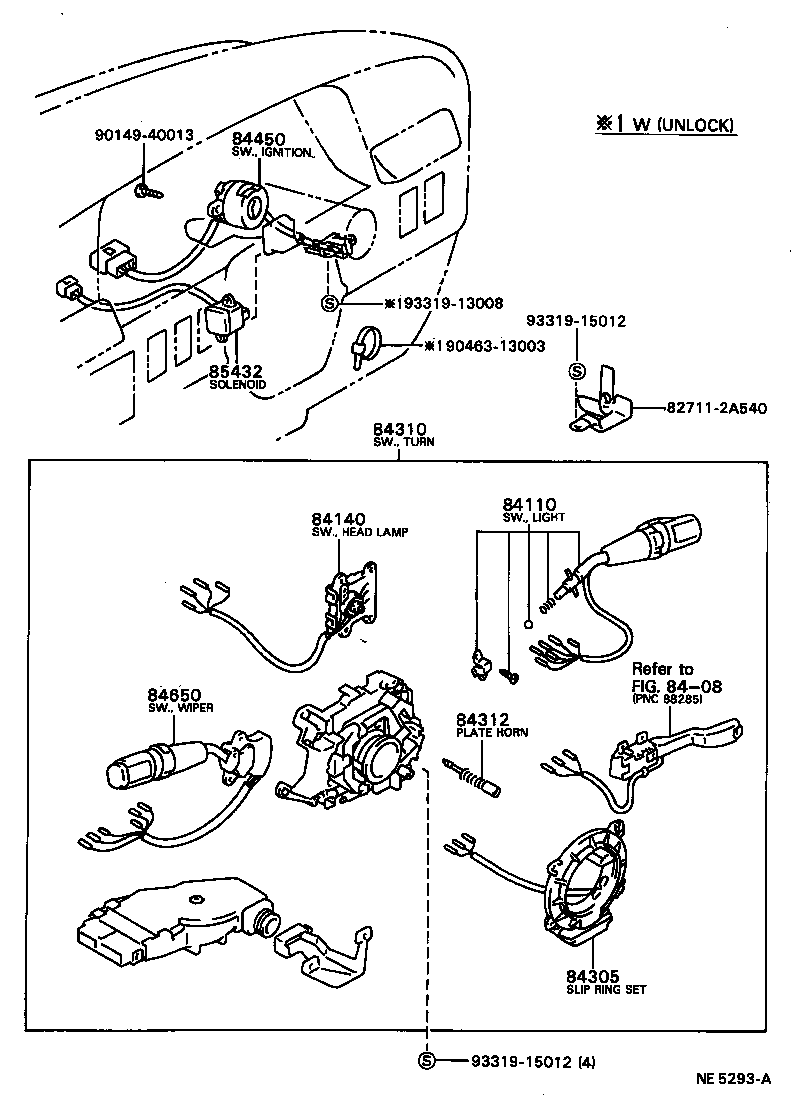

ILLUST NO. 4 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80012 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-22050 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-22600 |
GX81,LX80,SX80..SXL,XG,XL |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
GX81,JZX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWT |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22180 |
LX80,SX80,YX80..KYO,XL |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-22420 |
GX81,LX80,SX80..(AVT,SXL,XG,XL)..(CI,DSL,HTWC,TD) |
1 | ||
| Common parts | ||||
| 82711-2A540 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 8408 | ||||

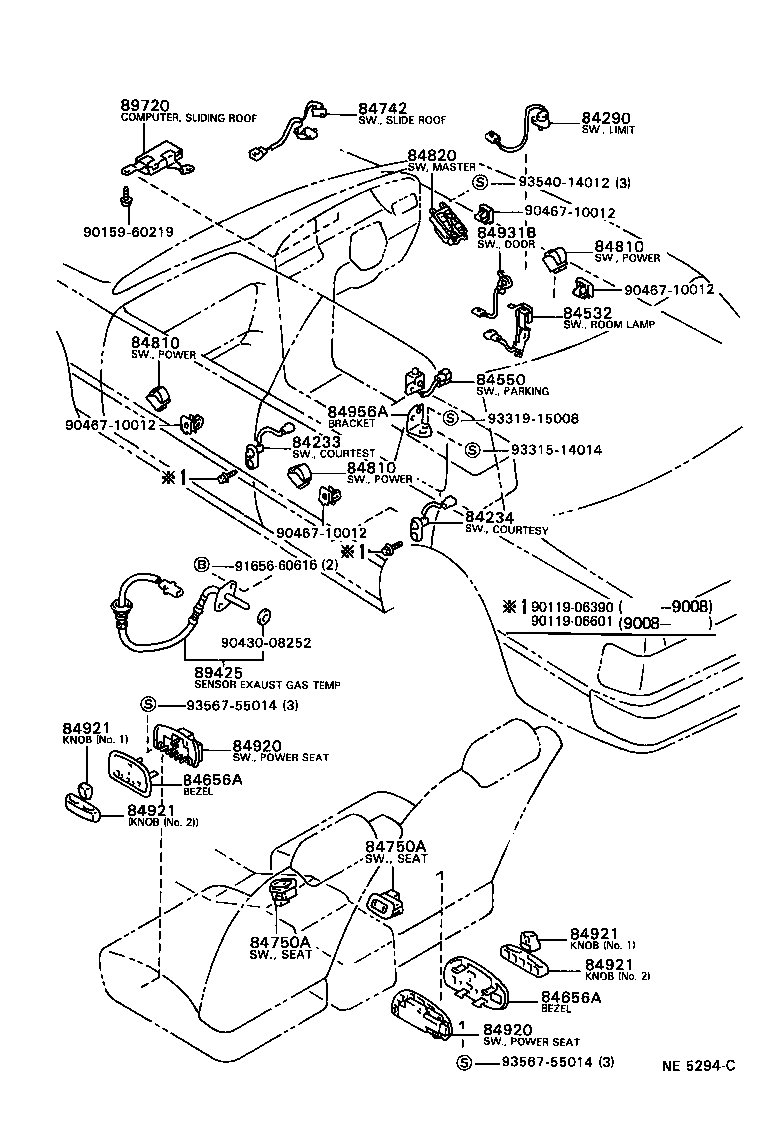

ILLUST NO. 5 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22040 |
GX81,LX80,SX80,YX80 |
2 | ||
| 84231-16060 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-22030 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
SX80..5F..(XG,XL);GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,HTWC,TD) |
1 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-22070 |
SX80..5F..(XG,XL);GX81,LX80,YX80..3FC,5F;LX80,SX80..KYO..(CI,HTWC,TD) |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-29445 |
SX80 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90159-60219 | ||||
| 90430-08252 | ||||
| 90467-10012 | ||||
| 91656-60616 | ||||
| 93315-14014 | ||||
| 93319-15008 | ||||
| 93540-14012 | ||||
| 93567-55014 | ||||

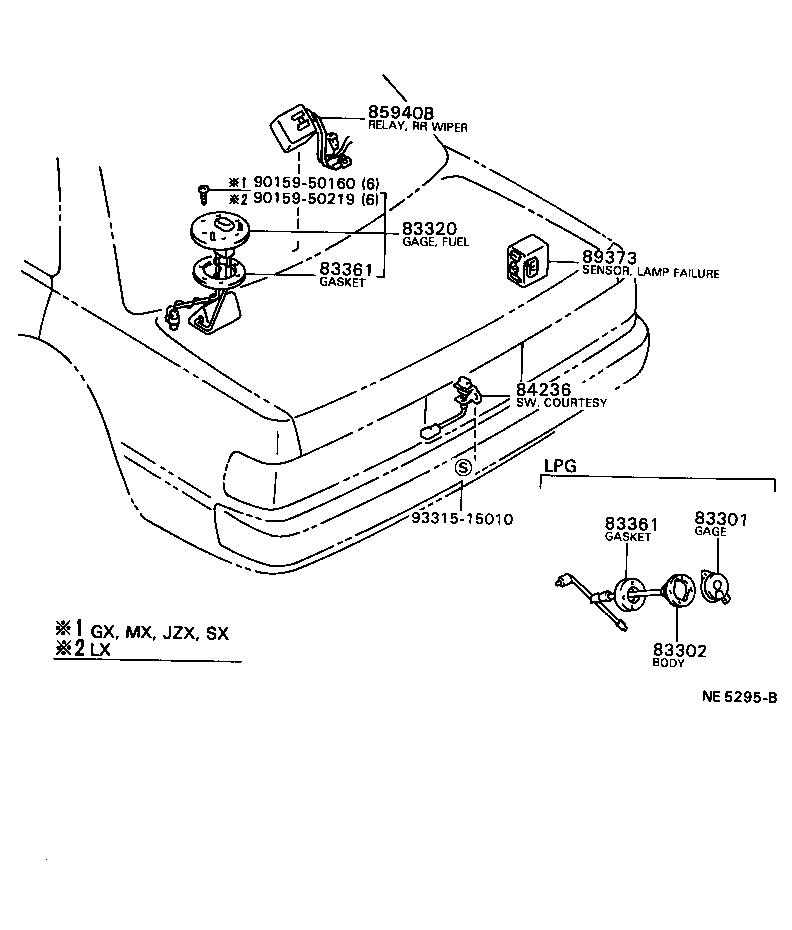

ILLUST NO. 6 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80108 |
GX81,SX80 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-22050 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| Common parts | ||||
| 90159-50160 | ||||
| 90159-50219 | ||||
| 93315-15010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
