SX80-BTMEK (1990)

Toyota Chaser

Production Aug 1990 - Oct 1992
Engine 4SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9210)

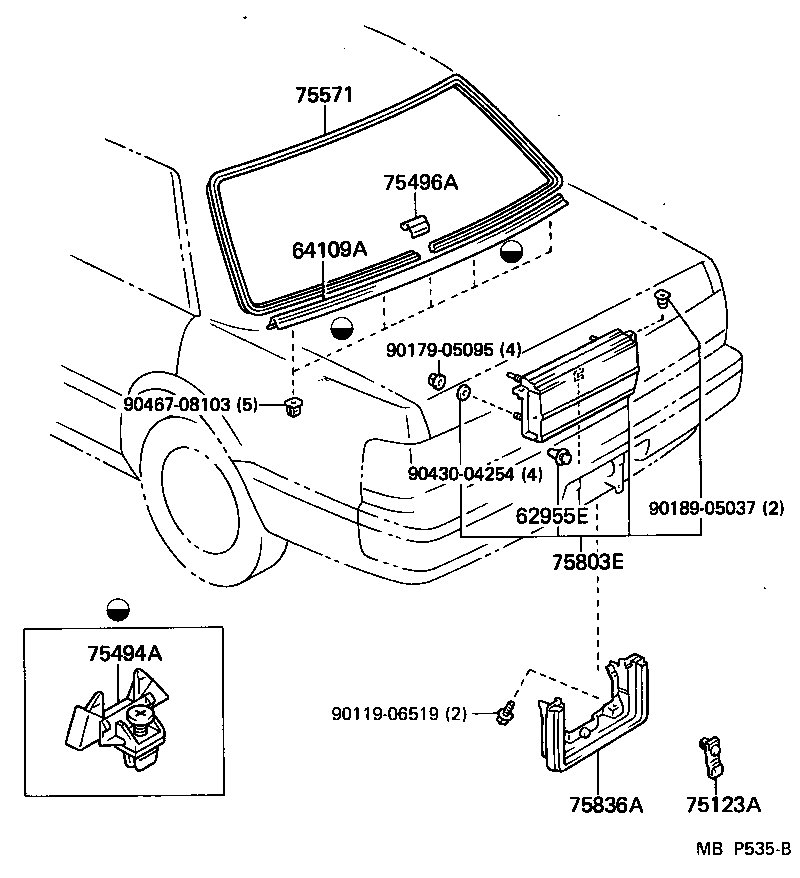

Click highlighted areas on diagram

diagram 62955E 64109A 75123A 75494A 75496A 75571 75803E 75836A 9011906519 9017905095 9018905037 9043004254 9046708103
Part # Description Qty Price
62955E - RETAINER, LOWER BACK FINISH PANEL
62955-20020

GX81,JZX81,LX80,MX83,SX80,YX80

 1
64109A - FRAME SUB-ASSY, BACK, LOWER
64109-91601

GX81,JZX81,LX80,MX83,SX80,YX80

 1
75123A - BRACKET REAR LICENCE PLATE
75123-23010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
75123-91601

GX81,LX80,MX83,SX80,YX80

 2
75494A - CLIP, OUTSIDE MOULDING, NO.3
75494-91601

GX81,JZX81,LX80,MX83,SX80,YX80

 2
75496A - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-91601

GX81,LX80,MX83,SX80,YX80

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-91605

GX81,JZX81,LX80,MX83,SX80,YX80

 1
75803E - MOULDING SUB-ASSY, LOWER BACK PANEL
75803-91606

GX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL

 1
75803-23010

GX81,JZX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL

 1
75836A - MOULDING, REAR LICENCE PLATE
75836-91603

GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
75836-23020

GX81,JZX81,LX80,MX83,SX80,YX80

 1
Common parts
90119-06519
90179-05095
90189-05037
90430-04254
90467-08103
