SX80-BTMEK (1990)
Toyota Chaser

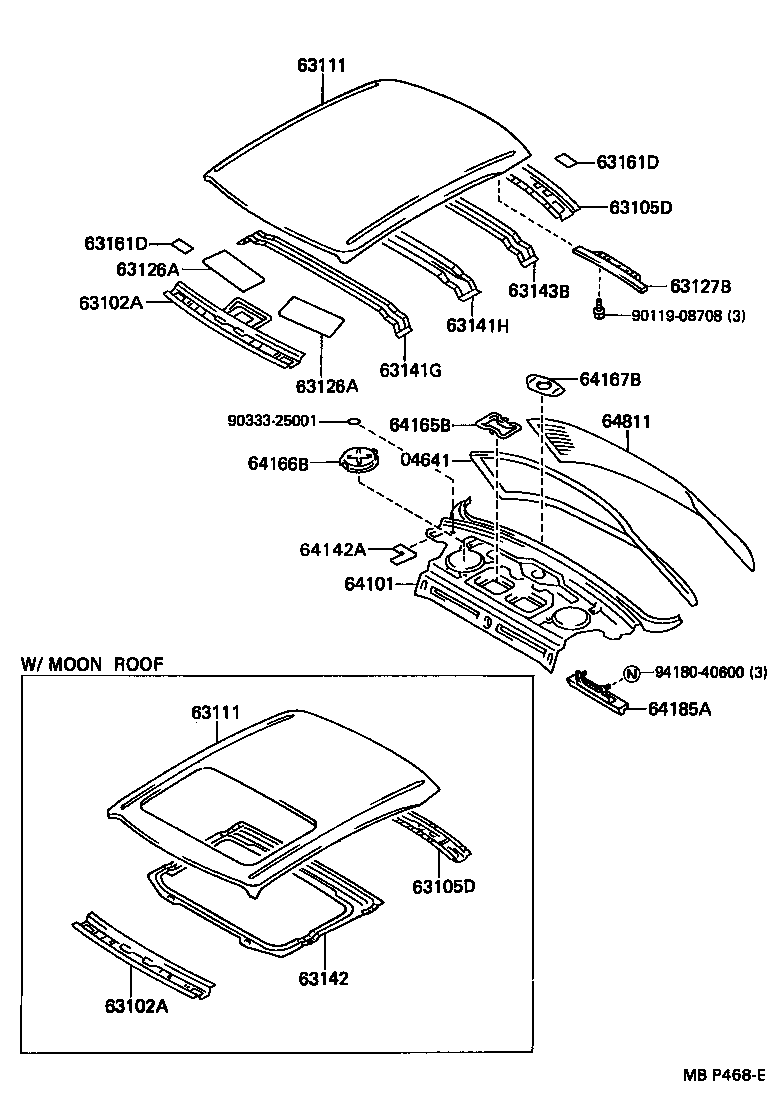

ILLUST NO. 1 OF 2(8808-9210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
LX80,SX80..XG |
1 | ||
| 04562-12010 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 04562-12010 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-22170 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-22170 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-91614 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-91614 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-91614 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-91614 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 63127B - DAMPER, BACK WINDOW UPPER FREME | ||||
| 63127-91601 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 63127-91601 |
GX81..5F;JZX81,LX80,SX80..(GT,XG,XL)..(HTWC,TD,TWT) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63144-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63103-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 63161D - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 63161-22010 |
GX81,LX80,SX80,YX80 |
4 | ||
| 63161D - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 63161-22010 |
GX81,LX80,SX80,YX80 |
4 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 64142A - SILENCER, BACK PANEL, NO.2 | ||||
| 64142-91601 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-91601 |
GX81,LX80,SX80,YX80 |
2 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-22040 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
2 | ||
| 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 | ||||
| 64167-91601 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 64185A - DAMPER, UPPER BACK, NO.1 | ||||
| 64185-91601 |
GX81,JZX81,SX80..GT,XG,XL |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-91609 |
GX81,LX80,MX83,SX80,YX80 *EHTT,厚さ=3.5 |
1 | ||
| 64811-91611 |
GX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG *EHT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-23130 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL *EHTT,厚さ=3.5 |
1 | ||
| 64811-23040 |
LX80,SX80..XG *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ﾗﾌｲ-ﾈｻﾙ-ﾝ |
1 | ||
| 64811-23050 |
LX80,SX80..XG *EHTT,厚さ=3.5,ﾗﾌｲ-ﾈ |
1 | ||
| 64811-23060 |
LX80,SX80..XG *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ﾗﾌｲ-ﾈ |
1 | ||
| 64811-23140 |
GX81,LX80,SX80..SXL,XG *EHT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| Common parts | ||||
| 90119-08708 | ||||
| 90333-25001 | ||||
| 94180-40600 | ||||

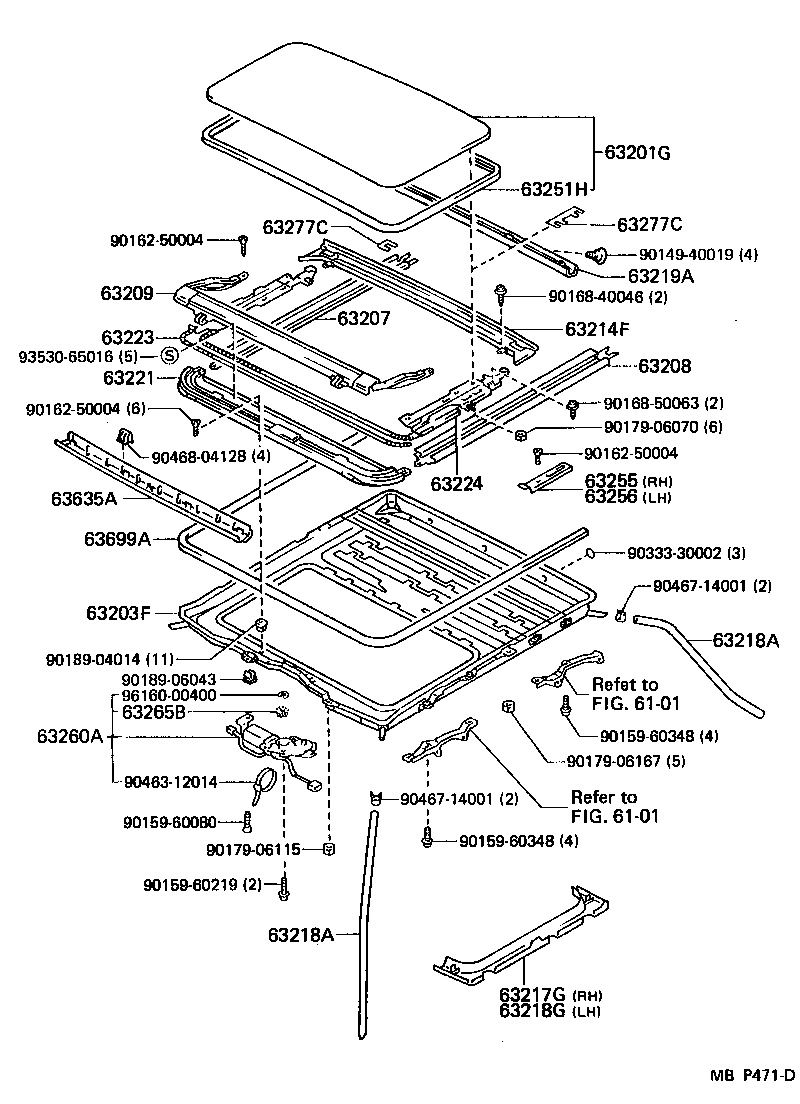

ILLUST NO. 2 OF 2(8808-9210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-40019 | ||||
| 90159-60080 | ||||
| 90159-60219 | ||||
| 90159-60348 | ||||
| 90162-50004 | ||||
| 90168-40046 | ||||
| 90168-50063 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90179-06167 | ||||
| 90189-04014 | ||||
| 90189-06043 | ||||
| 90333-30002 | ||||
| 90463-12014 | ||||
| 90467-14001 | ||||
| 90468-04128 | ||||
| 93530-65016 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 6101 | ||||
