SX70Y-DTMRS (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

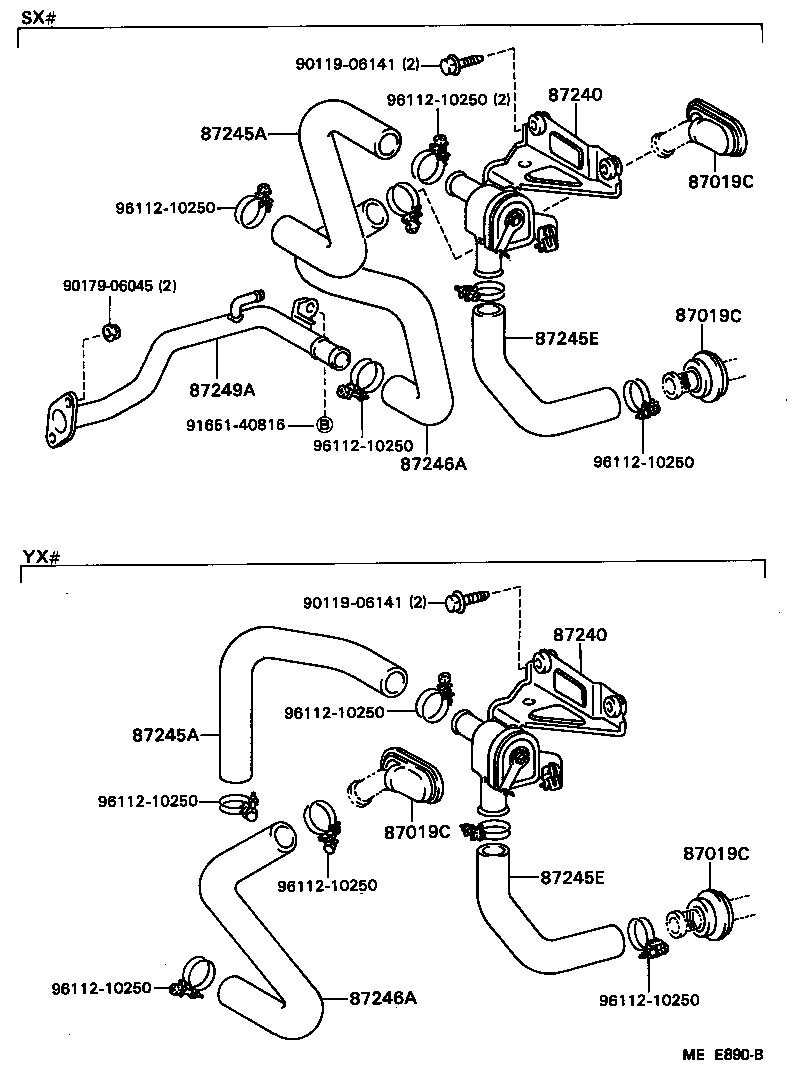

ILLUST NO. 1 OF 2(8408- )SX70,YX7#

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87249A 9011906141 9011906141 9017906045 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01272

GX71,LX70,MX71,SX70,YX7#

OUTLET

 1
90480-36011

GX71,LX70,MX71,SX70,YX7#

INLET

 1
87019C - GROMMET, HEATER HOSE
90480-01272

GX71,LX70,MX71,SX70,YX7#

OUTLET

 1
90480-36011

GX71,LX70,MX71,SX70,YX7#

INLET

 1
87019C - GROMMET, HEATER HOSE
90480-01272

GX71,LX70,MX71,SX70,YX7#

OUTLET

 1
90480-36011

GX71,LX70,MX71,SX70,YX7#

INLET

 1
87019C - GROMMET, HEATER HOSE
90480-01272

GX71,LX70,MX71,SX70,YX7#

OUTLET

 1
90480-36011

GX71,LX70,MX71,SX70,YX7#

INLET

 1
87240 - VALVE ASSY, HEATER WATER
87240-22260

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

HEATER RADIATOR

 1
87240-22310

GX71,LX70,MX71,SX70,YX7#

PANEL HEATER

 1
87240-22261

GX71,LX70,SX70,YX72..KYO,SXL,XG,XL

HEATER RADIATOR

 1
87240 - VALVE ASSY, HEATER WATER
87240-22260

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

HEATER RADIATOR

 1
87240-22310

GX71,LX70,MX71,SX70,YX7#

PANEL HEATER

 1
87240-22261

GX71,LX70,SX70,YX72..KYO,SXL,XG,XL

HEATER RADIATOR

 1
87245A - HOSE, HEATER WATER, INLET A
87245-22760

SX70

 1
87245A - HOSE, HEATER WATER, INLET A
87245-22760

SX70

 1
87245E - HOSE, HEATER WATER, INLET E
87245-22620

GX71,LX70,SX70..CBR,DSL,EFI,TD,TWC

 1
87245E - HOSE, HEATER WATER, INLET E
87245-22620

GX71,LX70,SX70..CBR,DSL,EFI,TD,TWC

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-22770

SX70

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-22770

SX70

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-14270

SX70

 1
Common parts
90119-06141
90179-06045
91651-40816
96112-10250

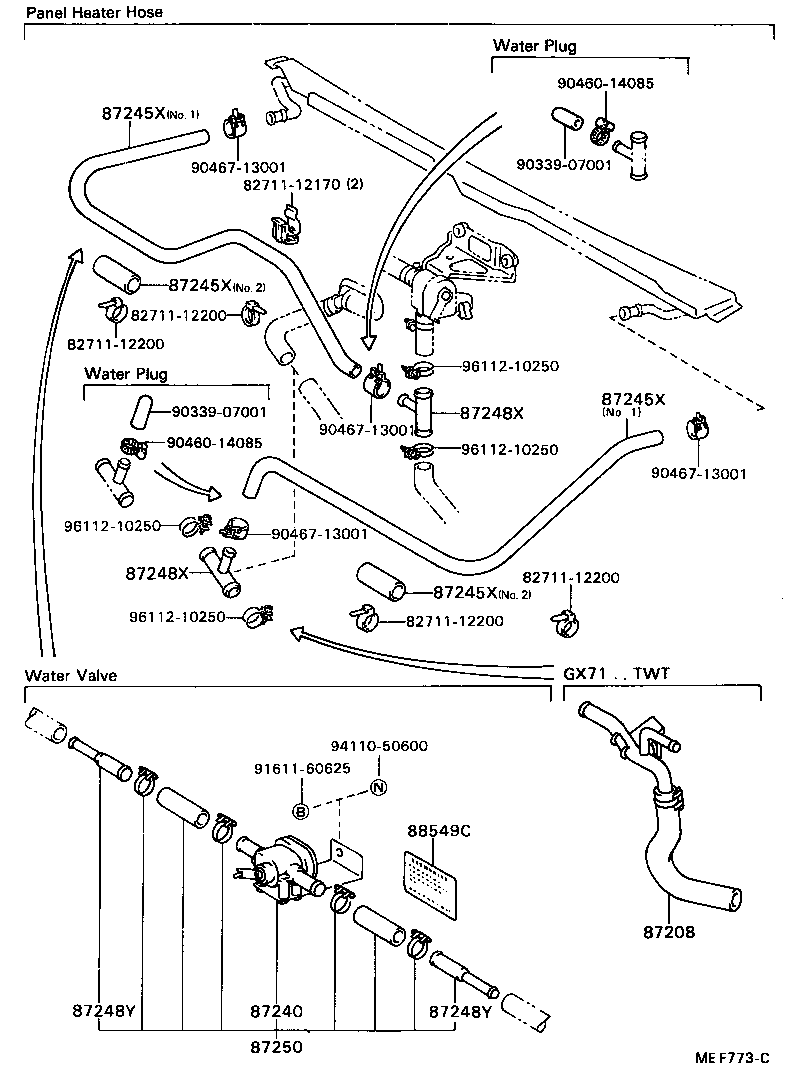

ILLUST NO. 2 OF 2(8408- )

Click highlighted areas on diagram

diagram 8271112170 8271112200 8271112200 8271112200 8271112200 87208 87240 87245X 87245X 87245X 87245X 87248X 87248X 87248Y 87248Y 87250 88549C 9033907001 9033907001 9046014085 9046014085 9046713001 9046713001 9046713001 9046713001 9161160625 9411050600 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-22260

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

HEATER RADIATOR

 1
87240-22310

GX71,LX70,MX71,SX70,YX7#

PANEL HEATER

 1
87240-22261

GX71,LX70,SX70,YX72..KYO,SXL,XG,XL

HEATER RADIATOR

 1
87245X - HOSE, HEATER WATER
90445-23006

GX71,LX70,MX71,SX70,YX7#

長さ=270,NO.2

 1
99556-11300

GX71,LX70,MX71,SX70,YX7#

長さ=300,NO.1

 2
87245X - HOSE, HEATER WATER
90445-23006

GX71,LX70,MX71,SX70,YX7#

長さ=270,NO.2

 1
99556-11300

GX71,LX70,MX71,SX70,YX7#

長さ=300,NO.1

 2
87245X - HOSE, HEATER WATER
90445-23006

GX71,LX70,MX71,SX70,YX7#

長さ=270,NO.2

 1
99556-11300

GX71,LX70,MX71,SX70,YX7#

長さ=300,NO.1

 2
87245X - HOSE, HEATER WATER
90445-23006

GX71,LX70,MX71,SX70,YX7#

長さ=270,NO.2

 1
99556-11300

GX71,LX70,MX71,SX70,YX7#

長さ=300,NO.1

 2
87248X - PIPE, HEATER WATER
87248-20300

GX71,LX70,MX71,SX70,YX7#

 2
87248X - PIPE, HEATER WATER
87248-20300

GX71,LX70,MX71,SX70,YX7#

 2
87248Y - PIPE, HEATER WATER, NO.2
87248-22080

GX71,LX70,MX71,SX70,YX7#

 2
87248Y - PIPE, HEATER WATER, NO.2
87248-22080

GX71,LX70,MX71,SX70,YX7#

 2
87250 - HOSE AND VALVE ASSY
87250-22120

GX71,LX70,MX71,SX70,YX7#

 1
88549C - PLATE, CAUTION
88549-22020

GX71,LX70,MX71,SX70,YX7#

 1
Common parts
82711-12170
82711-12200
90339-07001
90460-14085
90467-13001
91611-60625
94110-50600
96112-10250
