SX70Y-DTMRS (1984)
Toyota Chaser

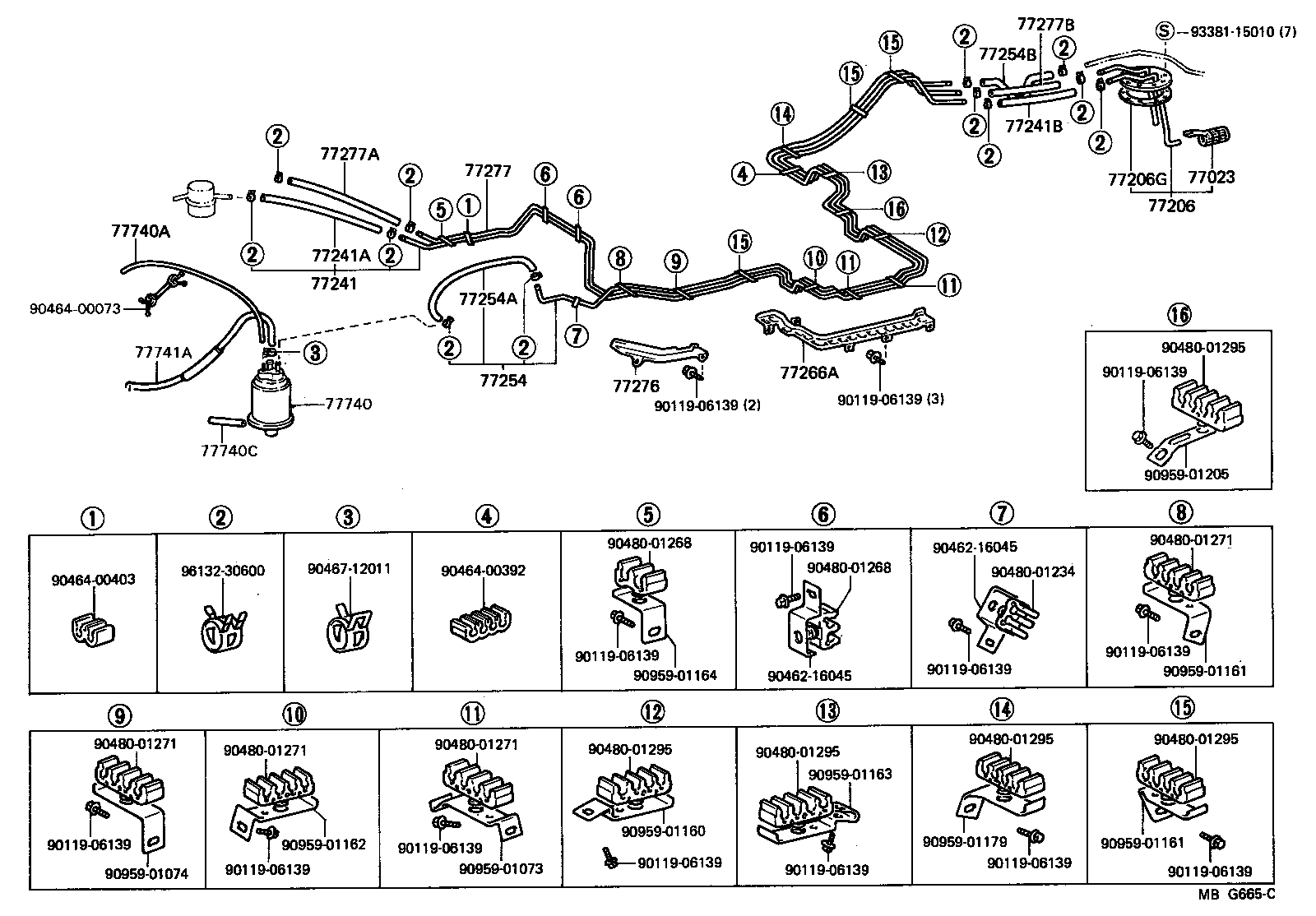

ILLUST NO. 2 OF 2(8408- )SX70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
SX70 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-22170 |
SX70 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
LX70,SX70 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-22120 |
SX70 |
1 | ||
| 77205-22121 |
SX70 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06030 |
SX70 *H,L=240 |
1 | ||
| 95332-06030 |
SX70 *H,L=240 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
SX70 *H,L=210,*H,L=210 |
1 | ||
| 77279-22010 |
SX70 *H,L=210 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77019-22081 |
SX70 |
1 | ||
| 77019-22080 |
SX70 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
SX70 *H,L=240 |
1 | ||
| 95333-06030 |
SX70 *H,L=240 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 77259-22041 |
GX71,LX70,SX70 |
1 | ||
| 77259-22040 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-22040 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-22040 |
LX70,SX70 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-22191 |
SX70 |
1 | ||
| 77255-22190 |
SX70 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06080 |
SX70 *H,L=650 |
1 | ||
| 95332-06080 |
SX70 *H,L=650 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06030 |
LX70,SX70 *H,L=210,*H,L=210 |
1 | ||
| 77419-22020 |
LX70,SX70 *H,L=210 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-12310 |
SX70 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
SX70 *H,L=600,ﾏｰｸ=#* |
1 | ||
| 90999-92003 |
SX70 長さ=600 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12153 |
GX71,MX71,SX70 長さ=230 |
1 | ||
| 77741A - HOSE, FUEL, (FOR VAPOR FEED) | ||||
| 90447-14025 |
SX70 |
1 | ||
| Common parts | ||||
| 90119-06139 | ||||
| 90462-16045 | ||||
| 90464-00073 | ||||
| 90464-00392 | ||||
| 90464-00403 | ||||
| 90467-12011 | ||||
| 90480-01234 | ||||
| 90480-01268 | ||||
| 90480-01271 | ||||
| 90480-01295 | ||||
| 90959-01073 | ||||
| 90959-01074 | ||||
| 90959-01160 | ||||
| 90959-01161 | ||||
| 90959-01162 | ||||
| 90959-01163 | ||||
| 90959-01164 | ||||
| 90959-01179 | ||||
| 90959-01205 | ||||
| 93381-15010 | ||||
| 96132-30600 | ||||
ILLUST NO. 1 OF 2(8408- )GX71,LX70,MX71,SX70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-22020 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-22020 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
GX71,MX71,SX70 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-14010 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-22130 |
GX71,LX70,SX70 |
1 | ||
| 77035-22090 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-29125 |
SX70 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-14030 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-14030 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-22180 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-14090 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77231 - PROTECTOR, INLET TUBE | ||||
| 77277-22050 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-22020 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-22020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-22010 |
LX70,SX70..KYO |
1 | ||
| 77306-22020 |
LX70,SX70..KYO |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
LX70,SX70..KYO |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-22070 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-22030 |
GX71,LX70,SX70 |
1 | ||
| 77377-22030 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-22090 |
GX71,LX70,MX71,SX70 RH |
1 | ||
| 77602-22110 |
GX71,LX70,MX71,SX70 LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-22090 |
GX71,LX70,MX71,SX70 RH |
1 | ||
| 77602-22110 |
GX71,LX70,MX71,SX70 LH |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-22060 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-22060 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-22050 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-22050 |
GX71,LX70,MX71,SX70 |
1 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-22060 |
GX71,LX70,MX71,SX70 |
1 | ||
| Common parts | ||||
| 90119-06074 | ||||
| 90119-06120 | ||||
| 90119-08499 | ||||
| 90119-10086 | ||||
| 90159-50047 | ||||
| 90159-50160 | ||||
| 90159-50161 | ||||
| 90159-60008 | ||||
| 90159-60262 | ||||
| 90179-05020 | ||||
| 90179-06162 | ||||
| 90179-10074 | ||||
| 90183-06006 | ||||
| 90189-06006 | ||||
| 90240-08020 | ||||
| 90460-63008 | ||||
| 90468-14011 | ||||
| 90541-08003 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 6105 | ||||
