SX70Y-DTMRS (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8408- )

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401 67402 67481A 67482A 6748322010 6748422010 67491A 67492A 67831 67832 67837A 67838A 67861 67862 67867A 67868A 68101 68102 68403 68404 68610 68610A 8202 8202 9017906070 9017908001 9017908001 9017908001 9033335001 9054109006 9165140814 9354054010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-22260

GX71,LX70,MX71,SX70,YX7#

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-22260

GX71,LX70,MX71,SX70,YX7#

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-22150

GX71,LX70,MX71,SX70,YX70

 1
67111-22160

GX71,LX70,SX70

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-22170

GX71,LX70,SX70

 1
67112-22160

GX71,LX70,MX71,SX70,YX70

 1
67401 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67401-22130

GX71,LX70,MX71,SX70,YX7#

 1
67402 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67402-22130

GX71,LX70,MX71,SX70,YX7#

 1
67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-22100

GX71,LX70,MX71,SX70,YX7#

W/FENDER MIRROR

 1
67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH
67482-22070

GX71,LX70,MX71,SX70,YX7#

W/FENDER MIRROR

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-22140

GX71,LX70,MX71,SX70,YX7#

COLD SPEC

 1
67831-22120

GX71,LX70,MX71,SX70,YX7#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-22140

GX71,LX70,MX71,SX70,YX7#

COLD SPEC

 1
67832-22030

GX71,LX70,MX71,SX70,YX7#

 1
67837A - SEAL, FRONT DOOR VENT, RH
67837-22010

GX71,LX70,MX71,SX70,YX7#

COLD SPEC

 1
67838A - SEAL, FRONT DOOR VENT, LH
67838-22010

GX71,LX70,MX71,SX70,YX7#

COLD SPEC

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-22160

GX71,LX70,MX71,SX70,YX70

 1
67861-22170

GX71,LX70,MX71,SX70,YX70

COLD SPEC

 1
67861-22210

GX71,LX70,MX71,SX70,YX7#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-22190

GX71,LX70,MX71,SX70,YX7#

 1
67862-22170

GX71,LX70,MX71,SX70,YX70

COLD SPEC

 1
67862-22160

GX71,LX70,MX71,SX70,YX70

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867-22020

GX71,LX70,MX71,SX70,YX7#

RH

 18
67868-22010

GX71,LX70,MX71,SX70,YX7#

LH

 18
67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
67869-30020

GX71,LX70,MX71,SX70,YX7#

 4
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-22310

GX71,LX70,MX71,SX70,YX70

*TT,厚さ=5.0,W/*FM,*TT,T=5.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-22320

GX71,LX70,MX71,SX70,YX70

*TT,厚さ=5.0,W/*FM,*TT,T=5.0

 1
68403 - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH
67403-22030

GX71,LX70,MX71,SX70,YX7#

 1
68404 - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH
67404-22030

GX71,LX70,MX71,SX70,YX7#

 1
68610 - CHECK ASSY, FRONT DOOR
68610-22030

GX71,LX70,MX71,SX70,YX7#

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-22020

GX71,LX70,MX71,SX70,YX7#

 2
68617-90A00

GX71,LX70,MX71,SX70,YX70

 2
Common parts
67483-22010
67484-22010
90179-06070
90179-08001
90333-35001
90541-09006
91651-40814
93540-54010
Linked diagrams
8202

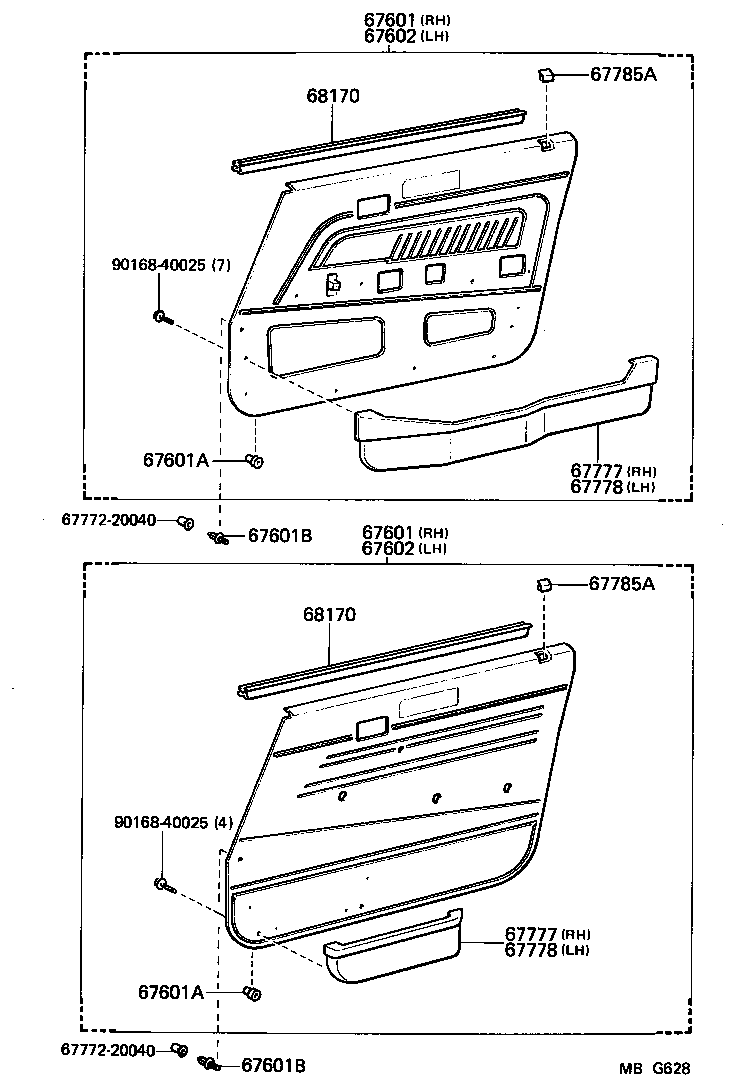

ILLUST NO. 2 OF 2(8408- )

Click highlighted areas on diagram

diagram 67601 67601 67601A 67601A 67601B 67601B 67602 67602 6777220040 6777220040 67777 67777 67778 67778 67785A 67785A 68170 68170 9016840025 9016840025
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9161403

SX70,YX70..KYO

GRAY,COOL GRAY,TRIM1#

 1
67610-9161404

SX70,YX72..KYO

BLUE,DARK BEIGE,TRIM8#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9161403

SX70,YX70..KYO

GRAY,COOL GRAY,TRIM1#

 1
67610-9161404

SX70,YX72..KYO

BLUE,DARK BEIGE,TRIM8#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-30060

GX71,LX70,MX71,SX70,YX7#

BLUE

 18
67771-22010

GX71,LX70,MX71,SX70,YX7#

BLACK

 8
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-30060

GX71,LX70,MX71,SX70,YX7#

BLUE

 18
67771-22010

GX71,LX70,MX71,SX70,YX7#

BLACK

 8
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-0704313

GX71,LX70,MX71,SX70,YX70

GRAY,COOL GRAY,TRIM1#

 2
90467-0704344

GX71,LX70,SX70,YX72

BLUE,DARK BLUE,TRIM8#

 2
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-0704313

GX71,LX70,MX71,SX70,YX70

GRAY,COOL GRAY,TRIM1#

 2
90467-0704344

GX71,LX70,SX70,YX72

BLUE,DARK BLUE,TRIM8#

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9160703

LX70,SX70,YX70..KYO

GRAY,COOL GRAY,TRIM1#

 1
67620-9160704

LX70,SX70,YX72..KYO

BLUE,DARK BLUE,TRIM8#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9160703

LX70,SX70,YX70..KYO

GRAY,COOL GRAY,TRIM1#

 1
67620-9160704

LX70,SX70,YX72..KYO

BLUE,DARK BLUE,TRIM8#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-2204054

LX70,SX70,YX72..KYO,XL

BLUE,DARK BLUE,TRIM8#

 1
67777-2204043

LX70,SX70,YX70..KYO,XL

GRAY,COOL GRAY,TRIM1#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-2204054

LX70,SX70,YX72..KYO,XL

BLUE,DARK BLUE,TRIM8#

 1
67777-2204043

LX70,SX70,YX70..KYO,XL

GRAY,COOL GRAY,TRIM1#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-2203043

LX70,SX70,YX70..KYO,XL

GRAY,COOL GRAY,TRIM1#

 1
67778-2203054

LX70,SX70,YX72..KYO,XL

BLUE,DARK BLUE,TRIM8#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-2203043

LX70,SX70,YX70..KYO,XL

GRAY,COOL GRAY,TRIM1#

 1
67778-2203054

LX70,SX70,YX72..KYO,XL

BLUE,DARK BLUE,TRIM8#

 1
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
67785-2203003

GX71,LX70,MX71,SX70,YX70

GRAY,COOL GRAY,TRIM1#

 2
67785-2203004

GX71,LX70,SX70,YX72

BLUE,DARK BLUE,TRIM8#

 2
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
67785-2203003

GX71,LX70,MX71,SX70,YX70

GRAY,COOL GRAY,TRIM1#

 2
67785-2203004

GX71,LX70,SX70,YX72

BLUE,DARK BLUE,TRIM8#

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-22080

GX71,LX70,MX71,SX70,YX7#

LH,W/FENDER MIRROR

 1
68170-22130

GX71,LX70,MX71,SX70,YX7#

RH,W/FENDER MIRROR

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-22080

GX71,LX70,MX71,SX70,YX7#

LH,W/FENDER MIRROR

 1
68170-22130

GX71,LX70,MX71,SX70,YX7#

RH,W/FENDER MIRROR

 1
Common parts
67772-20040
90168-40025
