SX70-DTPNS (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

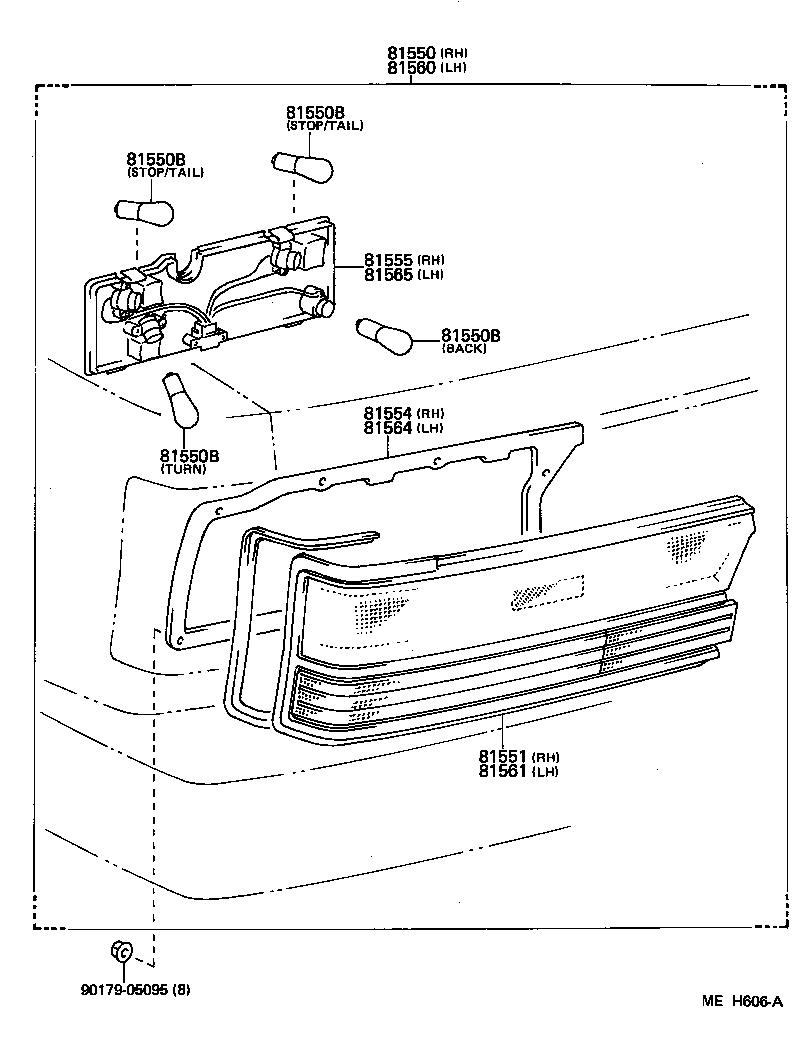

(8408-8608)

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80236

GX71,LX70,MX71,SX70,YX70

 1
81550-91608

GX71,LX70,SX70,YX72

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GX71,LX70,MX71,SX70,YX7#

12V 21/5W,12V 21/5W(STOP/TAIL)

 4
99132-11230

GX71,LX70,MX71,SX70,YX7#

12V 23W,12V 23W(TURN,BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GX71,LX70,MX71,SX70,YX7#

12V 21/5W,12V 21/5W(STOP/TAIL)

 4
99132-11230

GX71,LX70,MX71,SX70,YX7#

12V 23W,12V 23W(TURN,BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GX71,LX70,MX71,SX70,YX7#

12V 21/5W,12V 21/5W(STOP/TAIL)

 4
99132-11230

GX71,LX70,MX71,SX70,YX7#

12V 23W,12V 23W(TURN,BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GX71,LX70,MX71,SX70,YX7#

12V 21/5W,12V 21/5W(STOP/TAIL)

 4
99132-11230

GX71,LX70,MX71,SX70,YX7#

12V 23W,12V 23W(TURN,BACK)

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-91607

GX71,LX70,MX71,SX70,YX70

 1
81551-91608

GX71,LX70,SX70,YX72

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-91607

GX71,LX70,MX71,SX70,YX70

 1
81554-91608

GX71,LX70,SX70,YX72

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-91607

GX71,LX70,MX71,SX70,YX70

 1
81555-91608

GX71,LX70,SX70,YX72

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-91610

GX71,LX70,SX70,YX72

 1
81560-80242

GX71,LX70,MX71,SX70,YX70

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-91609

GX71,LX70,MX71,SX70,YX70

 1
81561-91610

GX71,LX70,SX70,YX72

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-91607

GX71,LX70,MX71,SX70,YX70

 1
81554-91608

GX71,LX70,SX70,YX72

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-91610

GX71,LX70,SX70,YX72

 1
81565-91609

GX71,LX70,MX71,SX70,YX70

 1
Common parts
90179-05095

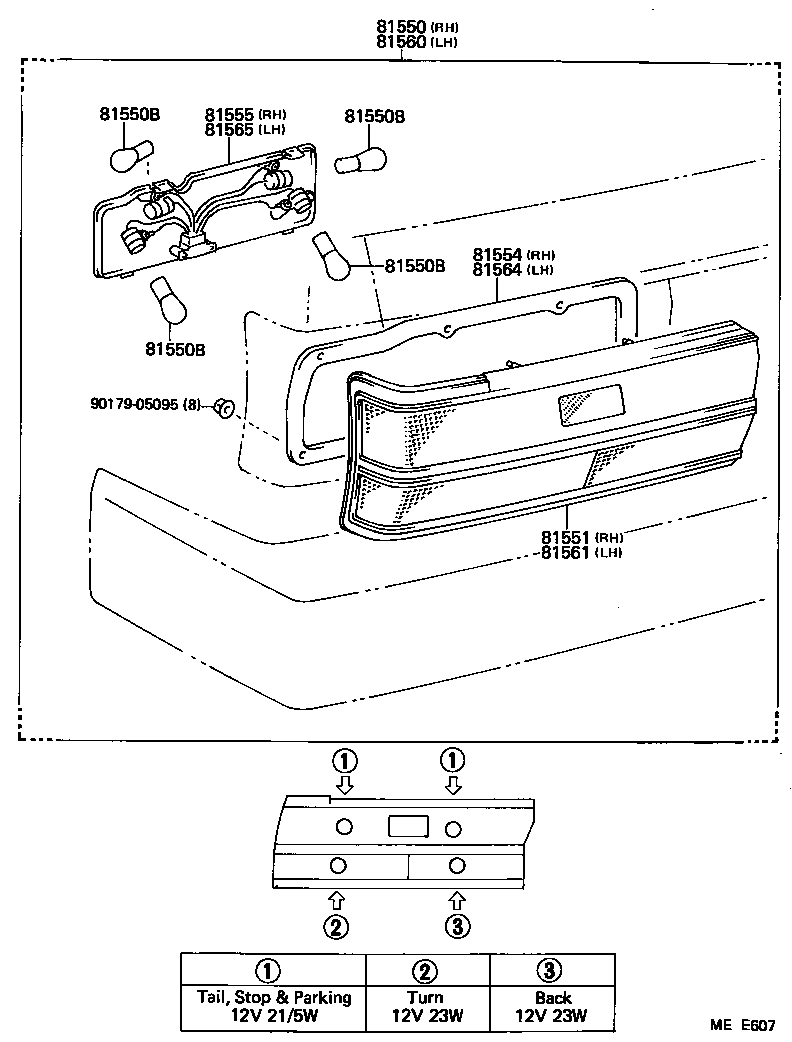

(8608- )

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80236

GX71,LX70,MX71,SX70,YX70

 1
81550-91608

GX71,LX70,SX70,YX72

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GX71,LX70,MX71,SX70,YX7#

12V 21/5W,12V 21/5W(STOP/TAIL)

 4
99132-11230

GX71,LX70,MX71,SX70,YX7#

12V 23W,12V 23W(TURN,BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GX71,LX70,MX71,SX70,YX7#

12V 21/5W,12V 21/5W(STOP/TAIL)

 4
99132-11230

GX71,LX70,MX71,SX70,YX7#

12V 23W,12V 23W(TURN,BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GX71,LX70,MX71,SX70,YX7#

12V 21/5W,12V 21/5W(STOP/TAIL)

 4
99132-11230

GX71,LX70,MX71,SX70,YX7#

12V 23W,12V 23W(TURN,BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GX71,LX70,MX71,SX70,YX7#

12V 21/5W,12V 21/5W(STOP/TAIL)

 4
99132-11230

GX71,LX70,MX71,SX70,YX7#

12V 23W,12V 23W(TURN,BACK)

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-91607

GX71,LX70,MX71,SX70,YX70

 1
81551-91608

GX71,LX70,SX70,YX72

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-91607

GX71,LX70,MX71,SX70,YX70

 1
81554-91608

GX71,LX70,SX70,YX72

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-91607

GX71,LX70,MX71,SX70,YX70

 1
81555-91608

GX71,LX70,SX70,YX72

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-91610

GX71,LX70,SX70,YX72

 1
81560-80242

GX71,LX70,MX71,SX70,YX70

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-91609

GX71,LX70,MX71,SX70,YX70

 1
81561-91610

GX71,LX70,SX70,YX72

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-91607

GX71,LX70,MX71,SX70,YX70

 1
81554-91608

GX71,LX70,SX70,YX72

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-91610

GX71,LX70,SX70,YX72

 1
81565-91609

GX71,LX70,MX71,SX70,YX70

 1
Common parts
90179-05095
