SX70-DTPNS (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

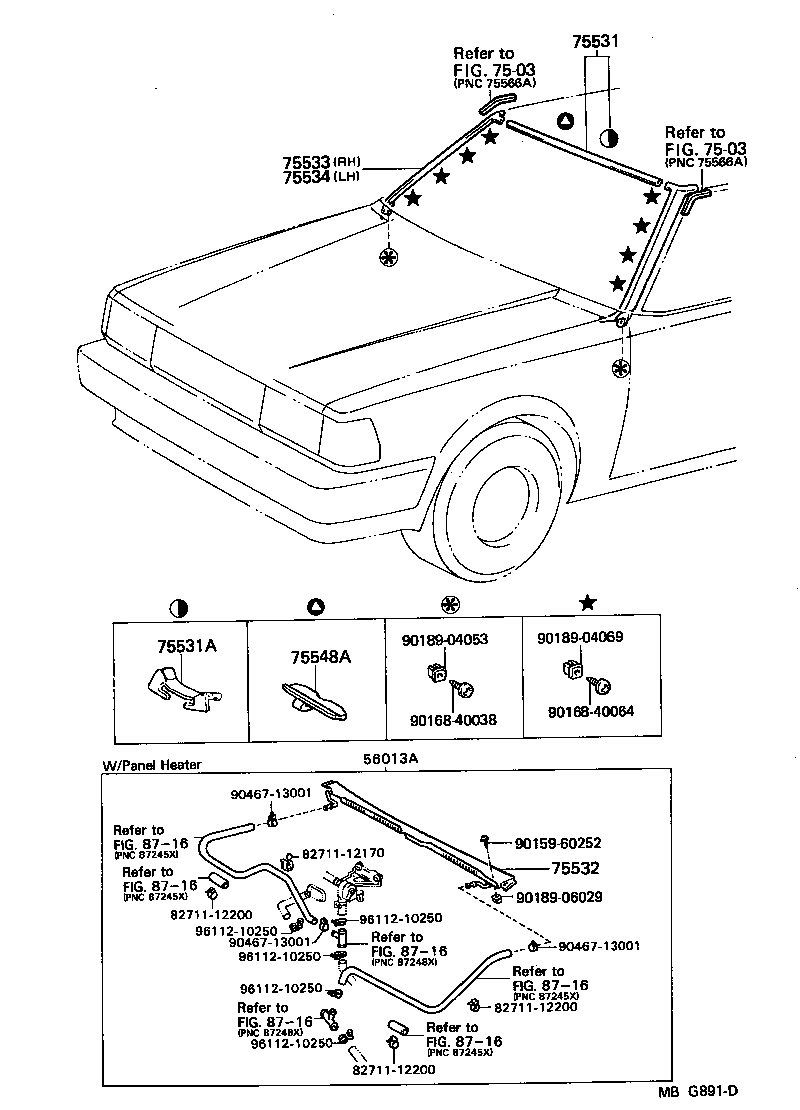

Click highlighted areas on diagram

diagram 56013A 7503 7503 75531 75531A 75532 75533 75534 75548A 8271112170 8271112200 8271112200 8271112200 8716 8716 8716 8716 8716 8716 9015960252 9016840038 9016840064 9018904053 9018904069 9018906029 9046713001 9046713001 9046713001 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
56013A - MOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER
56013-22020

GX71,LX70,MX71,SX70,YX7#..AVT,KYO,SXL,XG,XL

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-22100

GX71,LX70,MX71,SX70,YX7#

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-22040

GX71,LX70,MX71,SX70,YX7#

 5
75532 - MOULDING, WINDSHIELD, LOWER
75504-22050

GX71,LX70,MX71,SX70,YX70..AVT,KYO,SXL,XG,XL

W/PANEL HEATER

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
76003-22010

GX71,LX70,MX71,SX70,YX7#

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
76004-22010

GX71,LX70,MX71,SX70,YX7#

 1
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-22101

GX71,LX70,SX70,YX72

 6
75548-22100

GX71,LX70,MX71,SX70,YX7#

 6
Common parts
82711-12170
82711-12200
90159-60252
90168-40038
90168-40064
90189-04053
90189-04069
90189-06029
90467-13001
96112-10250
Linked diagrams
7503
8716
