SX70-DTPNS (1984)
Toyota Chaser

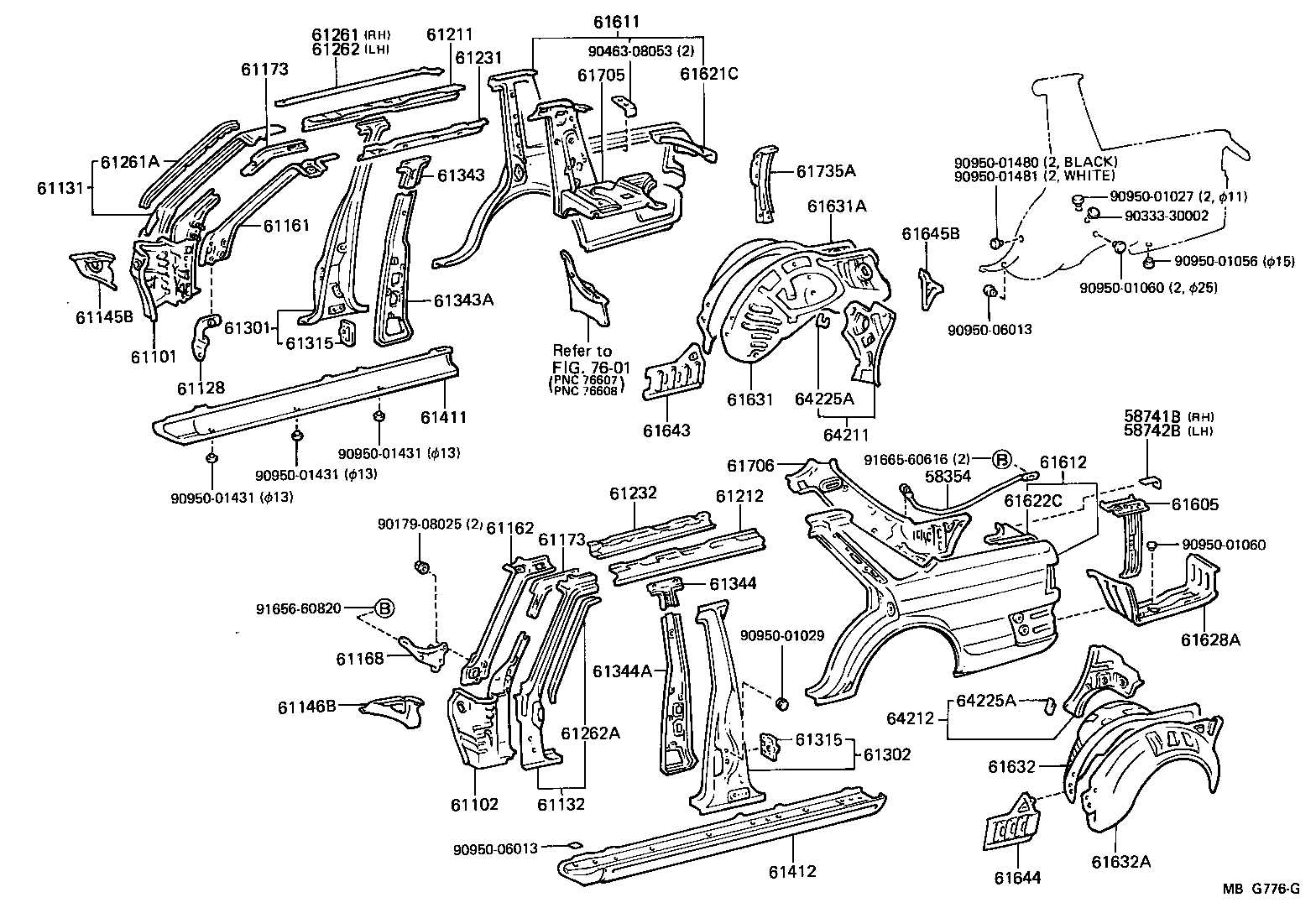

ILLUST NO. 1 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-22100 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-22120 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61125-22020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-22908 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 61131-22909 |
GX71,LX70,SX70,YX7# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-22907 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 61132-22908 |
GX71,LX70,SX70,YX7# |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-22050 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-22050 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-22110 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-22110 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61168 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-22080 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-22070 |
GX71,LX70,MX71,SX70,YX7# RH |
1 | ||
| 61174-22060 |
GX71,LX70,MX71,SX70,YX7# LH |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-22070 |
GX71,LX70,MX71,SX70,YX7# RH |
1 | ||
| 61174-22060 |
GX71,LX70,MX71,SX70,YX7# LH |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-22090 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-22090 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-22180 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-22170 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-91606 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-22031 |
GX71,LX70,SX70,YX7# |
1 | ||
| 61263-22030 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-91606 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-22040 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 61264-22041 |
GX71,LX70,SX70,YX7# |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-91195 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-91195 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61315-22020 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61315-22020 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-22110 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-22908 |
GX71,LX70,SX70,YX72 |
1 | ||
| 61343-22904 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-22130 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-22908 |
GX71,LX70,SX70,YX72 |
1 | ||
| 61344-22904 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-22030 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61401-22040 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-22040 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 61402-22030 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61605 - BRACE SUB-ASSY, QUARTER PANEL, LH | ||||
| 61609-91603 |
GX71,LX70,MX71,SX70 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-91642 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-22929 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-91601 |
GX71,LX70,SX70,YX72 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-91601 |
GX71,LX70,SX70,YX72 |
1 | ||
| 61628A - EXTENSION, QUARTER PANEL, LOWER LH | ||||
| 61628-22020 |
GX71,LX70,MX71,SX70 |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61607-22914 |
LX70,SX70 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-22905 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 61631-22906 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61608-22913 |
LX70,SX70,YX7# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-22090 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 61632-22100 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61641-22020 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 61641-22030 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61642-22030 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61642-22020 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-22020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-91694 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-91608 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-91602 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-22901 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-22901 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 64225A - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-22020 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 64225A - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-22020 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| Common parts | ||||
| 90179-08025 | ||||
| 90333-30002 | ||||
| 90463-08053 | ||||
| 90950-01027 | ||||
| 90950-01029 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01431 | ||||
| 90950-01480 | ||||
| 90950-01481 | ||||
| 90950-06013 | ||||
| 91656-60820 | ||||
| 91665-60616 | ||||
| Linked diagrams | ||||
| 7601 | ||||

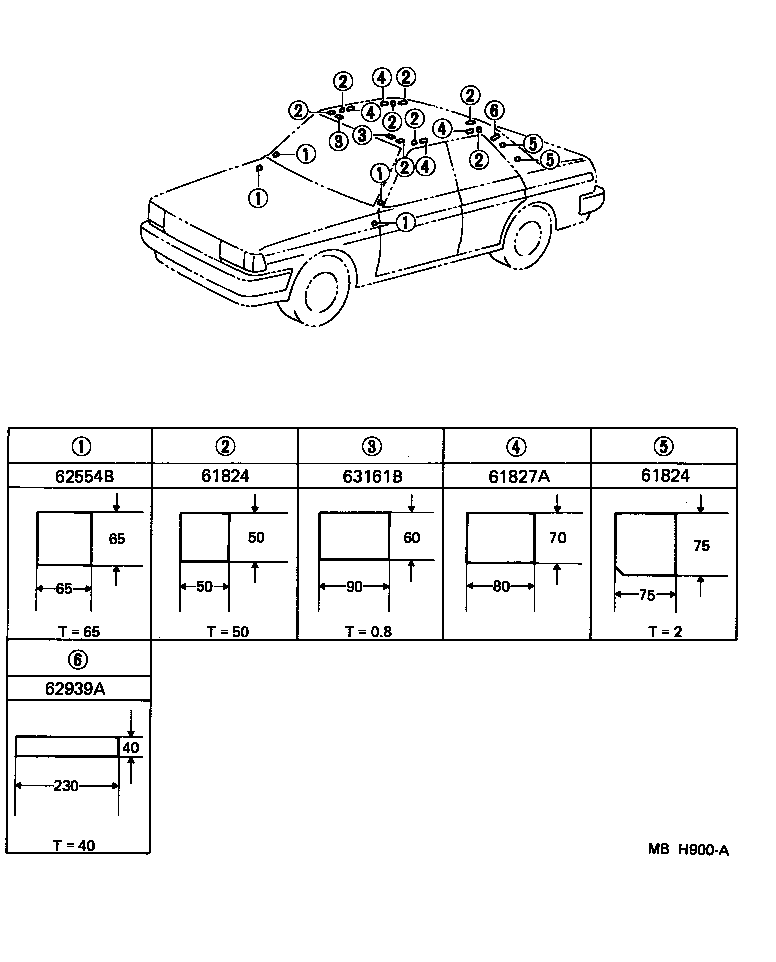

ILLUST NO. 2 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12010 |
GX71,LX70,MX71,SX70,YX7# 50X50,T=50 |
8 | ||
| 61824-91601 |
GX71,LX70,MX71,SX70,YX7# 75X75,T=2 |
4 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12010 |
GX71,LX70,MX71,SX70,YX7# 50X50,T=50 |
8 | ||
| 61824-91601 |
GX71,LX70,MX71,SX70,YX7# 75X75,T=2 |
4 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-22021 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GX71,LX70,MX71,SX70,YX7# |
3 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-91601 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 63161B - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 63161-22010 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
