SX70-DTMNS (1984)
Toyota Chaser
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

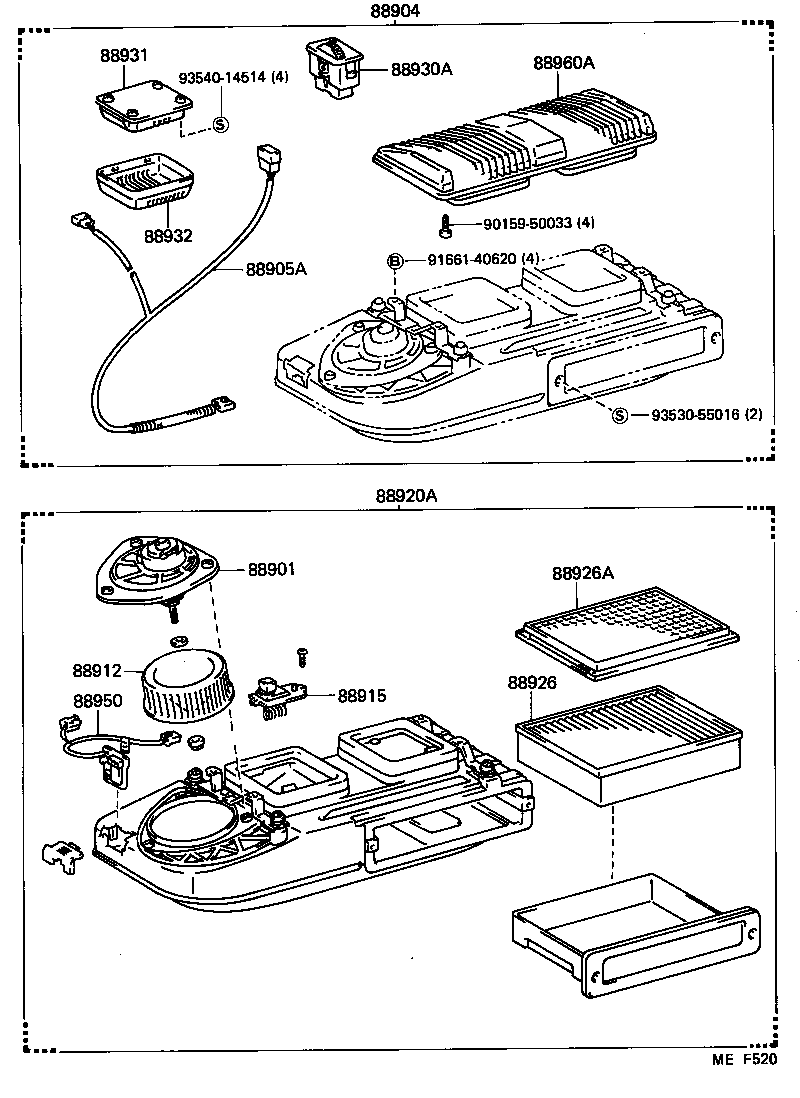

| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 88901-22020 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 88904 - FITTING KIT, AIR PURIFIER | ||||
| 88904-2204103 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL W/O SMOKE SENSOR,GRAY,GRAY,TRIM1# |
1 | ||
| 88904-2204003 |
GX71,LX70,MX71,SX70..AVT,SXL,XG,XL W/O SMOKE SENSOR,GRAY,GRAY,TRIM1# |
1 | ||
| 88904-2204105 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL W/O SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2204202 |
SX70..XL W/O SMOKE SEN,MAROON,XL EXTRA,MAROON,TRIM3# |
1 | ||
| 88904-2204204 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL W/O SMOKE SENSOR,BLUE,BLUE,TRIM8# |
1 | ||
| 88904-2204005 |
GX71,LX70,MX71,SX70..AVT,SXL,XG,XL W/O SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2204205 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL W/O SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2 | ||||
| 88905-22030 |
GX71,LX70,MX71,SX70..AVT,SXL,XG,XL W/O SMOKE SENSOR |
1 | ||
| 88905-22031 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL W/O SMOKE SENSOR |
1 | ||
| 88912 - FAN, AIR PURIFIER | ||||
| 88912-22010 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 88915 - RESISTOR, AIR PURIFIER | ||||
| 88915-22010 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-22030 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL W/O SMOKE SENSOR |
1 | ||
| 88920-22031 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL W/O SMOKE SENSOR |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-22010 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 88926-24010 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 88926A - ODOR, CARTRIDGE | ||||
| 88927-24010 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 88926-22020 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-22050 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL W/O SMOKE SENSOR |
1 | ||
| 88930-22051 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL W/O SMOKE SENSOR |
1 | ||
| 88950 - AMPLIFIER ASSY, AIR PURIFIER | ||||
| 88950-24020 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL W/O SMOKE SENSOR |
1 | ||
| 88960A - GRILLE ASSY, AIR PURIFIER | ||||
| 88960-2205005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 88960-2205102 |
SX70..XL MAROON,XL EXTRA,MAROON,TRIM3# |
1 | ||
| 88960-2205003 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-50033 | ||||
| 91661-40620 | ||||
| 93530-55016 | ||||
| 93540-14514 | ||||
